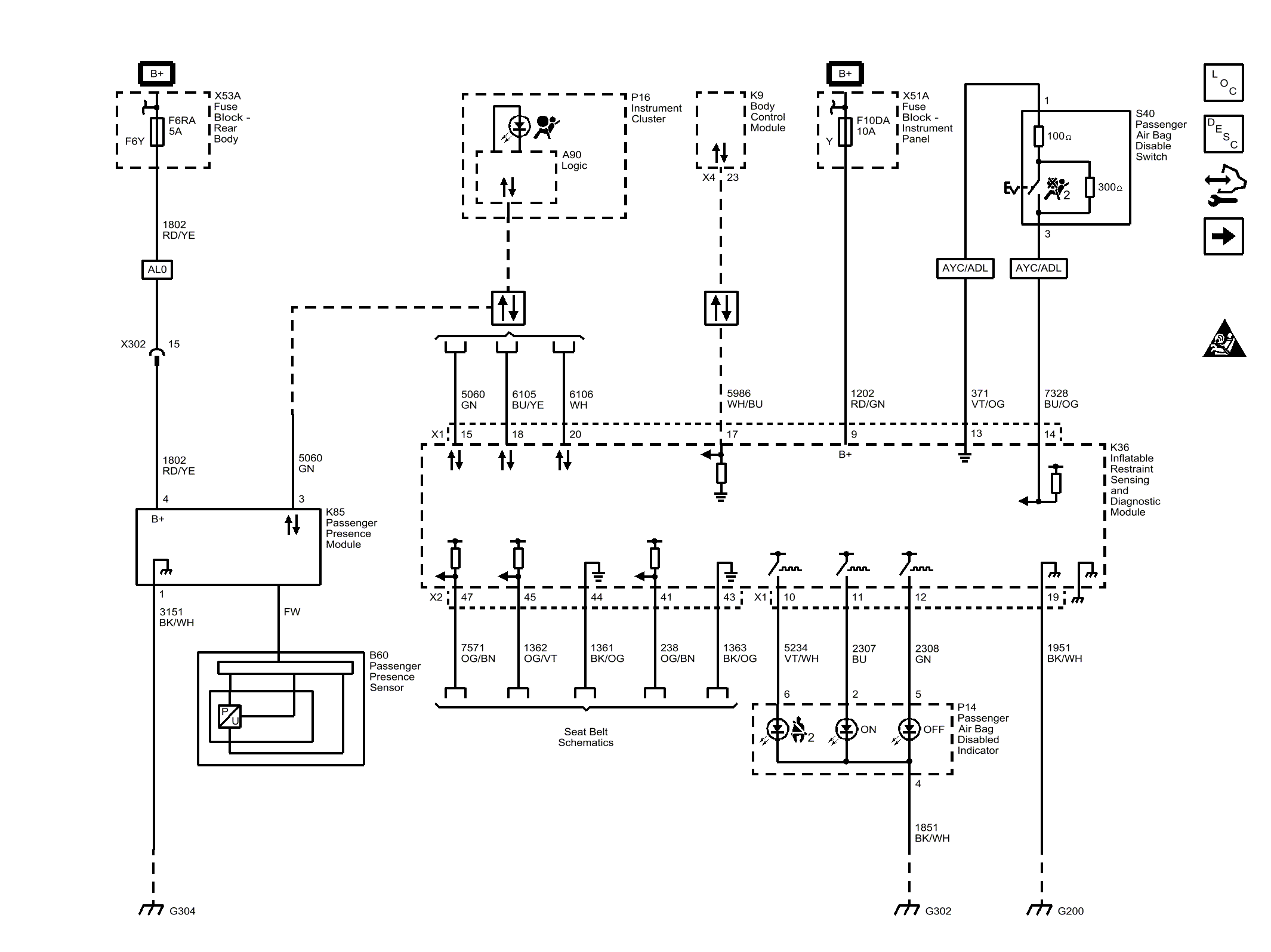

Power, Ground, Passenger Presence, Disable Switch, Serial Data and Indicators (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
