Removal Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
When replacing either a steering wheel or driver airbag, it is mandatory that both components are sourced from the same country. Parts from different countries are not interchangeable and may cause a malfunction of the air bag system causing personal injury.
WARNING:
WARNING:
Refer to SIR Warning .
- Disable the supplemental inflatable restraint (SIR) system. SIR Disabling and Enabling .
- Lower the steering column and move to the maximum rear end position.
- Rotate the steering wheel 180 degrees.

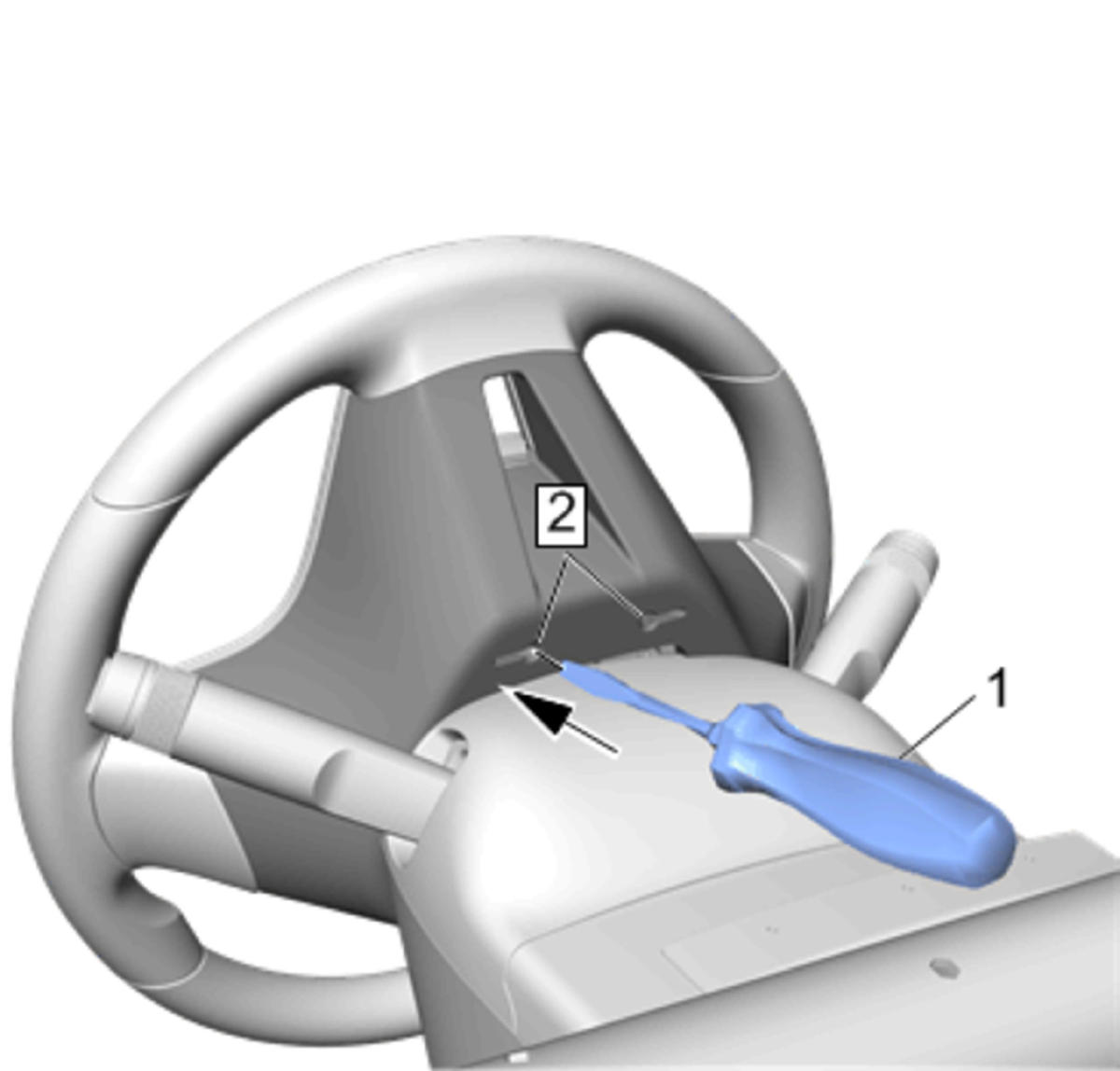

- Insert a small flathead screwdriver (1) diagonally through the service openings (2) on the back side of the steering wheel.

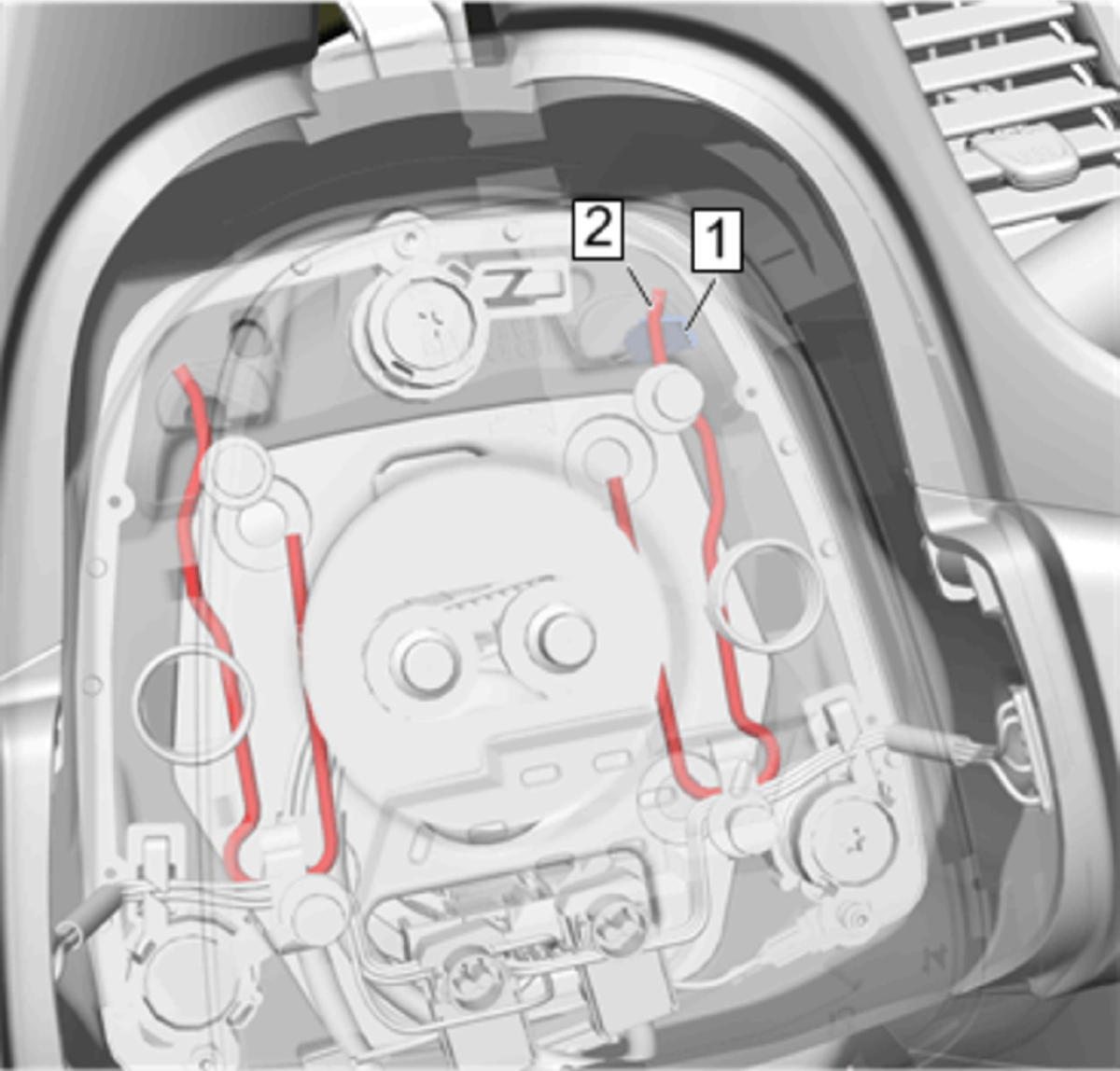

- The tip of the screwdriver should be in the right side of the spring fastener. (2)

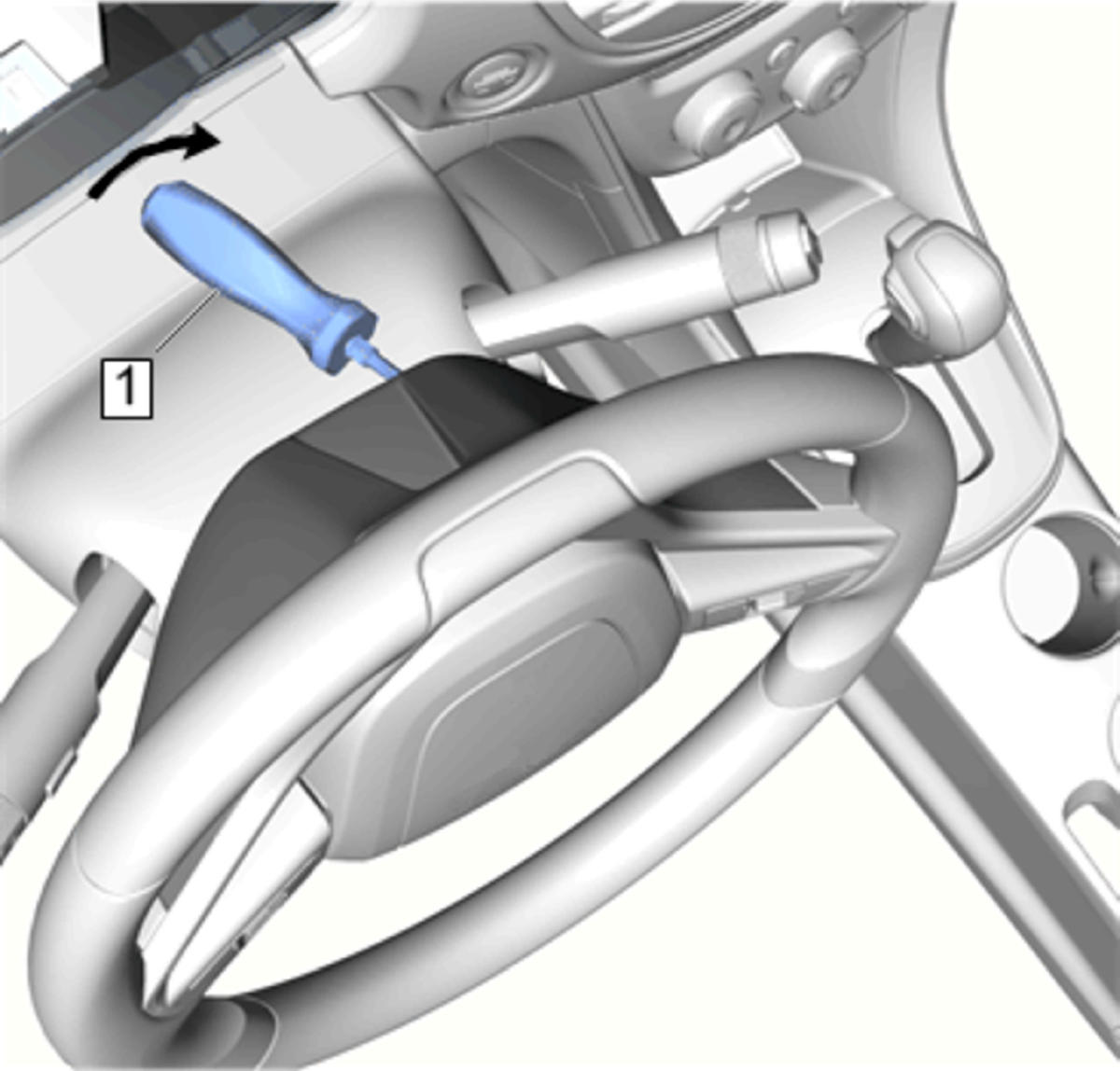

- Pull the screwdriver in the opposite direction of the steering column to push the spring fastener.

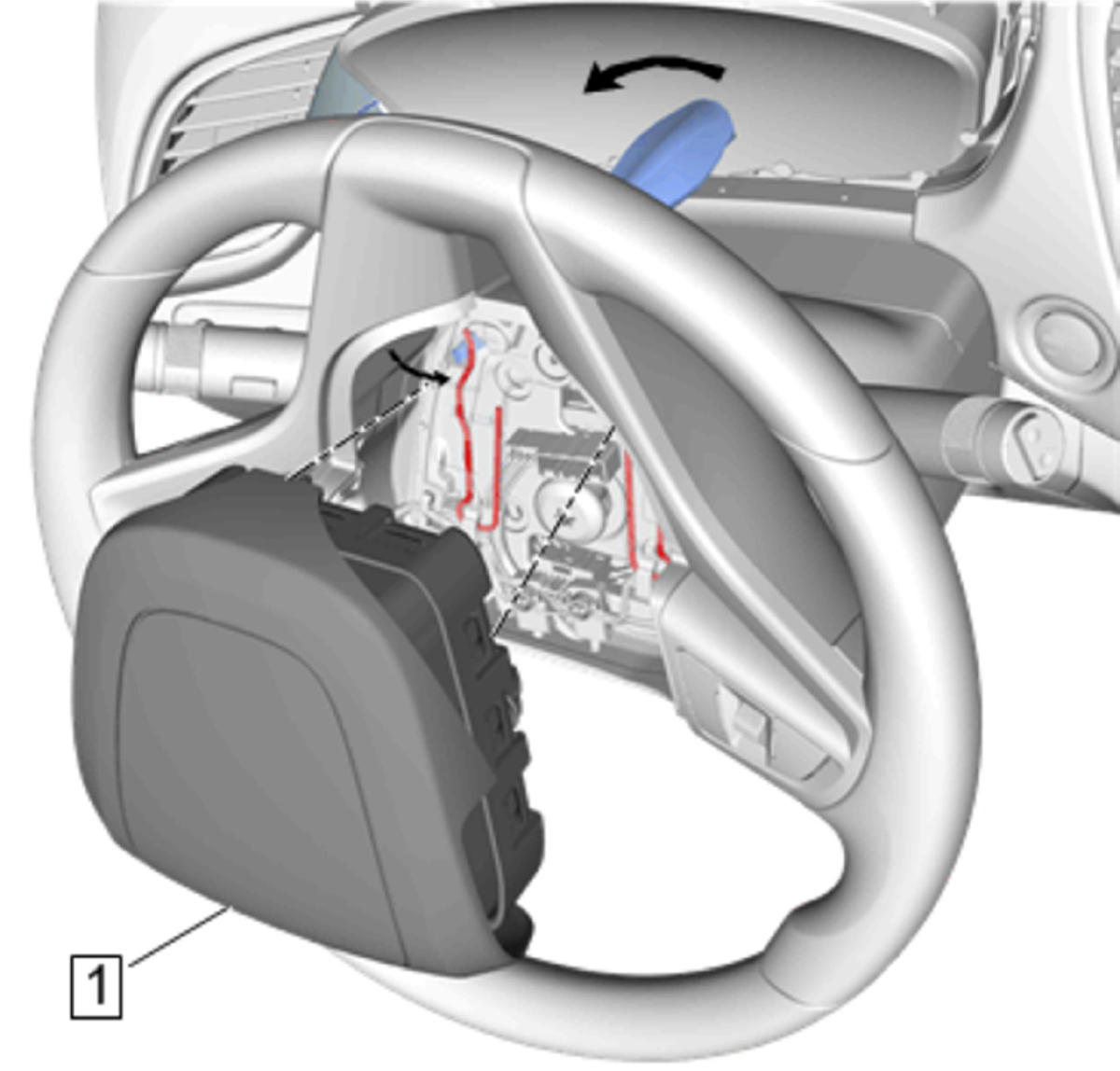

- Pull the right corner of the steering wheel air bag while pulling the screwdriver until the locking tab is released.

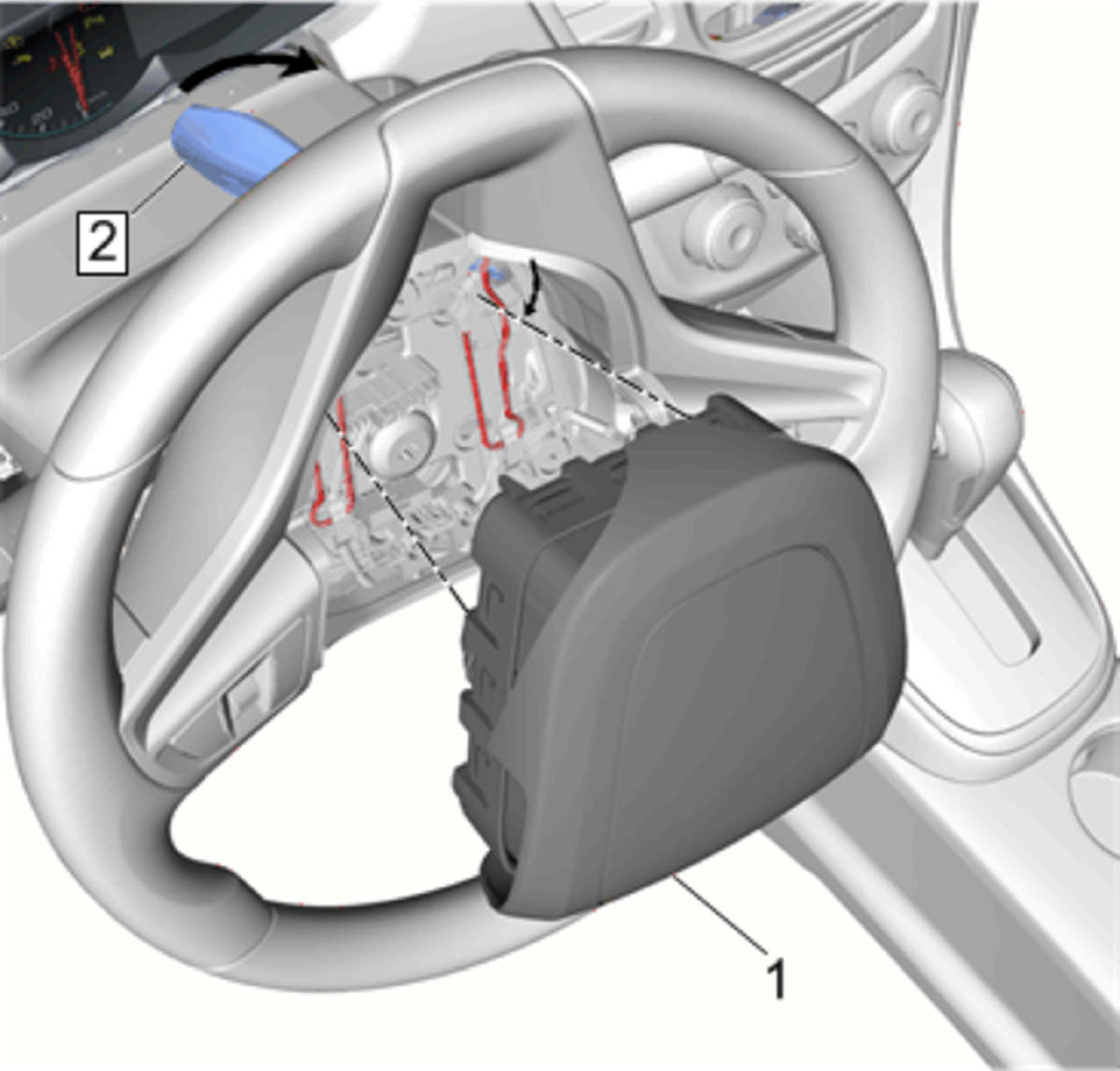

- Pull the left corner of the steering wheel air bag while pulling the screwdriver until the locking tab is released.
- Disconnect the electrical connectors.
- Steering Wheel Airbag»Remove
NOTE:
The end tip of the flathead screwdriver should be vertical.
