Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connectors.
- Align the steering wheel airbag fasteners to the steering column fastener holes.

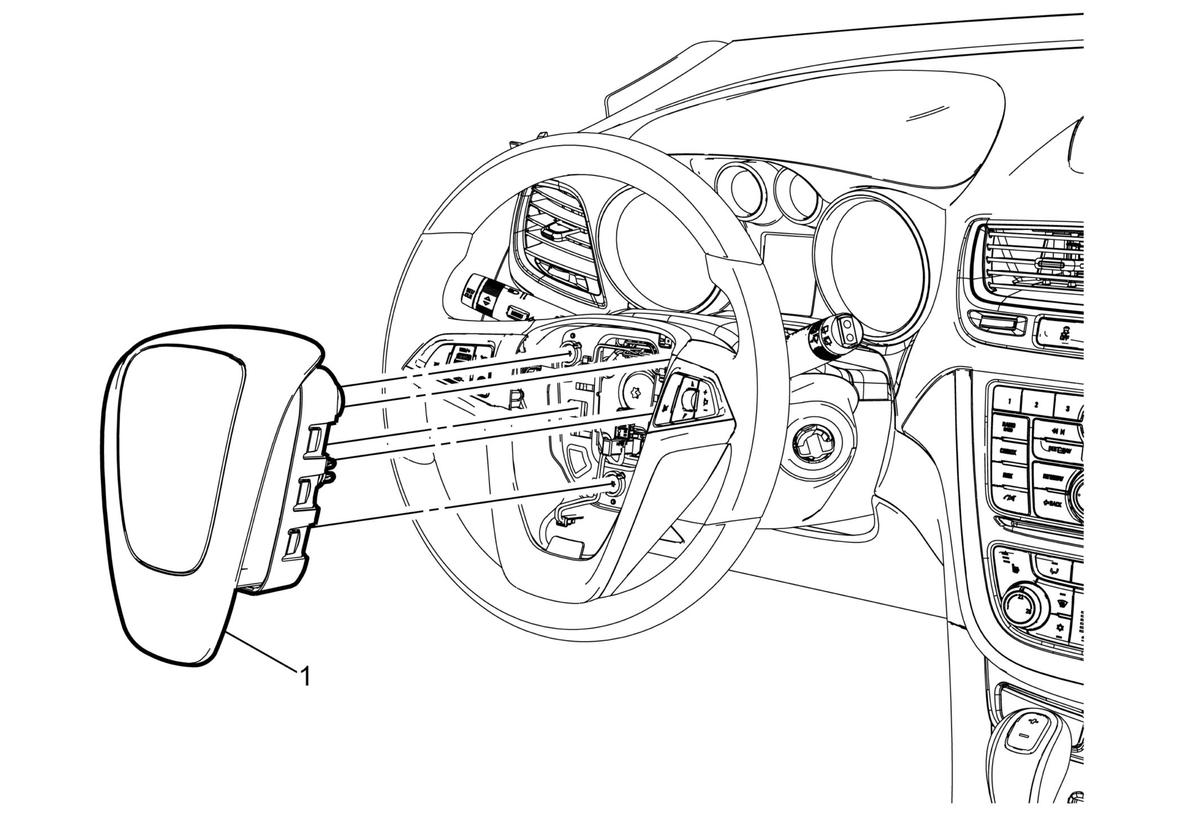

- Push the steering wheel airbag (1) firmly into the steering column in order to engage the fasteners.
- Enable the SIR System. SIR Disabling and Enabling .
- Inflatable Restraint Module Handling and Scrapping .
WARNING:
After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.
