K20 Engine Control Module X1 (2H0/LFH)

WARNING: This page is about a different car, the 2015 Chevrolet Trax. However, it is still accessible from the selected car via links, so may be relevant.

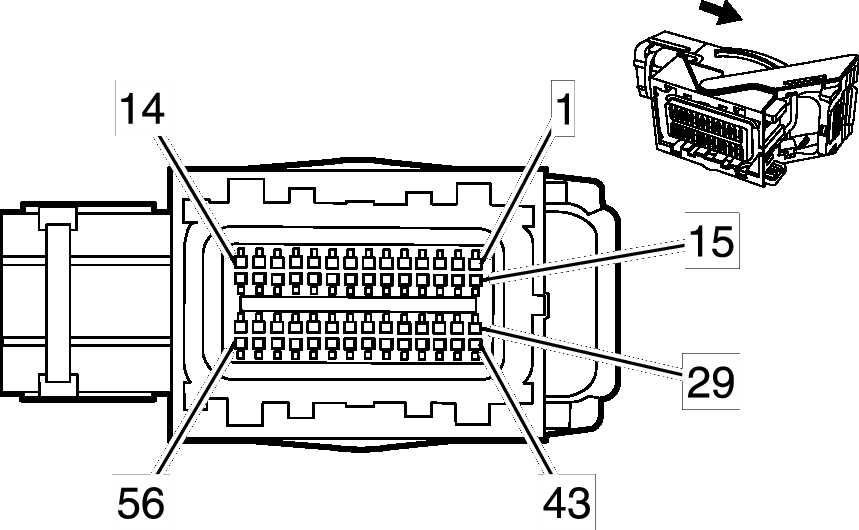

Connector Part Information

Harness Type: Engine
OEM Connector: PPI0001003
Service Connector: 13395415
Description: 56-Way F 0.64 Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13587371	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	BN/WH	419	Check Engine Indicator Control	I	-
2	0.5	GN/GY	465	Fuel Pump Primary Relay Control	I	-
3	0.75	VT/BU	5290	Powertrain Main Relay Fused Supply (1)	I	-
4	0.5	WH/GY	459	A/C Compressor Clutch Relay Control	I	-
5	0.5	WH/RD	1164	Accelerator Pedal Position 5 Volt Reference (1)	I	-
6 - 9	-	-	-	Not Occupied	-	-
10	0.5	BU	2500	High Speed GMLAN Serial Data (+) (1)	I	-
11	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	I	-
12	0.75	RD/WH	140	Battery Positive Voltage	I	-
13	-	-	-	Not Occupied	-	-
14	0.5	VT/GY	139	Run/Crank Ignition 1 Voltage	I	-
15	0.5	BN/YE	473	High Speed Cooling Fan Relay Control	I	-
16	0.5	YE	5991	Powertrain Relay Coil Control	I	-
17 - 18	-	-	-	Not Occupied	-	-
19	0.5	BN/RD	1274	Accelerator Pedal Position 5 Volt Reference (2)	I	-
20	0.5	BK/BU	1271	Accelerator Pedal Position Low Reference (1)	I	-
21	0.5	BK/VT	1272	Accelerator Pedal Position Low Reference (2)	I	-
22	-	-	-	Not Occupied	-	-
23	0.5 0.5	BK/GY BK/YE	6110 5382	Clutch Apply Sensor Low Reference Brake Position Sensor Low Reference	I	- CE1
24	0.5	BK/VT	2760	Intake Air Temperature Sensor Low Reference	I	-
25	0.5	WH/BU	6311	Cruise/ETC/TCC Brake Signal	I	-
26	0.5	WH/GY	1786	Transmission Park/Neutral Signal (1)	I	-
27	-	-	-	Not Occupied	-	-
28	0.5	GN/WH	5007	Reverse Switch Signal	I	-
29	0.5	YE/BK	625	Starter Enable Relay Control	I	-
30	0.5	WH/BN	3871	Cold Start Fuel Pump Control	I	-
31	-	-	-	Not Occupied	-	-
32	0.5 0.5	GY/RD WH/RD	6109 5381	Clutch Apply Sensor 5 Volt Reference Brake Position Sensor 5 Volt Reference	I	- U80-UE1
33	0.5	BN/RD	2700	A/C Pressure Sensor 5 Volt Reference	I	-
34 - 35	-	-	-	Not Occupied	-	-
36	0.5	VT/YE	5985	Accessory Wakeup Serial Data	I	-
37	-	-	-	Not Occupied	-	-
38	0.5	BK/GN	6281	Fuel Level Sensor Low Reference	I	-
39	-	-	-	Not Occupied	-	-
40	0.5	YE/WH	1161	Accelerator Pedal Position Signal (1)	I	-
41	0.5	GN	380	A/C Refrigerant Pressure Sensor Signal	I	-
42	0.5	GN/WH	1162	Accelerator Pedal Position Signal (2)	I	-
43	0.5 0.5	YE/GN BU	3870 6814	Cold Start Fuel Injector Control Thermostat Engine Cool Control	I	- -
44	0.5	GN/VT	335	Low Speed Cooling Fan Relay Control	I	-
45	0.5	BK/BN	5514	A/C Refrigerant Pressure Sensor Low Reference	I	-
46	0.5	BK/BU	6813	Coolant Temperature Sensor 2 Low Reference	I	-
47 - 49	-	-	-	Not Occupied	-	-
50	0.5	GY/BU	48	Clutch Pedal Position Switch Anticipate Signal	I	-
51	0.5	GN/WH	492	Mass Air Flow Sensor Signal	I	-
52	0.5	BU/VT	1589	Primary Fuel Level Sensor Signal	I	-
53	0.5	GN/VT	2032	Coolant Temperature Sensor Signal	I	-
54	0.5	WH/BU	6289	Induction Air Temperature Sensor Signal	I	-
55	-	-	-	Not Occupied	-	-
56	0.5 0.5	YE WH/GN	6111 5380	Clutch Apply Sensor Signal Brake Position Sensor Signal	I	- MAH
