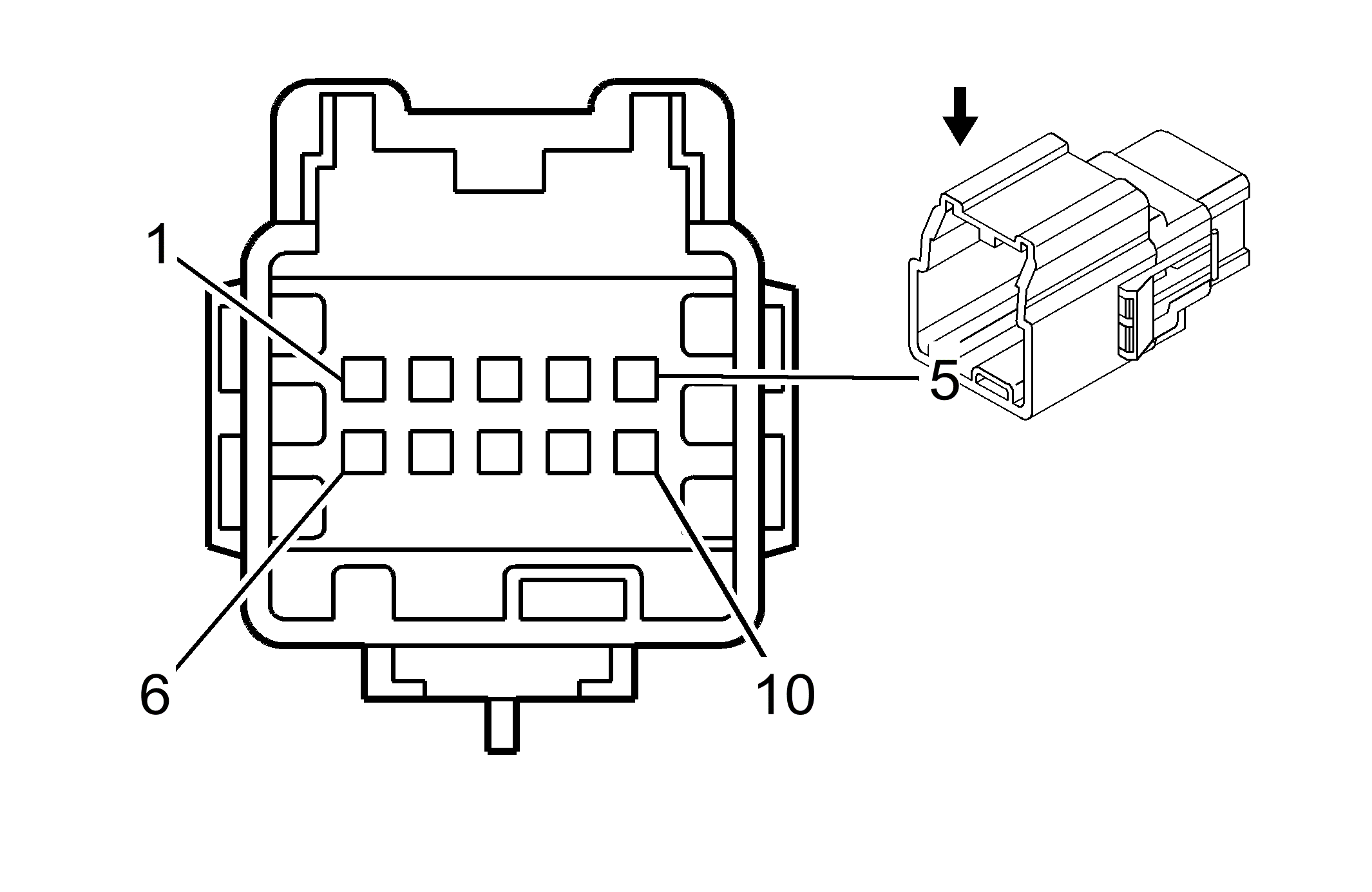

A9A Outside Rearview Mirror - Driver
WARNING: This page is about a different car, the 2015 Chevrolet Trax. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 13654633
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way M Micro HVT 064 (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-65B (LT BU) |
No Tool Required |
Not Available |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/BN |
3391 |
Driver Mirror Motor Common Control |
I |
- |
| 2 |
0.5 |
VT/BU |
3390 |
Driver Mirror Motor Up (+) Down (-) Control |
I |
- |
| 3 |
0.5 |
BN/BK |
3389 |
Driver Mirror Motor Right (+) Left (-) Control |
I |
- |
| 4 |
0.5 |
BN/YE |
2267 |
Mirror Heating Element Control |
I |
- |
| 5 |
0.5 |
BK |
850 |
Ground |
I |
- |
| 6 |
0.5 |
VT/YE |
3409 |
Mirror Motor Fold Out Control |
I |
- |
| 7 |
0.5 |
WH/BN |
3410 |
Mirror Motor Fold In Control |
I |
- |
| 8 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.5 |
BU/WH |
1314 |
Left Front Turn Signal Lamp Control |
I |
- |
