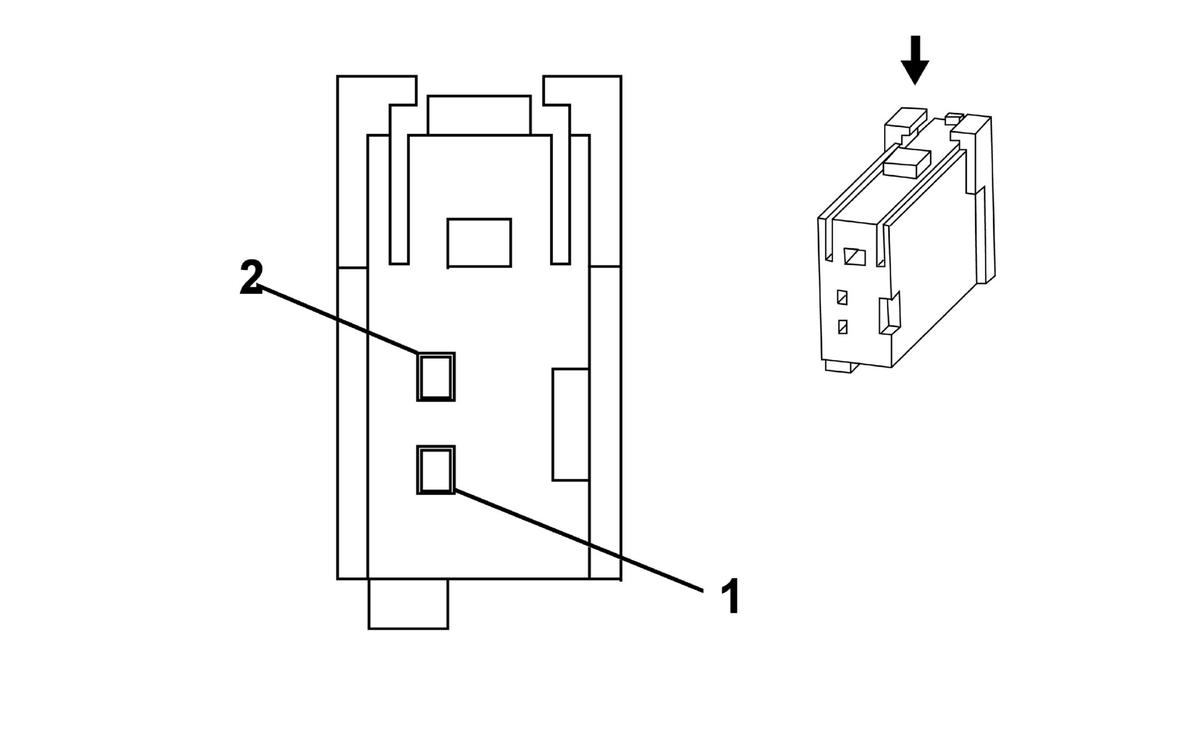

P19V Speaker - Right Front Tweeter
WARNING: This page is about a different car, the 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: AIT2PB-02A-1AK
- Service Connector: 13314093
- Description: 2-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Available |
Not Available |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
YE/BK |
117 |
Right Front Speaker Signal (-) (1) |
I |
- |
| 2 |
0.75 |
YE |
200 |
Right Front Speaker Control (+) (1) |
I |
- |
