Sunroof Sunshade Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

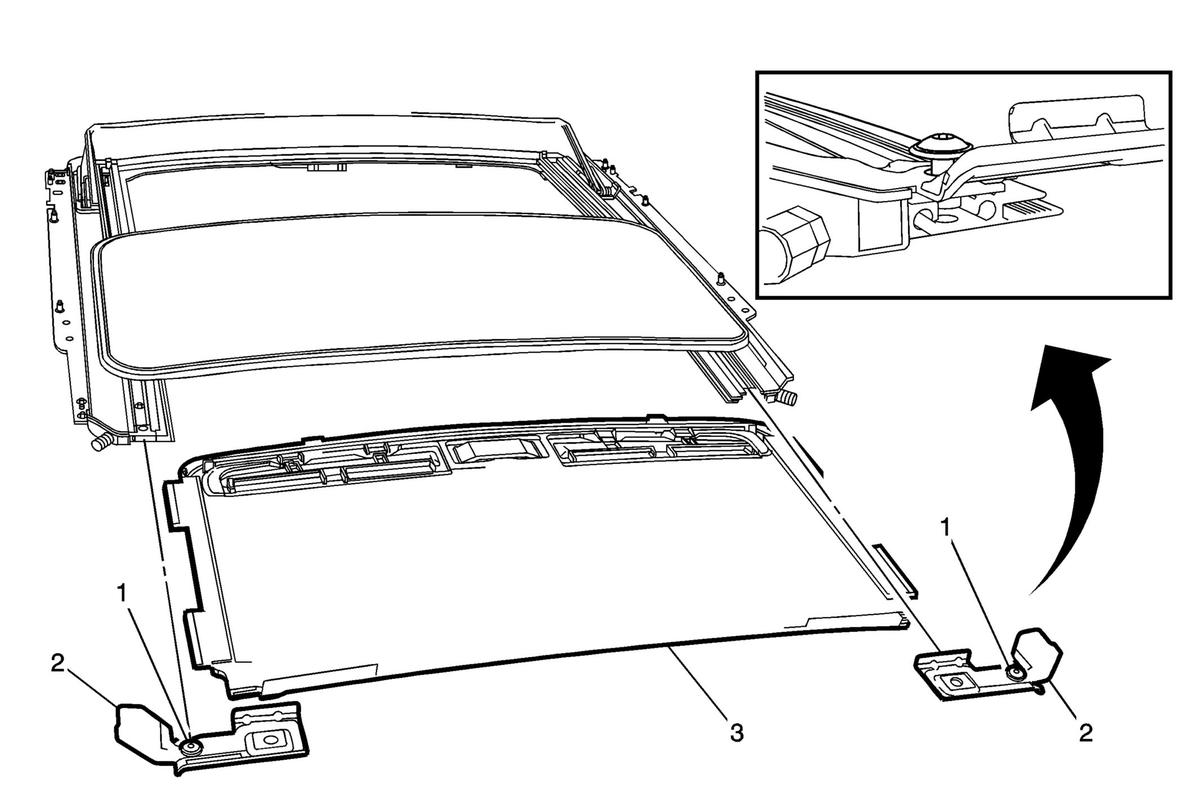

Fig 1: Sunroof Sunshade

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the sunroof module. Refer to Sunroof Module Assembly Replacement .
1	Sunroof Module Bracket Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Sunroof Module Bracket
3	Sunroof Sunshade Procedure The sunshade must be removed from the rear of the sunroof module. Slide the sunshade rearward releasing it from the module assembly.
