Sunroof Air Deflector Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

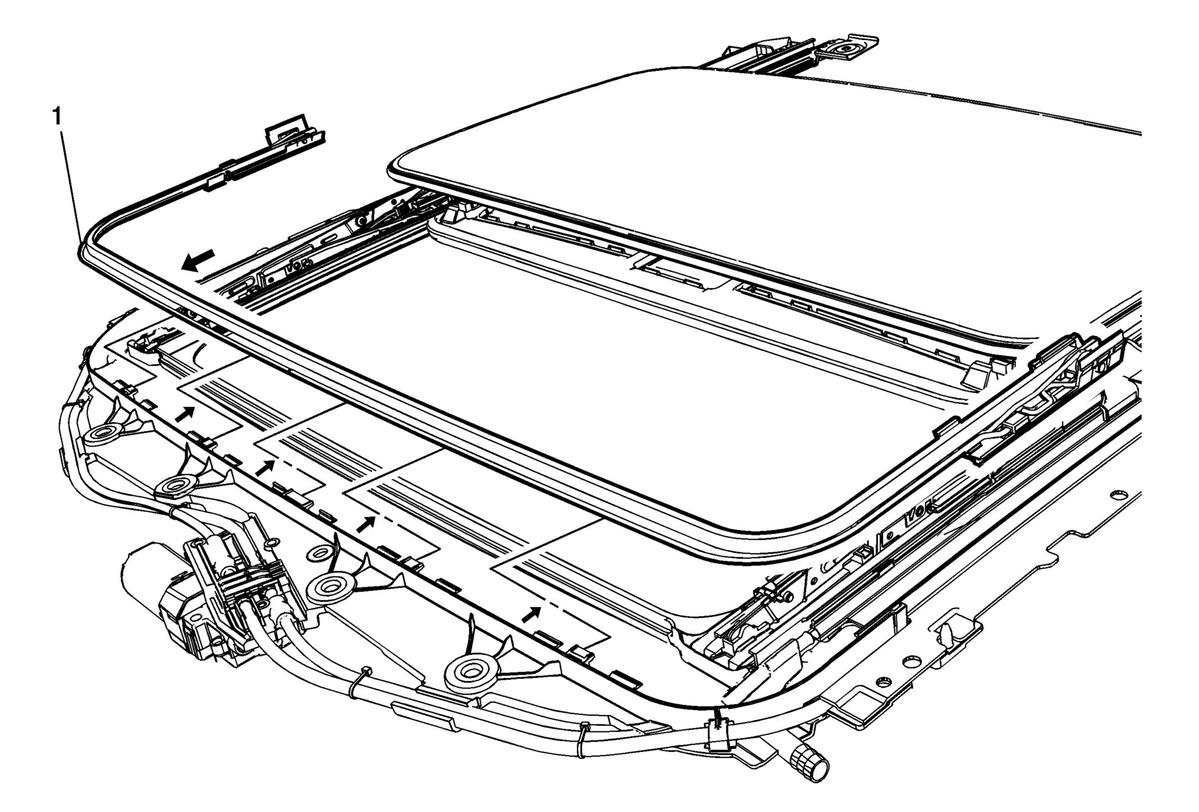

Fig 1: Sunroof Air Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunroof Air Deflector Procedure Open the sunroof window and sunshade to the full rear position. Use a suitable tool, unhook the front edge of the sunroof air deflector from the sunroof frame retainers. Grasp both left and right front corners of the air deflector wind screen, pull rearward on the wind screen releasing the front lower retainers. Unhook the rear air deflector springs from the frame. Cycle the sunroof window for a proper fit. NOTE: It may be necessary to transfer the louver vents to the new sunshade.

Callout

Component Name

Sunroof Air Deflector

Procedure

Open the sunroof window and sunshade to the full rear position.
Use a suitable tool, unhook the front edge of the sunroof air deflector from the sunroof frame retainers.
Grasp both left and right front corners of the air deflector wind screen, pull rearward on the wind screen releasing the front lower retainers.
Unhook the rear air deflector springs from the frame.
Cycle the sunroof window for a proper fit.

NOTE:

It may be necessary to transfer the louver vents to the new sunshade.
