Section 100 (Power Seat System)
>>
Schematic Wiring Diagrams
>>
Driver Seat Wiring Schematics (Encore)
>>
Power Seat and Lumbar (Encore without AAG)
Power Seat and Lumbar (Encore without AAG)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

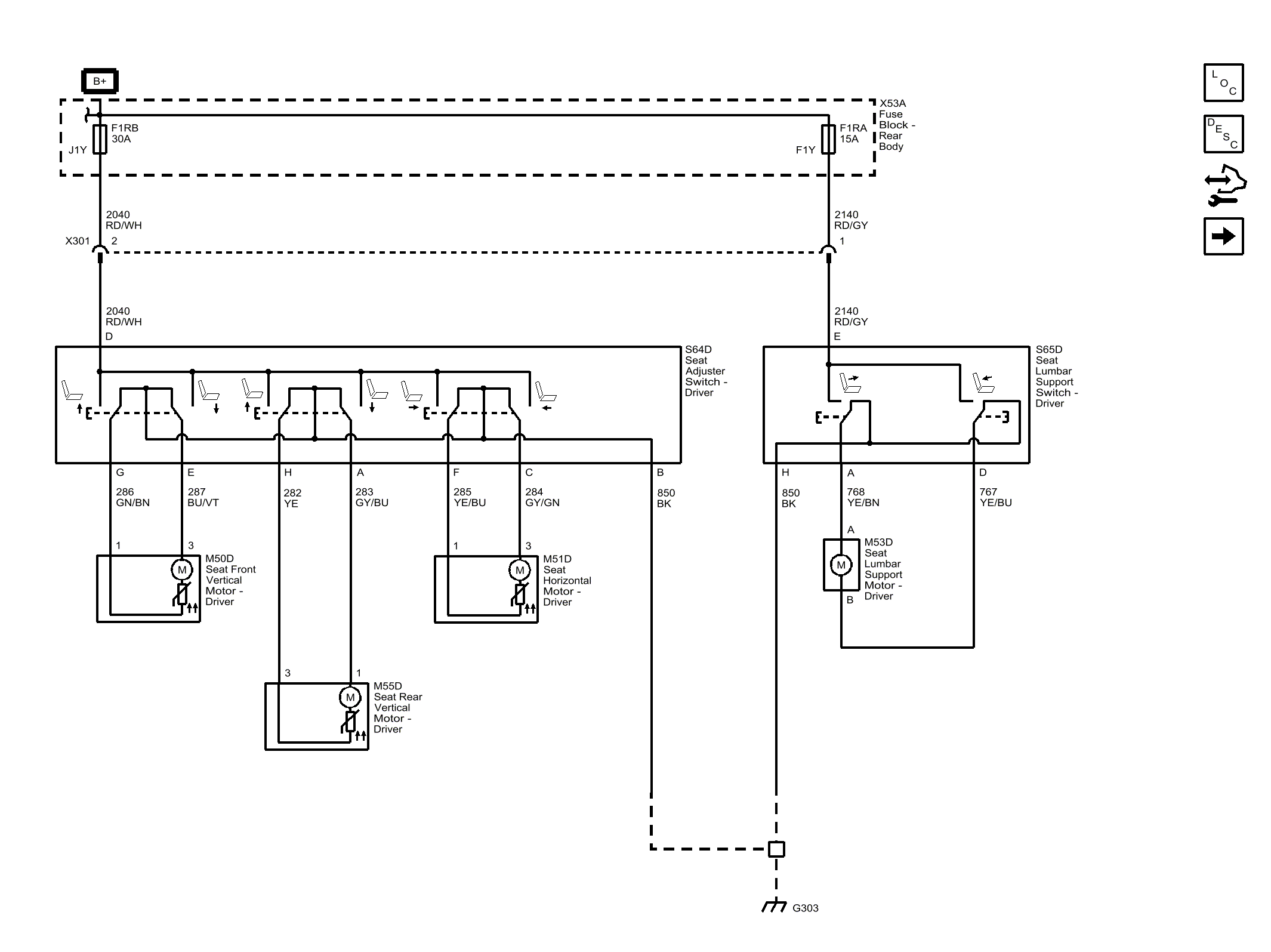

Fig 1: Power Seat and Lumbar (Encore without AAG)
Courtesy of GENERAL MOTORS COMPANY
