Power Seats System Description and Operation: Notes
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
The power seat system consists of the following components:
- Seat adjuster switch
- Seat horizontal motor
- Seat front vertical motor
- Seat rear vertical motor

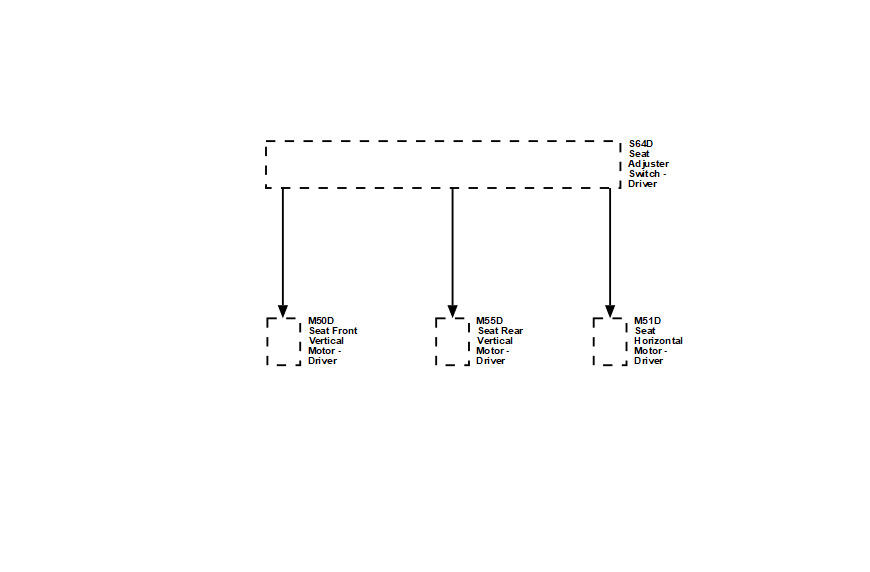

| Callout | Component Name |
|---|---|
| S64D | S64D Seat Adjuster Switch - Driver |
| M50D | M50D Seat Front Vertical Motor - Driver |
| M55D | M55D Seat Rear Vertical Motor - Driver |
| M51D | M51D Seat Horizontal Motor - Driver |
NOTE:
If equipped, the passenger seat block diagram is identical to the driver seat.
