B88RR Seat Belt Switch - Right Rear
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

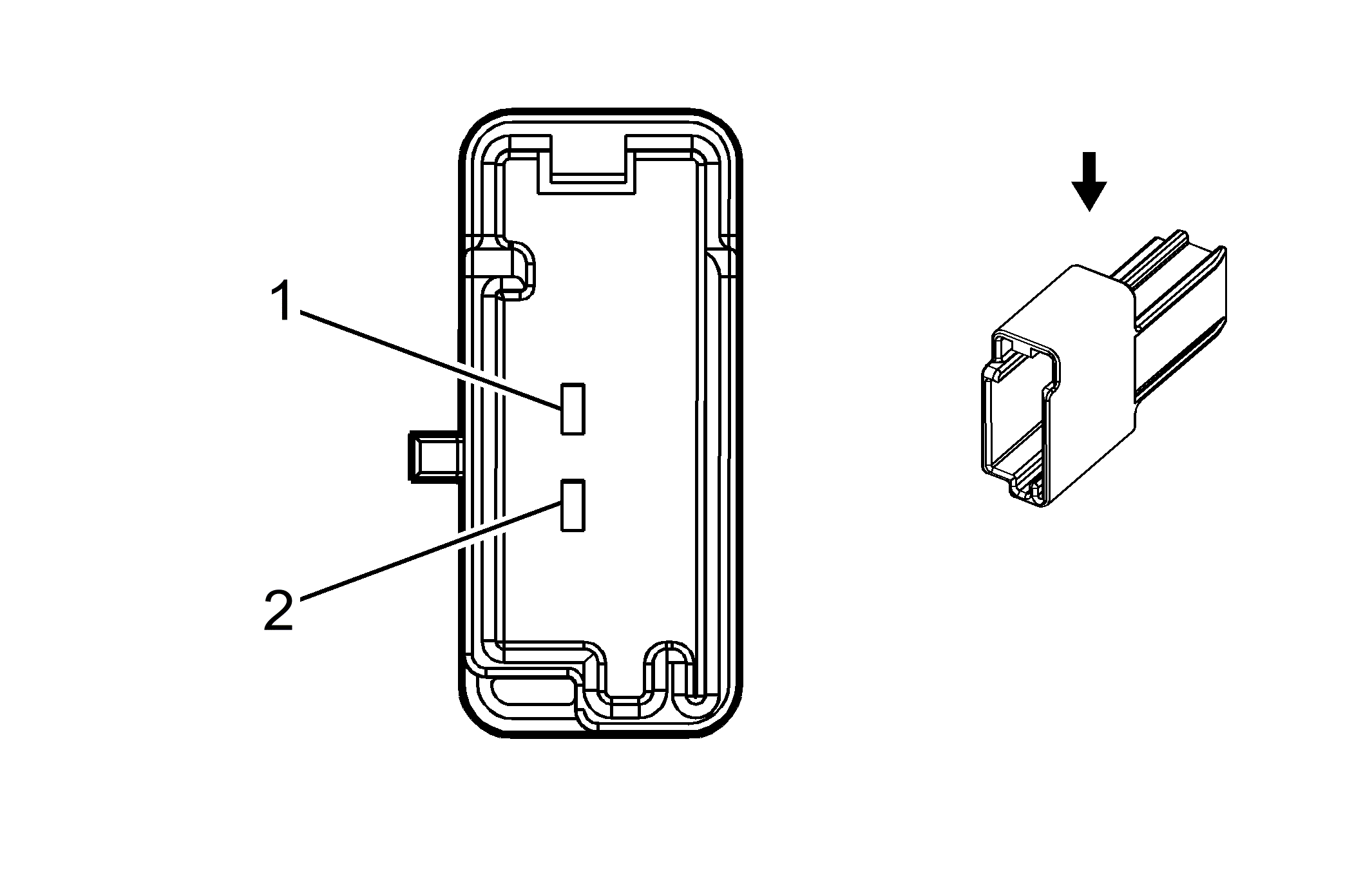

Connector Part Information
- Harness Type: Body
- OEM Connector: 6098-5529
- Service Connector: 19328999
- Description: 2-Way M (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-65B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/WH |
5162 |
Right Rear Seat Belt Switch Signal |
I |
- |
| 2 |
0.5 |
BK/OG |
1361 |
Passenger Seat Belt Switch Low Reference |
I |
- |
