B75B Mass Air Flow/Intake Air Temperature Sensor
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

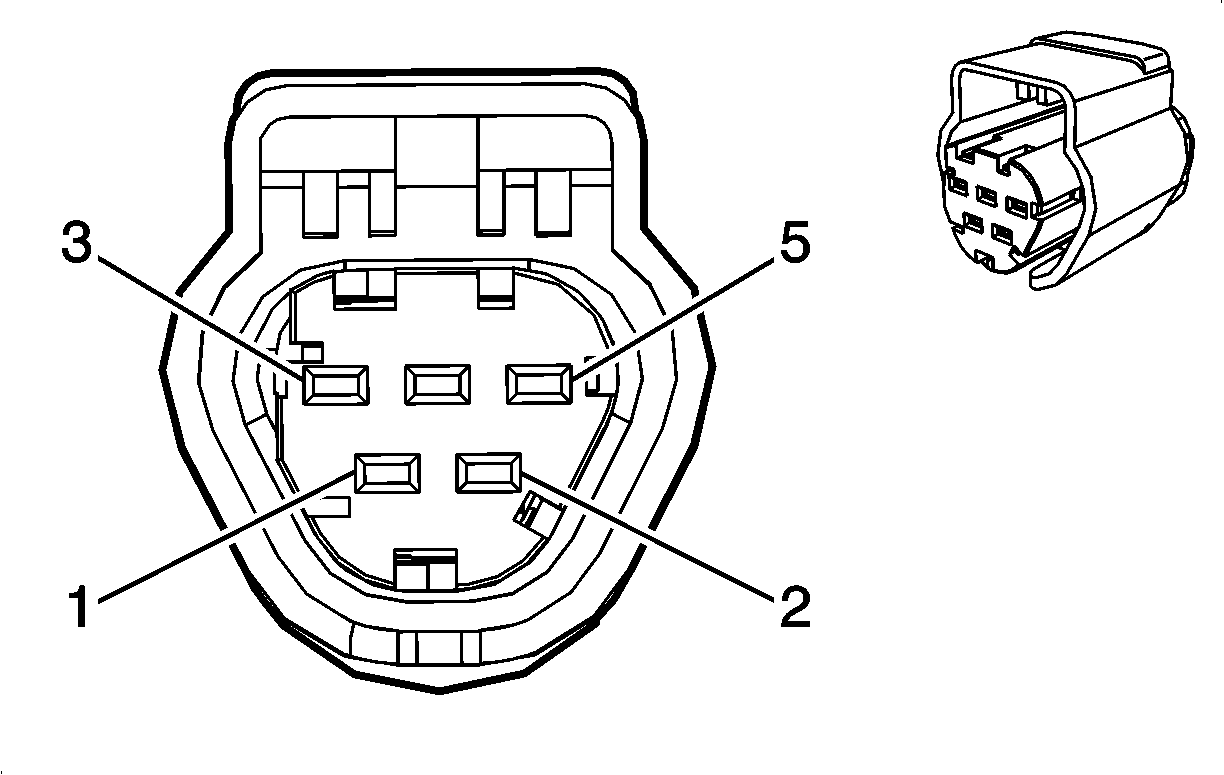

Connector Part Information
- Harness Type: Engine
- OEM Connector: 1928405138
- Service Connector: Service by Harness - See Part Catalog
- Description: 5-Way Metri Pack 150 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/WH |
2760 |
Intake Air Temperature Sensor Low Reference |
I |
- |
| 2 |
0.5 |
YE/L-BU |
5494 |
Cylinder Shutoff Solenoid Control (4) |
I |
- |
| 3 |
0.5 |
WH/L-BU |
6289 |
Induction Air Temperature Sensor Signal |
I |
- |
| 4 |
0.5 |
VT/L-BU |
5293 |
Powertrain Main Relay Fused Supply (4) |
I |
- |
| 5 |
0.5 |
L-GN/L-BU |
492 |
Mass Air Flow Sensor Signal |
I |
- |
