B52A Heated Oxygen Sensor 1
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

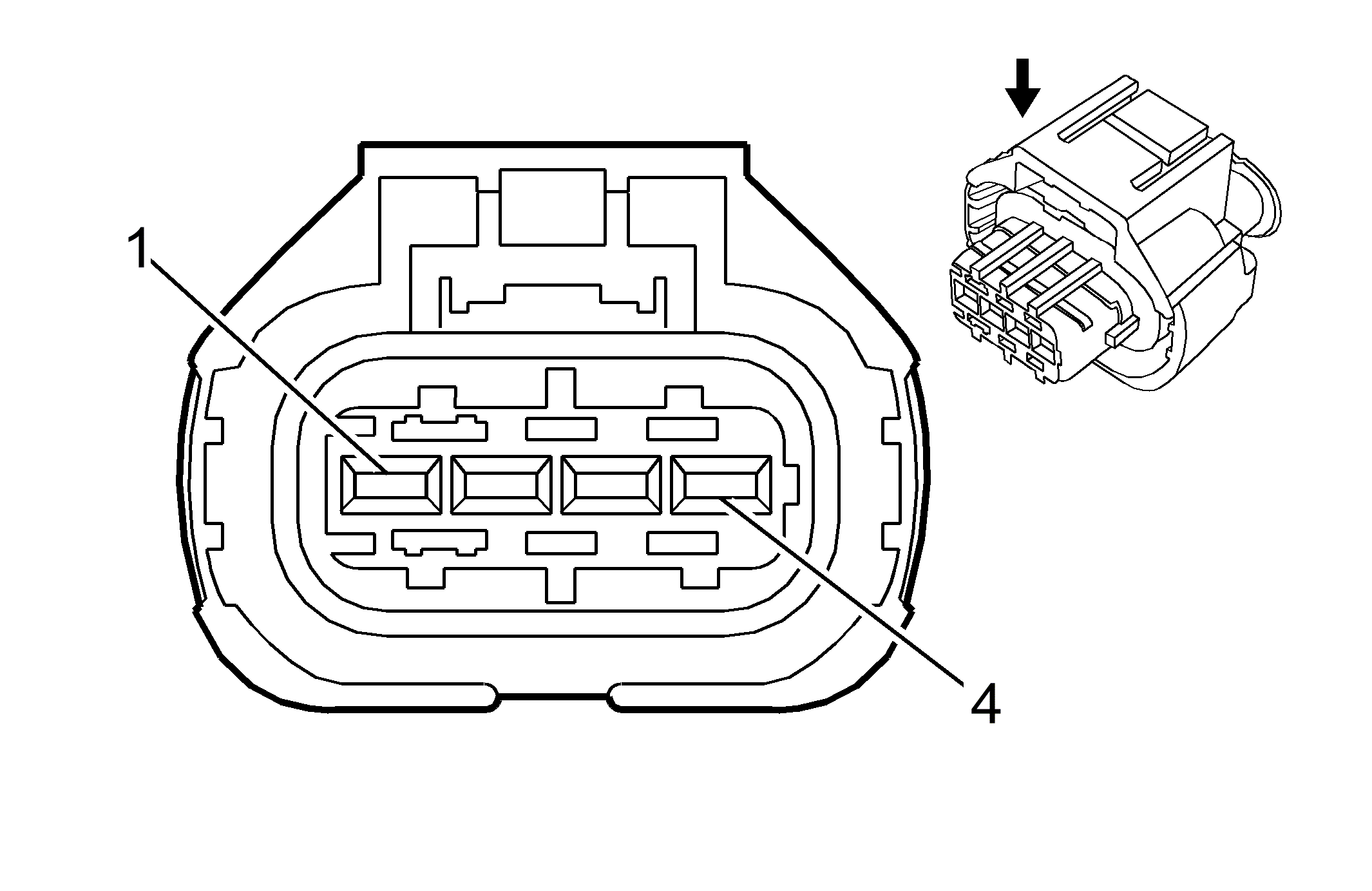

Connector Part Information
- Harness Type: Engine
- OEM Connector: 1 928 403 913
- Service Connector: Not Available
- Description: 4-Way F 2.8 Timer Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
18 |
VT/L-BU |
5293 |
Powertrain Main Relay Fused Supply (4) |
I |
- |
| 2 |
18 |
GY/WH |
3113 |
Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (1) |
I |
- |
| 3 |
18 |
VT/GY |
3110 |
Heated Oxygen Sensor High Signal Bank 1 Sensor (1) |
I |
- |
| 4 |
18 |
WH/BK |
3111 |
Heated Oxygen Sensor Low Signal Bank 1 Sensor (1) |
I |
- |
