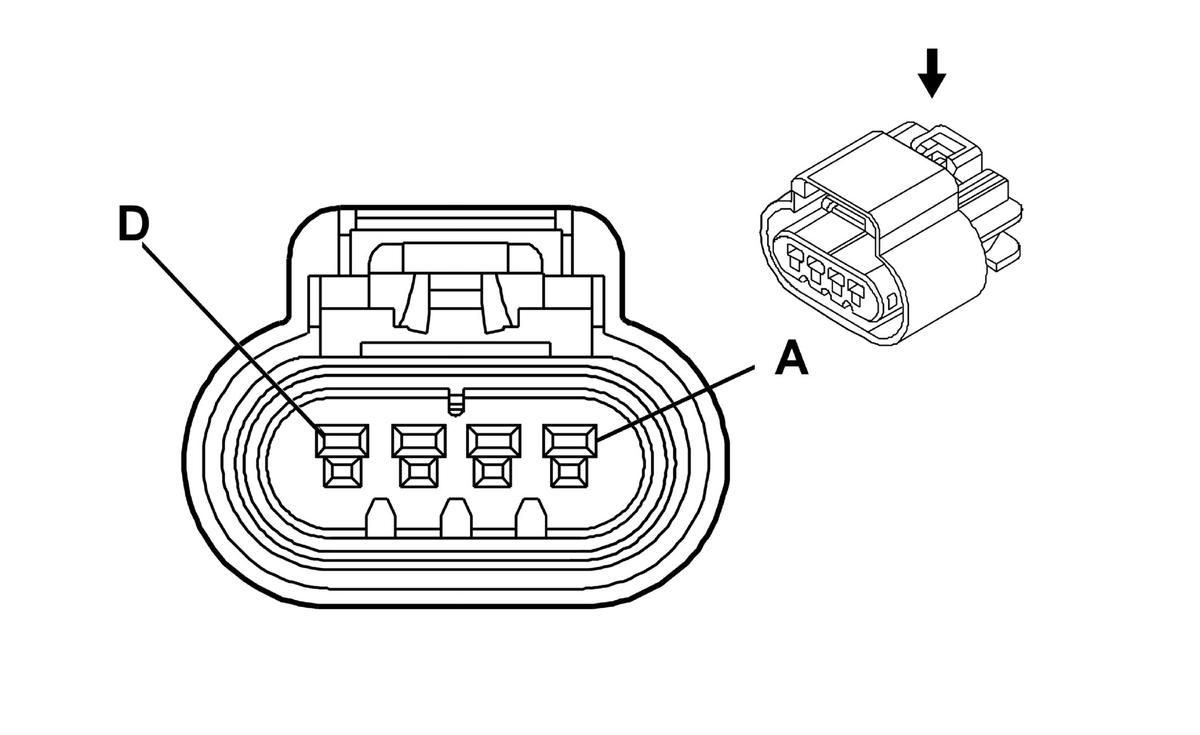

B30 Hybrid Battery Pack Current Sensor
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Battery Cables
- OEM Connector: 19153734
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 150 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
L-BU/YE |
2962 |
High Voltage Battery Current Sensor Course Signal |
I |
- |
| B |
0.5 |
VT/RD |
2965 |
High Voltage Battery Current Sensor Voltage Reference |
I |
- |
| C |
0.5 |
BK/GY |
2963 |
High Voltage Battery Current Sensor Low Reference |
I |
- |
| D |
0.5 |
L-GN/BN |
2961 |
High Voltage Battery Current Sensor Fine Signal |
I |
- |
