B14A Transmission Output Shaft Speed Sensor
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

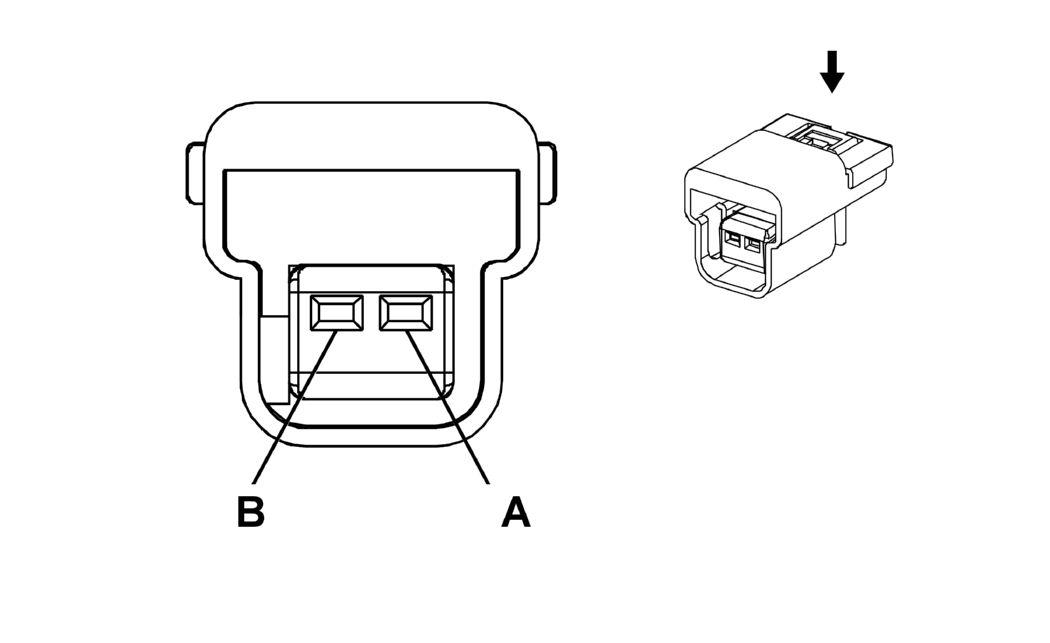

Connector Part Information
- Harness Type: Transmission
- OEM Connector: 15332128
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F GT 150 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575735 |
J-35616-2A (GY) |
J-38125-553 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
RD |
908 |
Output Speed High Signal Output |
I |
- |
| B |
0.5 |
VT |
909 |
Output Speed Low Signal |
I |
- |
