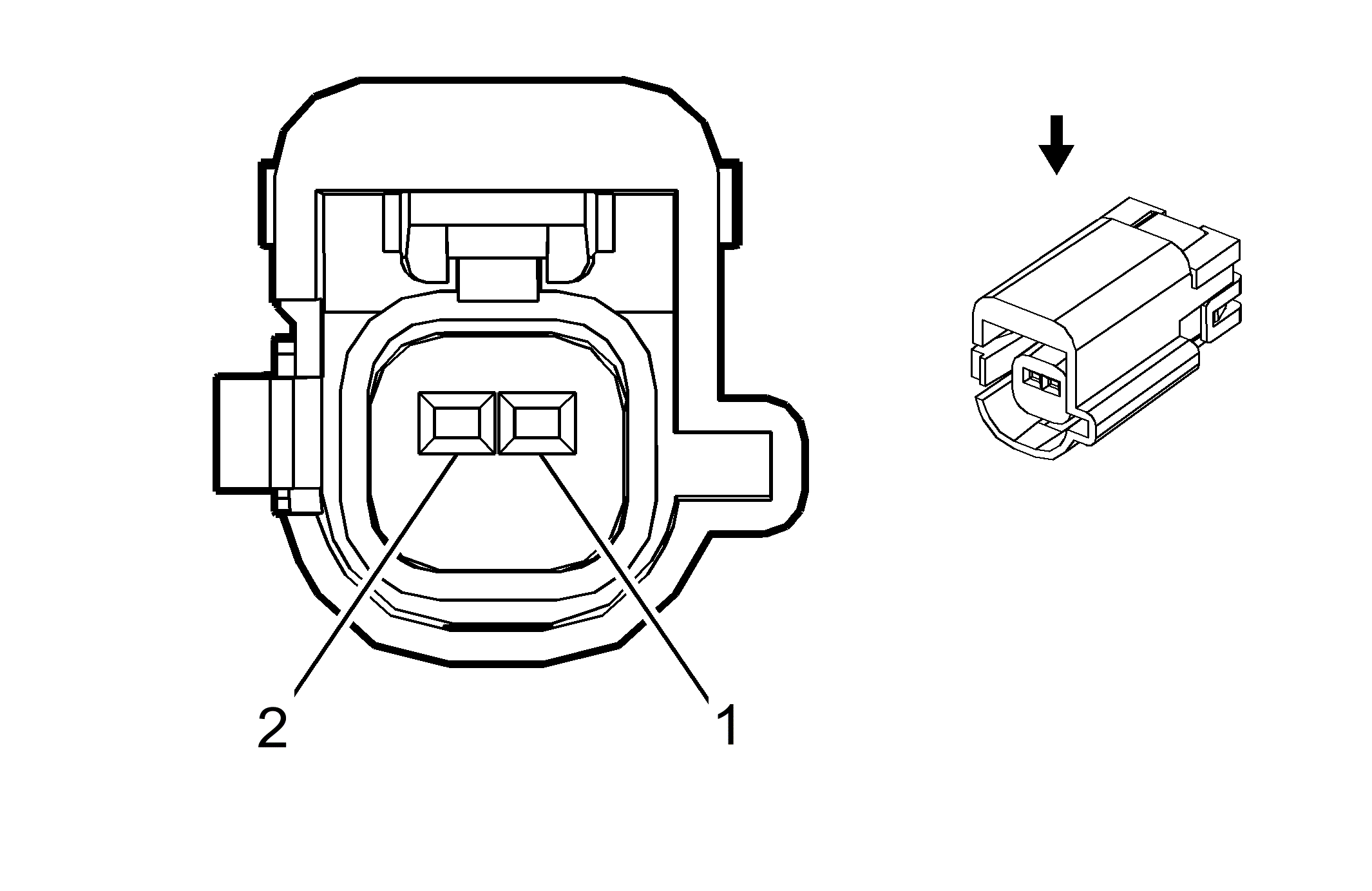

A4 Hybrid/EV Battery Pack X5 X5
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13738744
- Service Connector: 13577521
- Description: 2-Way F 1.2 Micro HVT Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/VT |
5595 |
High Voltage Interlock Loop Signal (2) |
I |
- |
| 2 |
0.5 |
BK/VT |
5596 |
High Voltage Interlock Loop Low Reference (2) |
I |
- |
