Turbocharger Wastegate Regulator Solenoid Valve Replacement

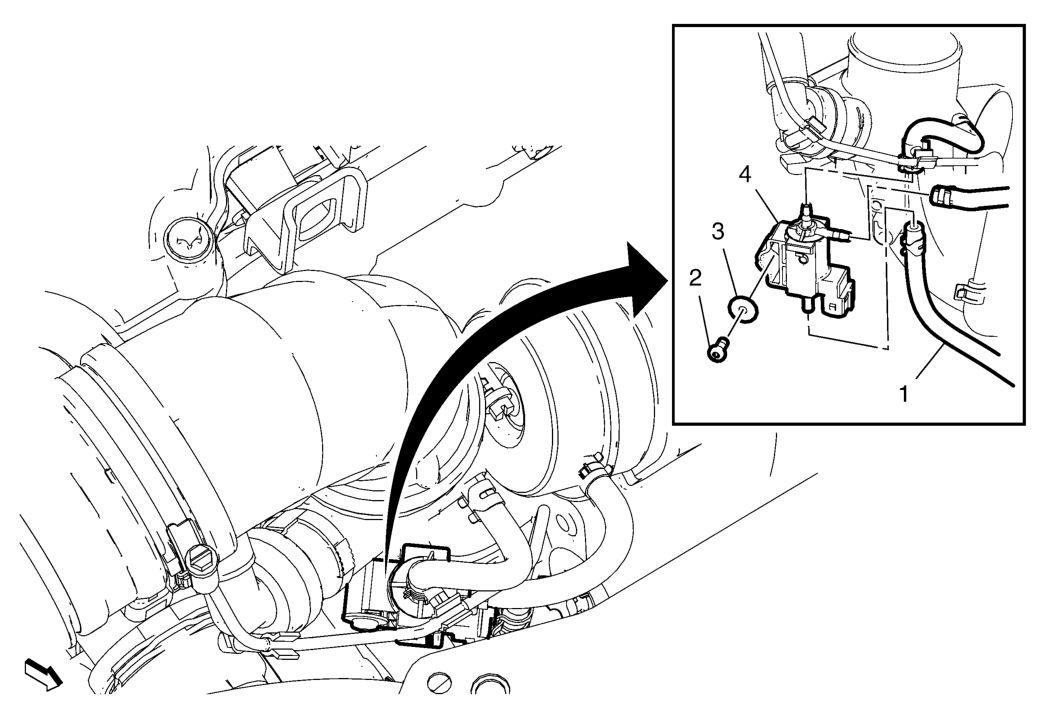

Fig 1: Turbocharger Wastegate Regulator Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Disconnect the turbocharger wastegate regulator solenoid valve electrical connector.
1	Turbocharger Wastegate Regulator Solenoid Valve Vacuum Hose (Qty: 3)
2	Turbocharger Wastegate Regulator Solenoid Valve Bolt
3	Turbocharger Wastegate Regulator Solenoid Valve Bolt Washer
4	Turbocharger Wastegate Regulator Solenoid Valve
