Installation Procedure

  1. Insert the EVAP canister vent solenoid valve into the EVAP canister, with the valve aligned to the released position.

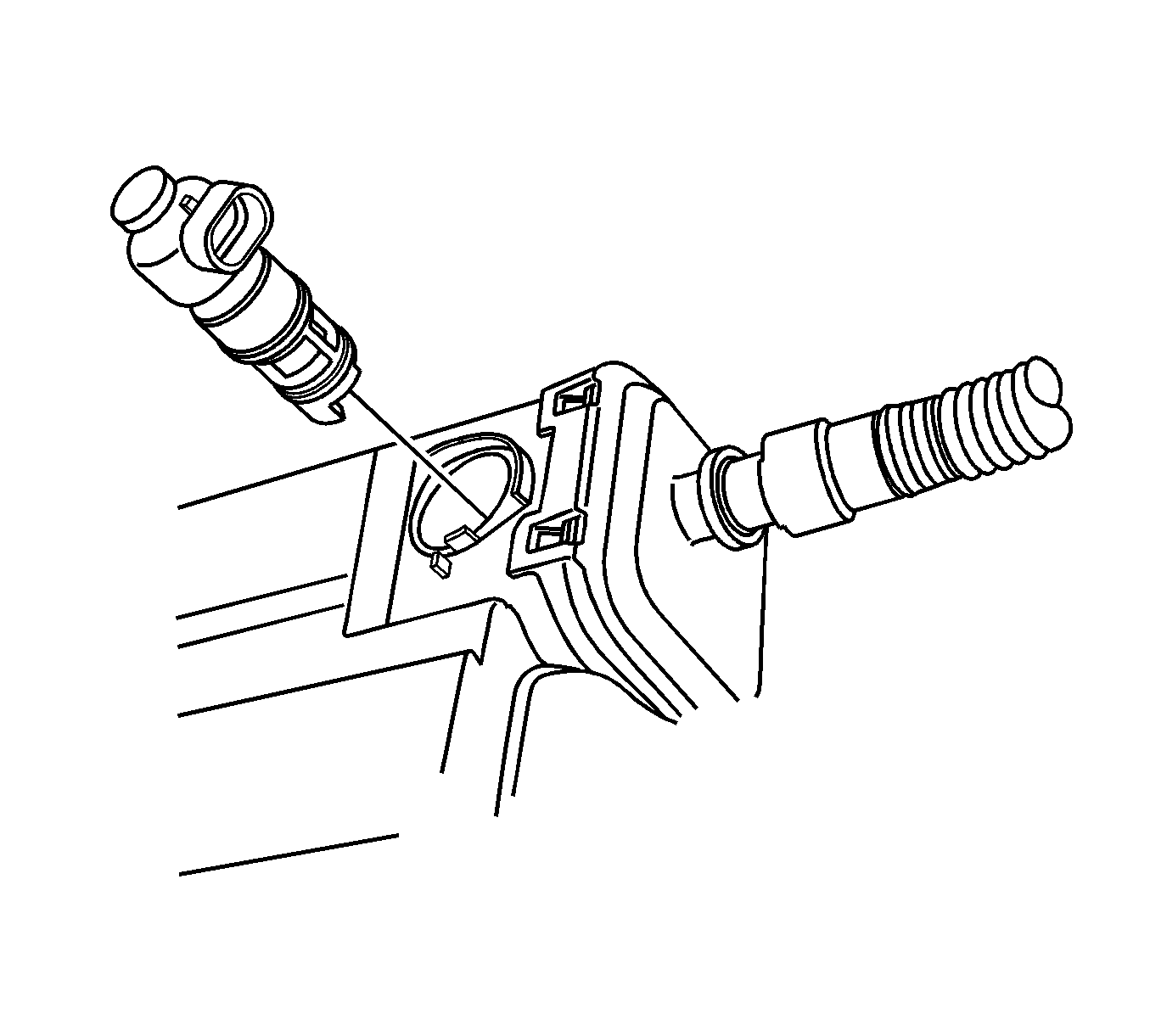

    Fig 1: View Of EVAP Canister Vent Valve
    GM1455828Courtesy of GENERAL MOTORS COMPANY
  2. Rotate vent valve clockwise to secure into the locked position.

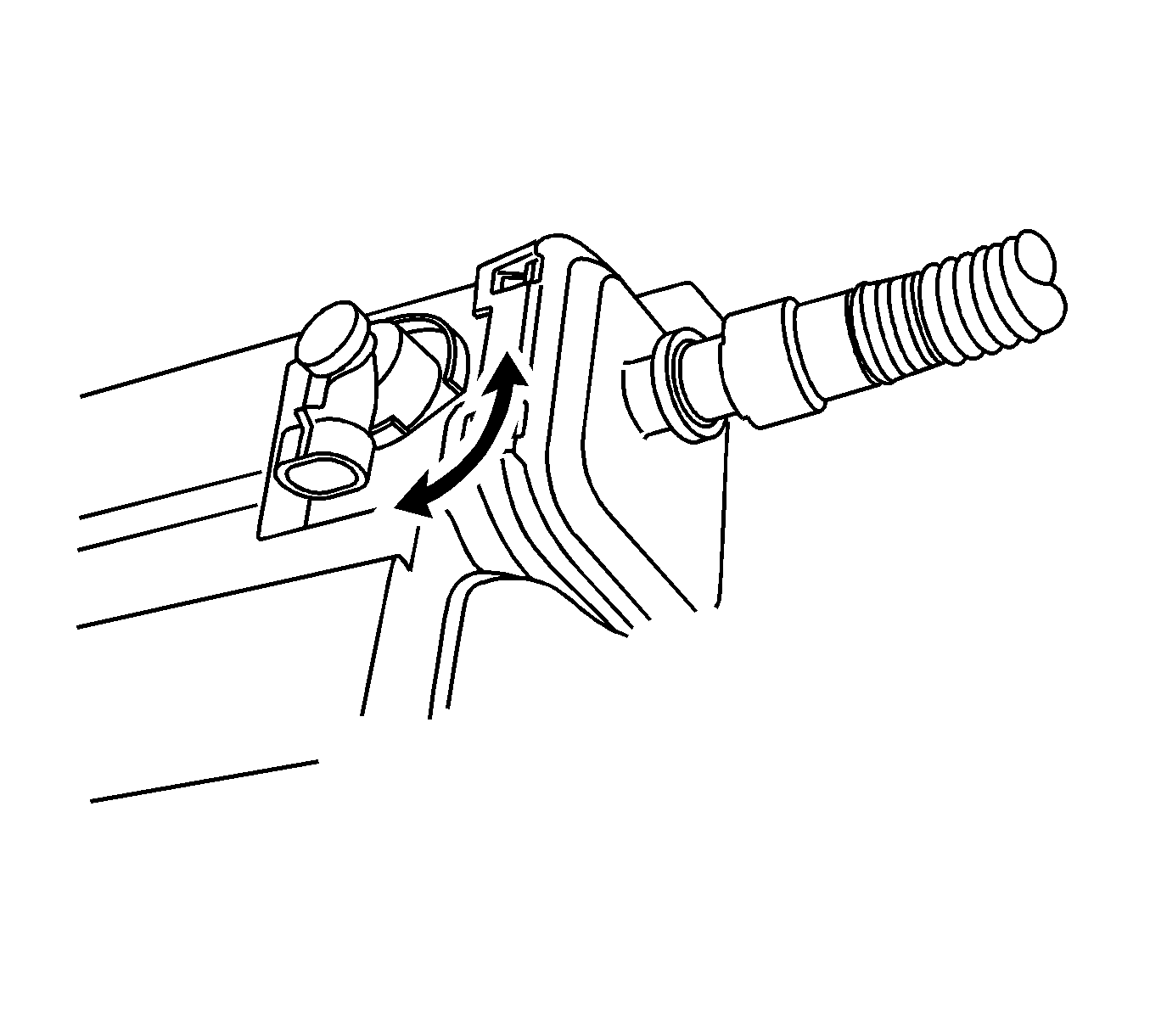

    Fig 2: Rotating EVAP Canister Vent Valve
    GM1455825Courtesy of GENERAL MOTORS COMPANY
  3. Install the EVAP canister. Refer to Evaporative Emission Canister Replacement .
