Installation Procedure

  1. Install the evaporative emission canister (1) to the evaporative emission canister bracket.

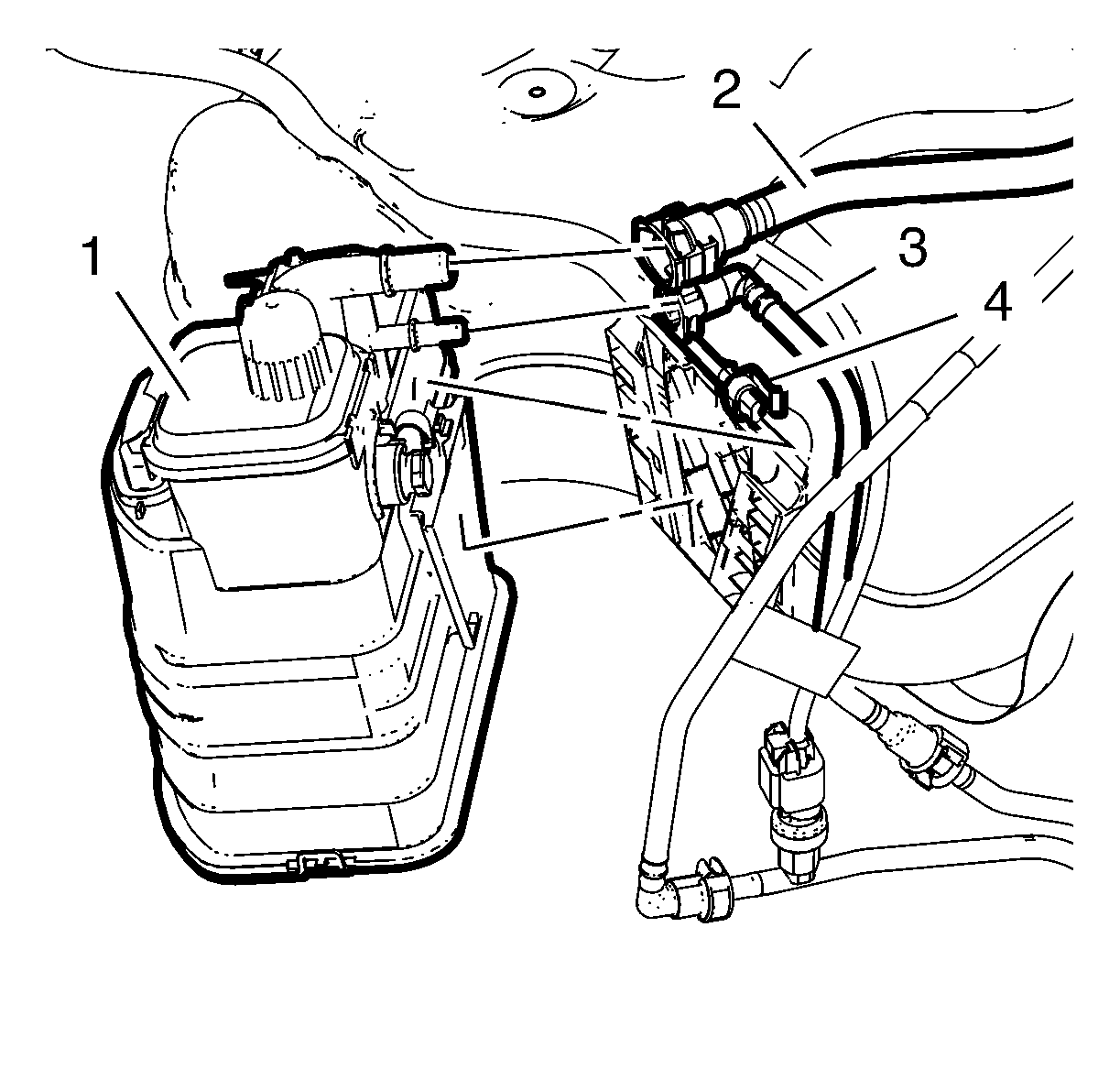

    Fig 1: Evaporative Emission Canister
    GM2373021Courtesy of GENERAL MOTORS COMPANY
  2. Connect the evaporative emission canister purge pipe (3).
  3. Connect the evaporative emission canister wiring harness plug (4).
  4. Connect the evaporative emission vent pipe (2).
  5. Raise the fuel tank to its original position.
  6. Install the 2 fuel tank straps (1).
    Fig 2: Fuel Tank Straps
    GM2028244Courtesy of GENERAL MOTORS COMPANY
  7. Install the 2 fuel tank strap bolts (2) and tighten to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution .
  8. Remove the suitable adjustable jack.
  9. Install the fuel tank filler hose (3) to the fuel tank filler pipe (1).
    Fig 3: Fuel Tank Filler Pipe
    GM2028238Courtesy of GENERAL MOTORS COMPANY
  10. Install the clamp (2).
  11. Lower the vehicle.
  12. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  13. Close the hood.
