Installation Procedure

  1. Clip in the radiator inlet hose to the charge air cooler outlet air hose (2).

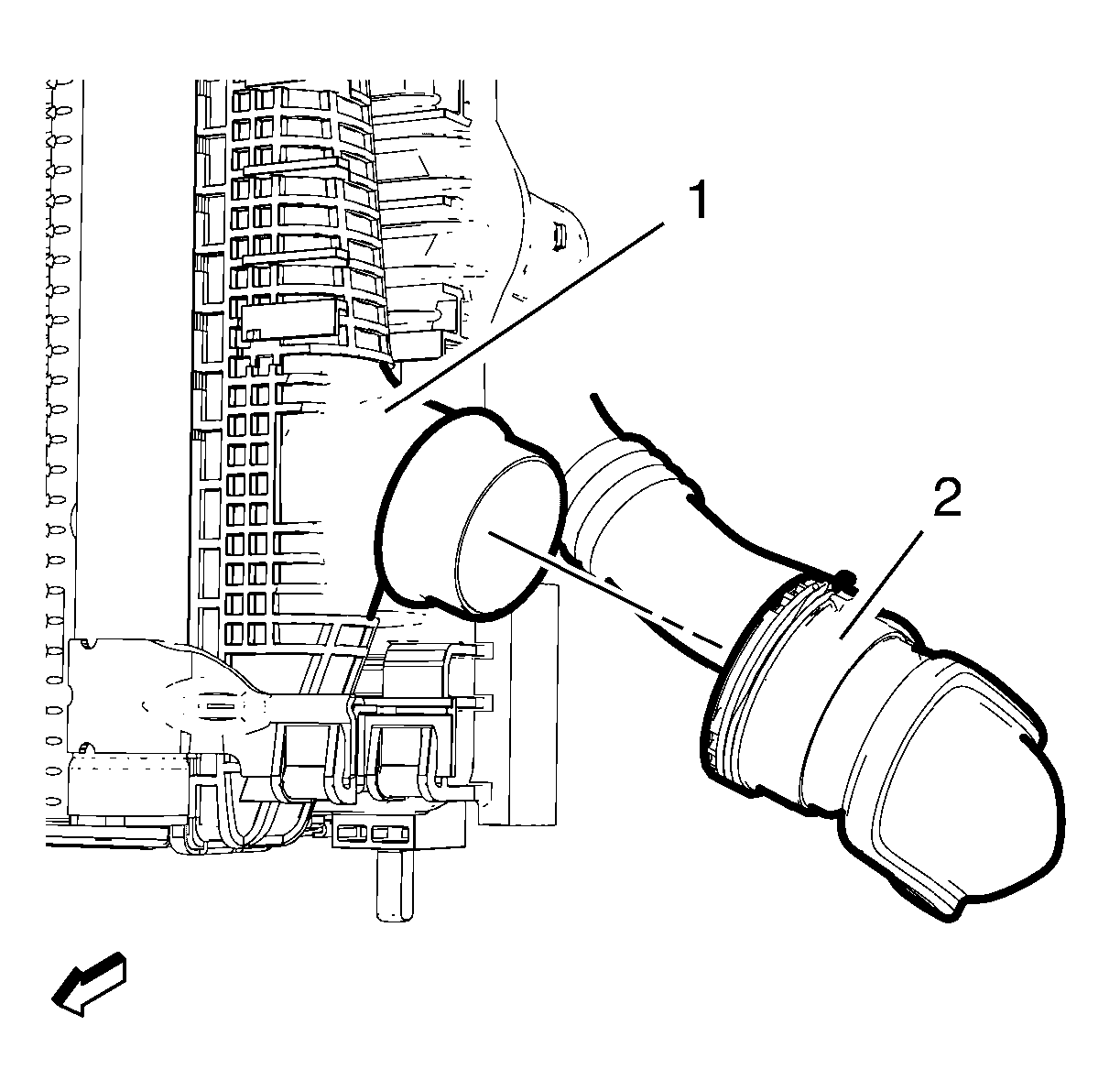

    Fig 1: Charge Air Cooler Outlet Air Hose
    GM2538089Courtesy of GENERAL MOTORS COMPANY
  2. Install the charge air cooler outlet air hose (2) to the charge air cooler (1).
  3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  4. Install the charger air cooler outlet air hose (3) to the throttle body.

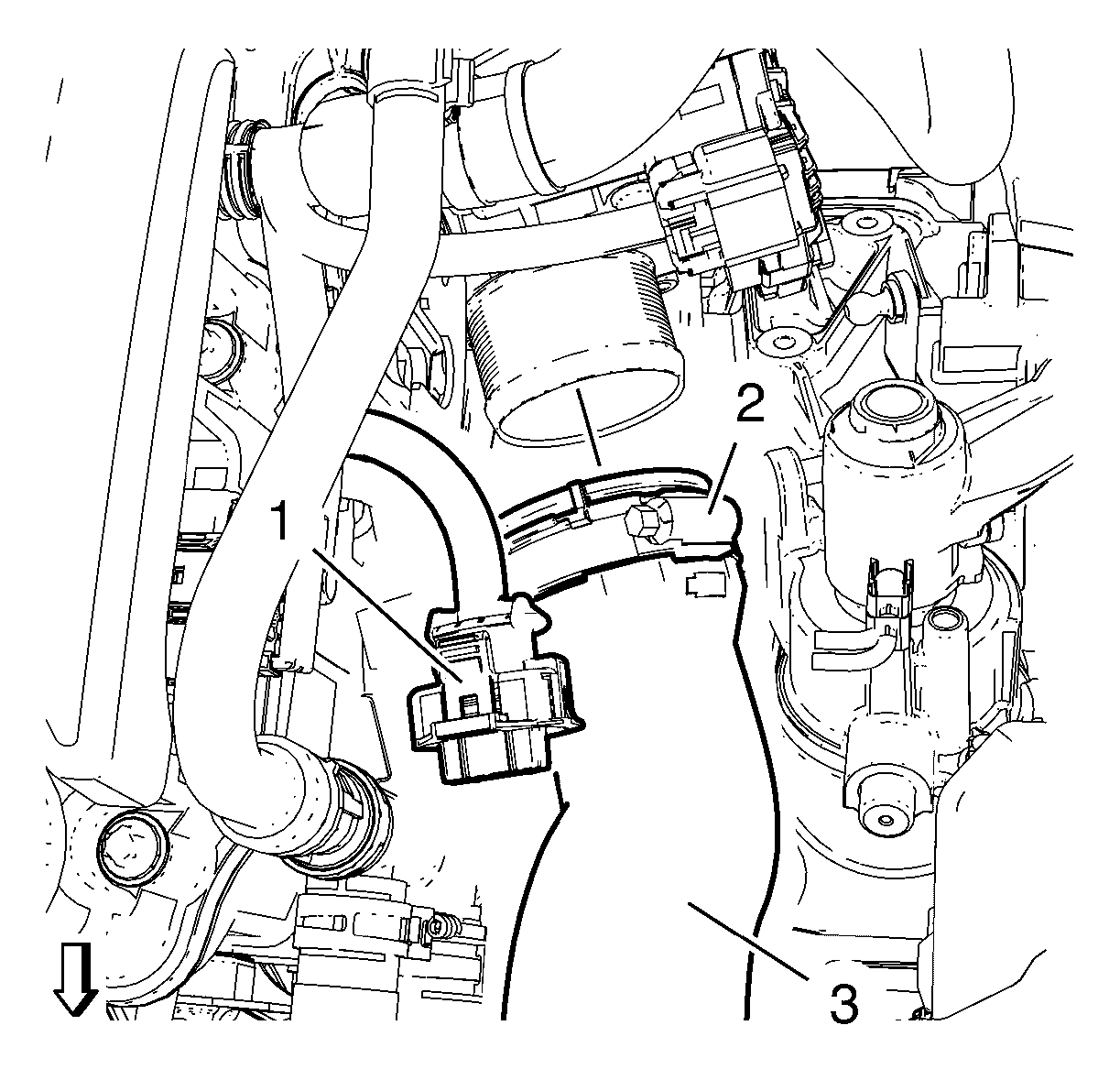

    Fig 2: Charge Air Cooler Outlet Air Hose
    GM2192306Courtesy of GENERAL MOTORS COMPANY
  5. Install and tighten the charger air cooler outlet air hose clamp (2).
  6. Connect the turbocharger pressure sensor wiring harness plug (1).
  7. Connect the battery. Refer to Battery Negative Cable Disconnection and Connection .
  8. Close the hood.
