Installation Procedure

  1. Install the charger air cooler inlet air hose (2) to the charge air cooler until it engages audible.

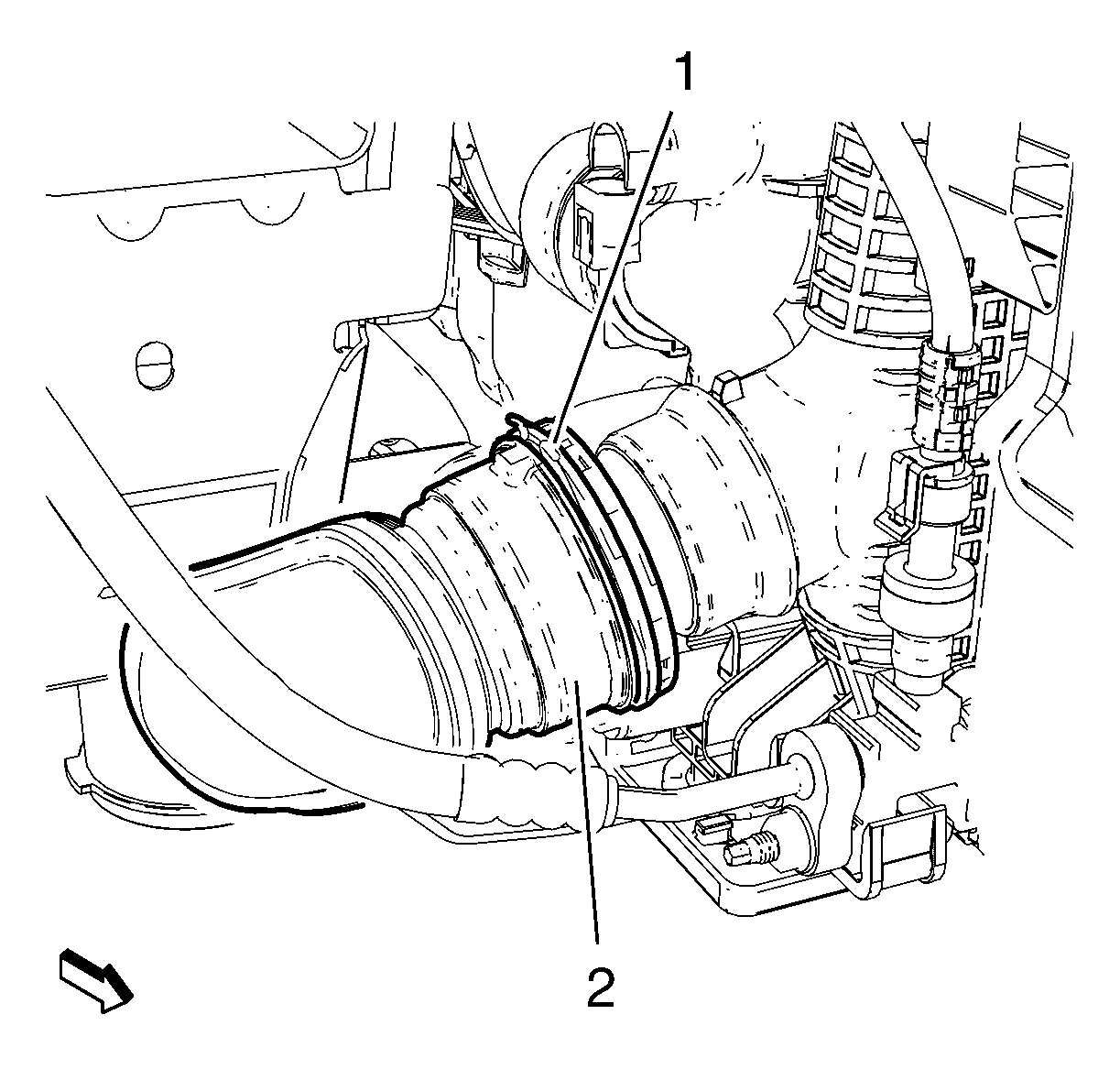

    Fig 1: Charge Air Cooler Inlet Air Hose Quick Connector
    GM2192316Courtesy of GENERAL MOTORS COMPANY
  2. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
    CAUTION: Refer to Fastener Caution .
  3. Install the charger air cooler inlet air hose (2) to the turbocharger.

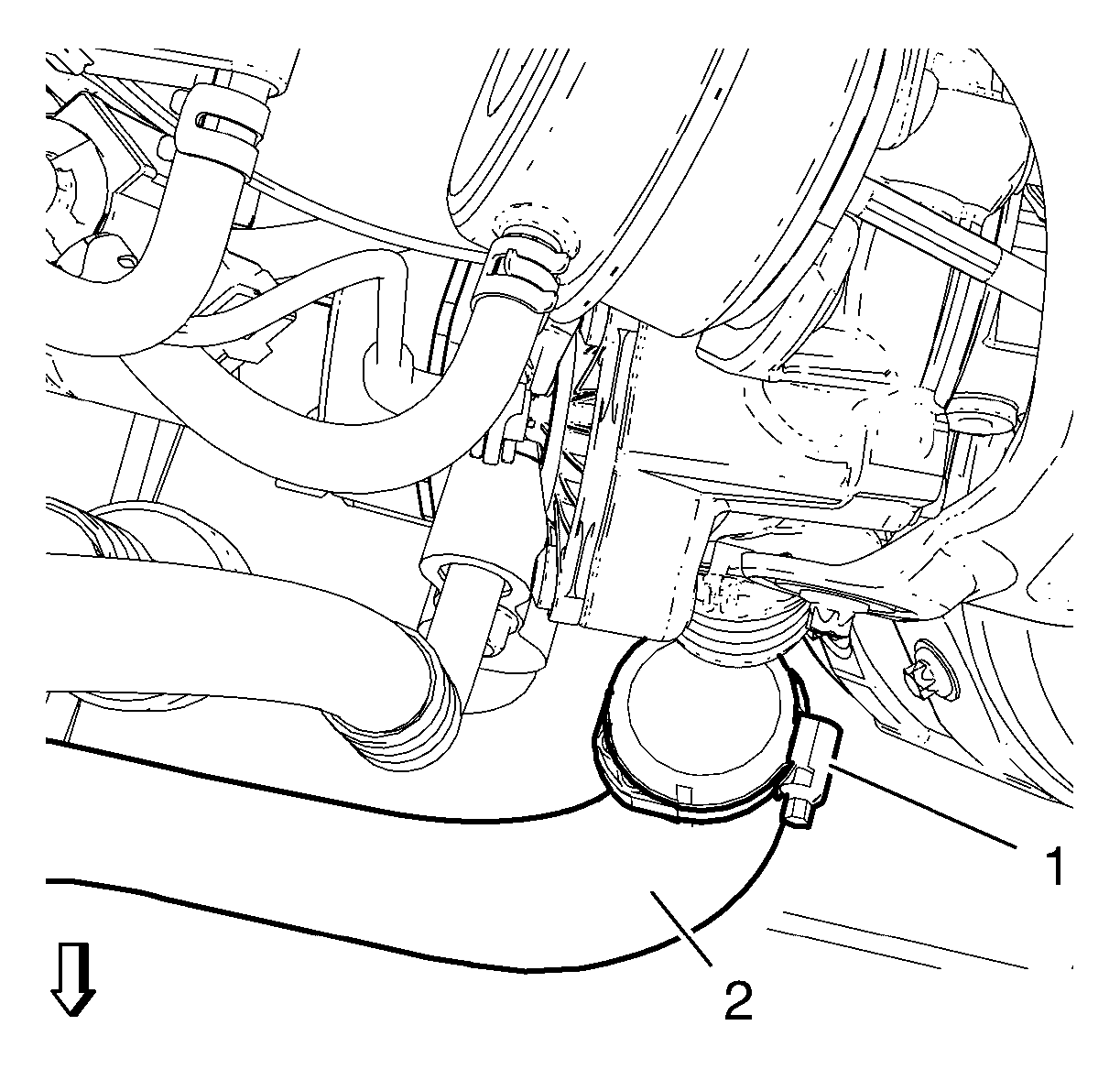

    Fig 2: Charge Air Cooler Inlet Air Hose
    GM2192317Courtesy of GENERAL MOTORS COMPANY
  4. Install and tighten the charger air cooler inlet air hose clamp (1).
  5. Connect the battery. Refer to Battery Negative Cable Disconnection and Connection .
  6. Close the hood.
