Charge Air Bypass Valve Replacement

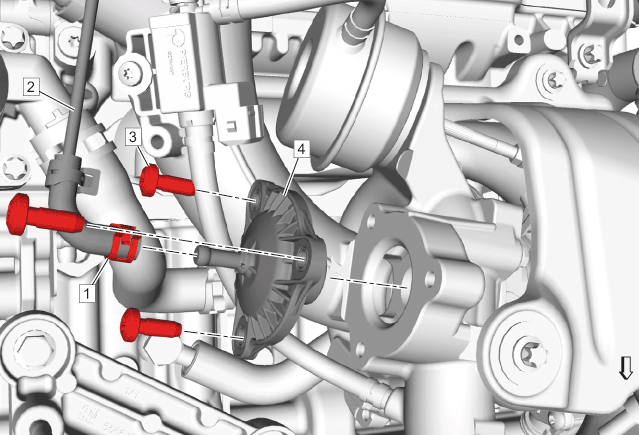

Fig 1: Charge Air Bypass Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Battery Negative Cable Disconnection and Connection »Disconnect
1	Charge Air Bypass Valve Tube Clamp
2	Charge Air Bypass Valve Tube
3	Charge Air Bypass Valve Bolt (Qty: 3) Tighten 6 N.m (53 lb ft)
4	Charge Air Bypass Valve NOTE: If nipple is broken off, remove broken end from solenoid hose end. Verify that hose is not damage and clamp is in good condition. Replace solenoid assembly with hoses if required. Any damage to cover sealing or plunger sealing areas, Verify that there is no debris in compressor housing valve cavity. Special Tools GE-23738-A Vacuum Pump Equivalent regional tools:Special Tools (Diagnostic Tools) and Special Tools (Removal and Installation)
