Charge Air Bypass Regulator Solenoid Valve Replacement

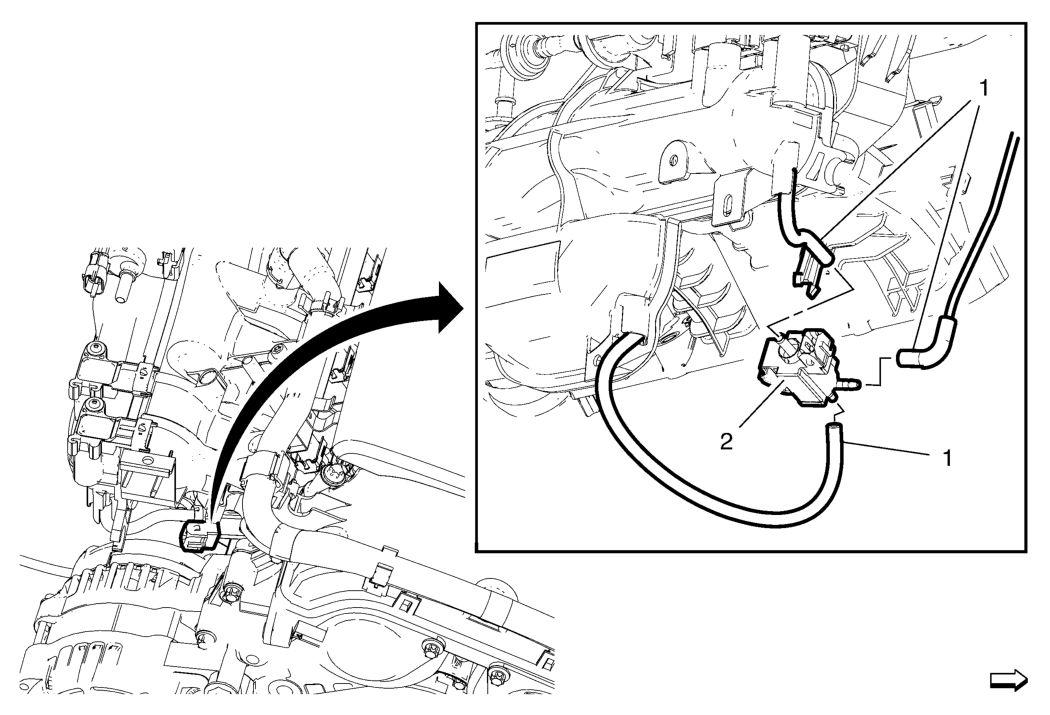

Fig 1: Charge Air Bypass Regulator Solenoid Valve
GM2549898Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Charge Air Bypass Regulator Solenoid Valve Hose (Qty: 3)
Procedure
Disconnect the electrical connector.
2 Charge Air Bypass Regulator Solenoid Valve
