Removal Procedure

  1. Disconnect the intake camshaft position actuator solenoid valve wiring harness plug (3).

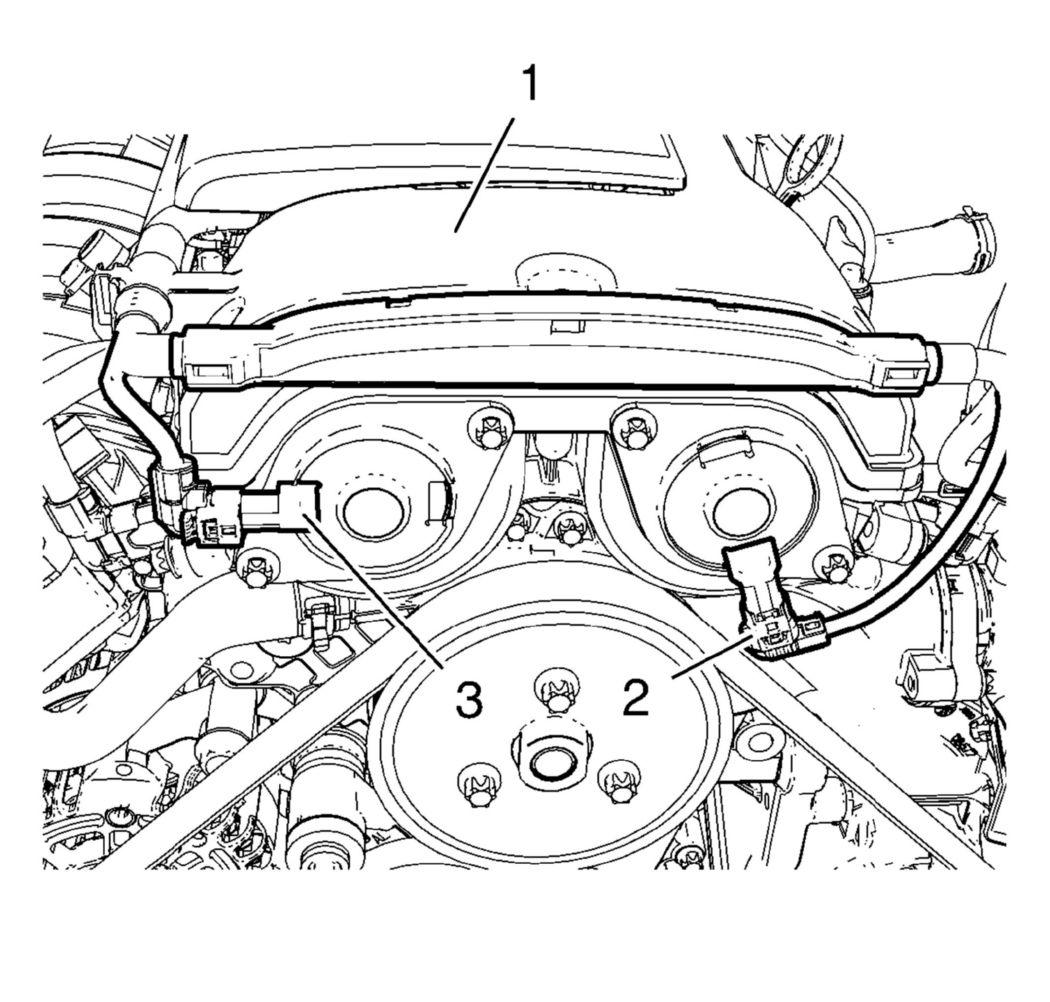

    Fig 1: ECM Wiring Harness
    GM2191792Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the exhaust camshaft position actuator solenoid valve wiring harness plug (2).
  3. Unclip ECM wiring harness (1) from camshaft cover.
  4. Remove the 4 camshaft position actuator solenoid valve bolts (1).

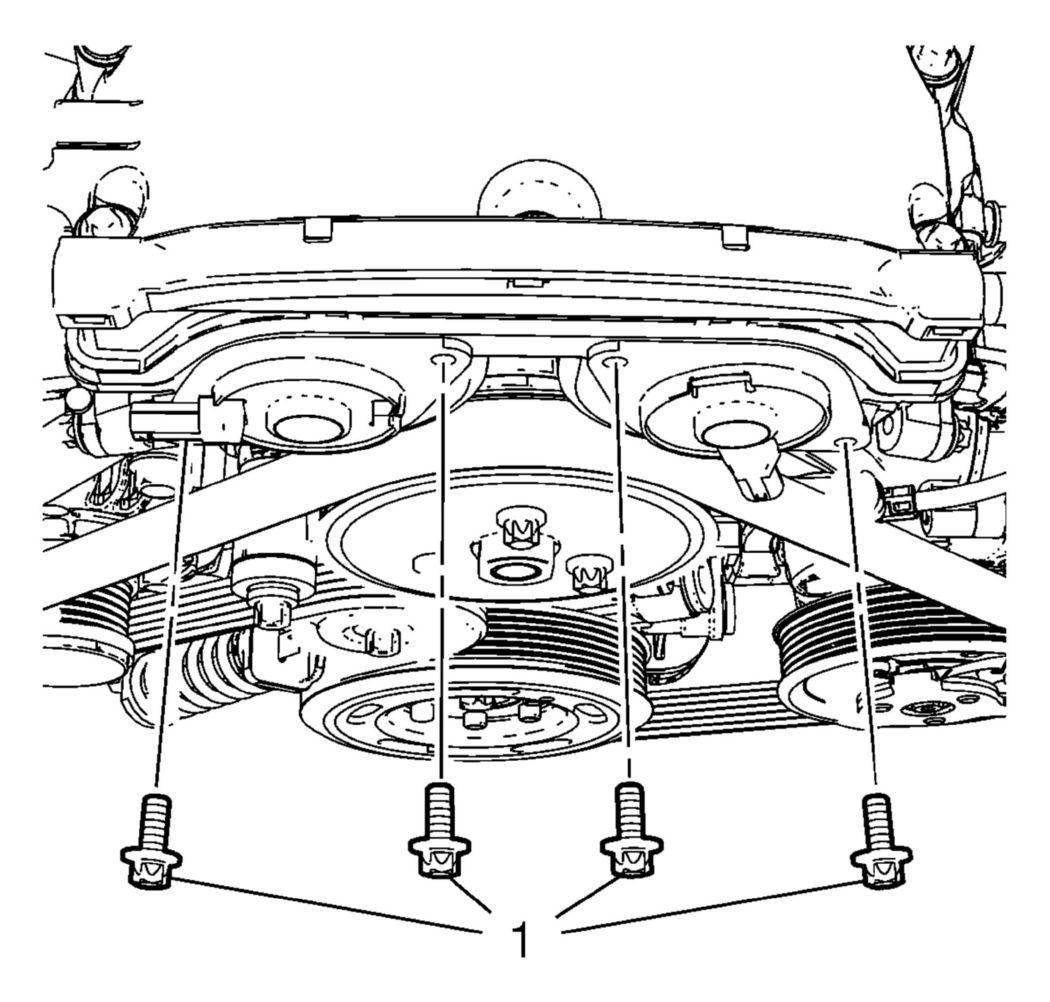

    Fig 2: Camshaft Position Actuator Solenoid Valve Bolts
    GM2191794Courtesy of GENERAL MOTORS COMPANY
  5. Carefully rotate the intake camshaft position actuator solenoid valve (1) counter clockwise as shown.

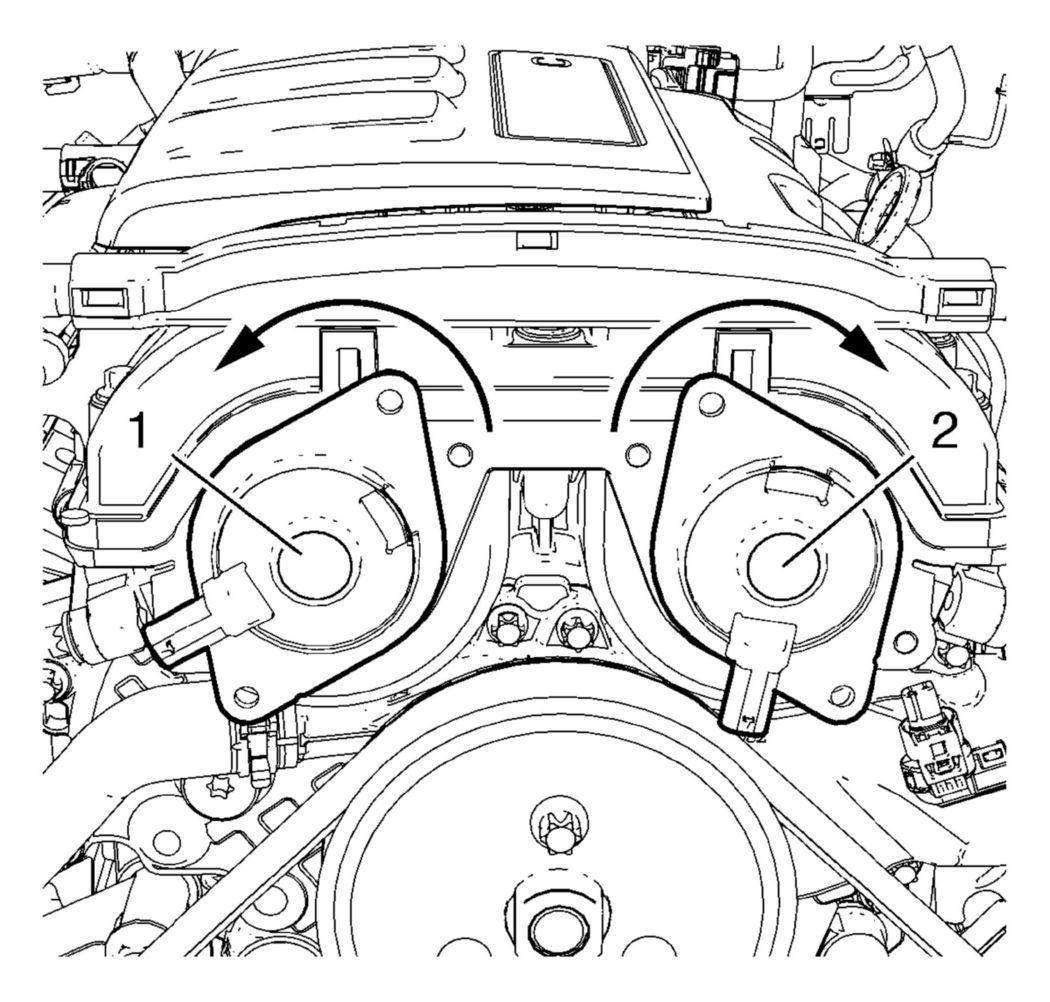

    Fig 3: Intake Camshaft Position Actuator Solenoid Valve And Exhaust Camshaft Position Actuator Solenoid Valve
    GM2191798Courtesy of GENERAL MOTORS COMPANY
  6. Carefully rotate the exhaust camshaft position actuator solenoid valve (2) clockwise as shown.
  7. Carefully remove the 2 camshaft position actuator solenoid valves (2) and the seal rings (1).

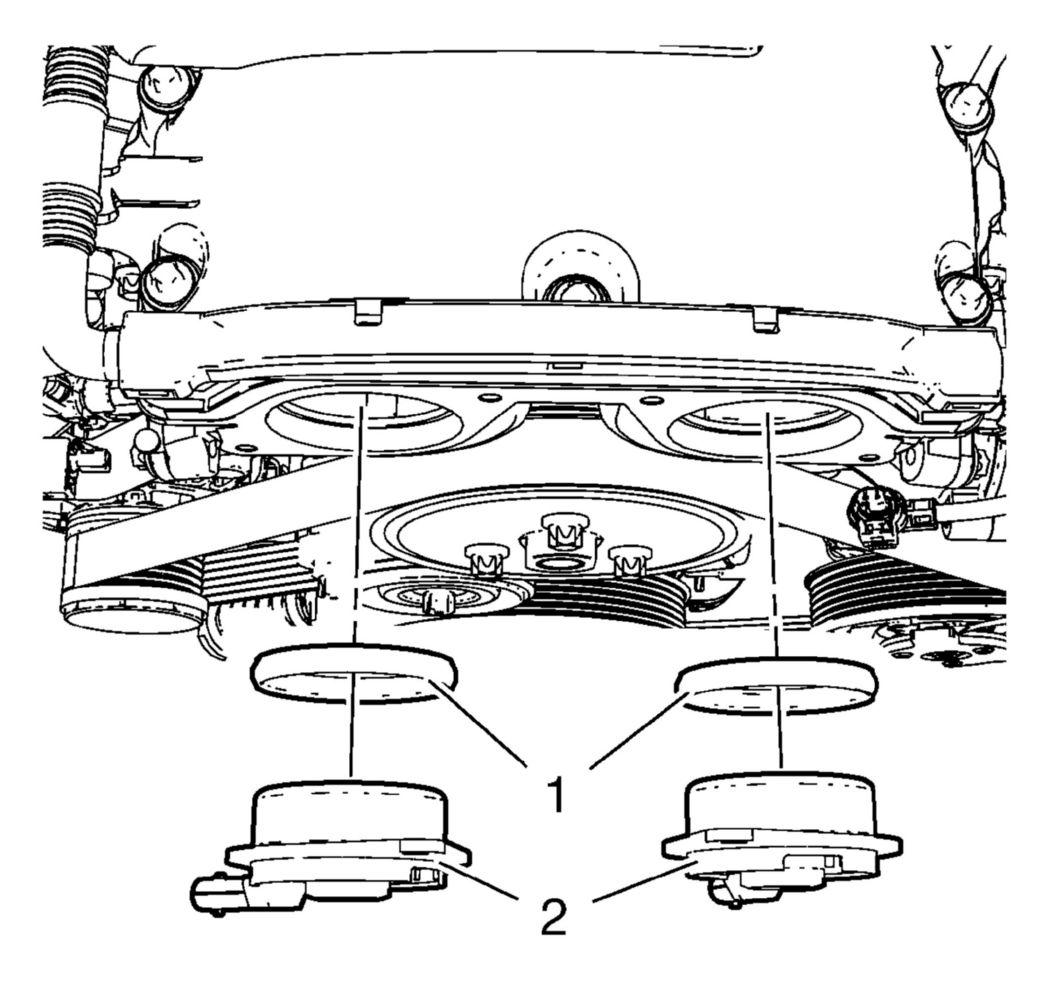

    Fig 4: Camshaft Position Actuator Solenoid Valves
    GM2191796Courtesy of GENERAL MOTORS COMPANY
    CAUTION: The camshaft position actuator solenoid valves must be kept parallel to the engine front cover during removal and installation. The camshaft position actuator solenoid valves can be damaged if they become wedged or stuck during this process.
