Fuel Controls - Fuel Injectors and Ignition Controls

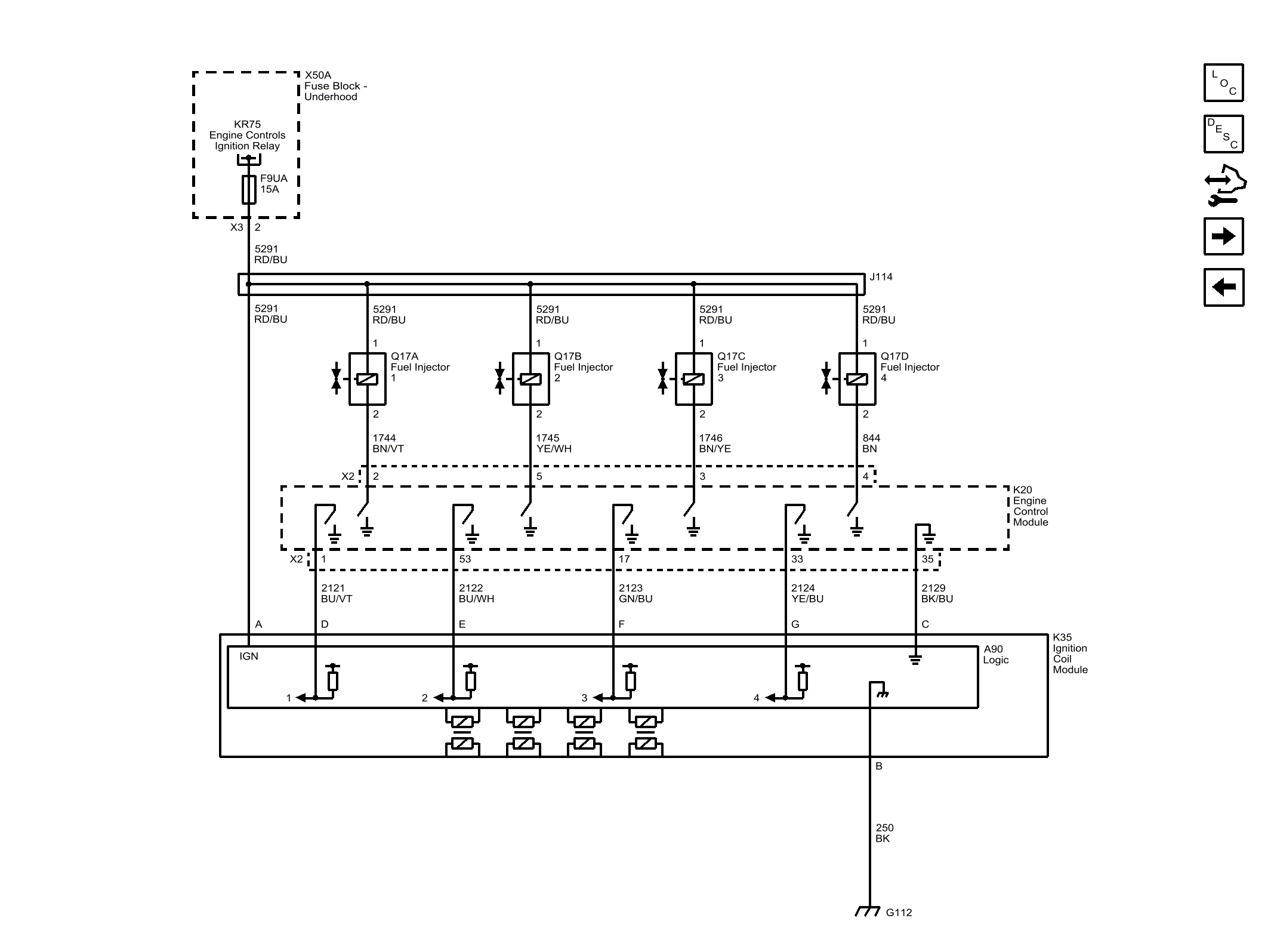

Fig 1: Fuel Controls - Fuel Injectors and Ignition Controls
GM3814089Courtesy of GENERAL MOTORS COMPANY
