Camshaft, Crankshaft and Knock Sensors, Camshaft Actuators

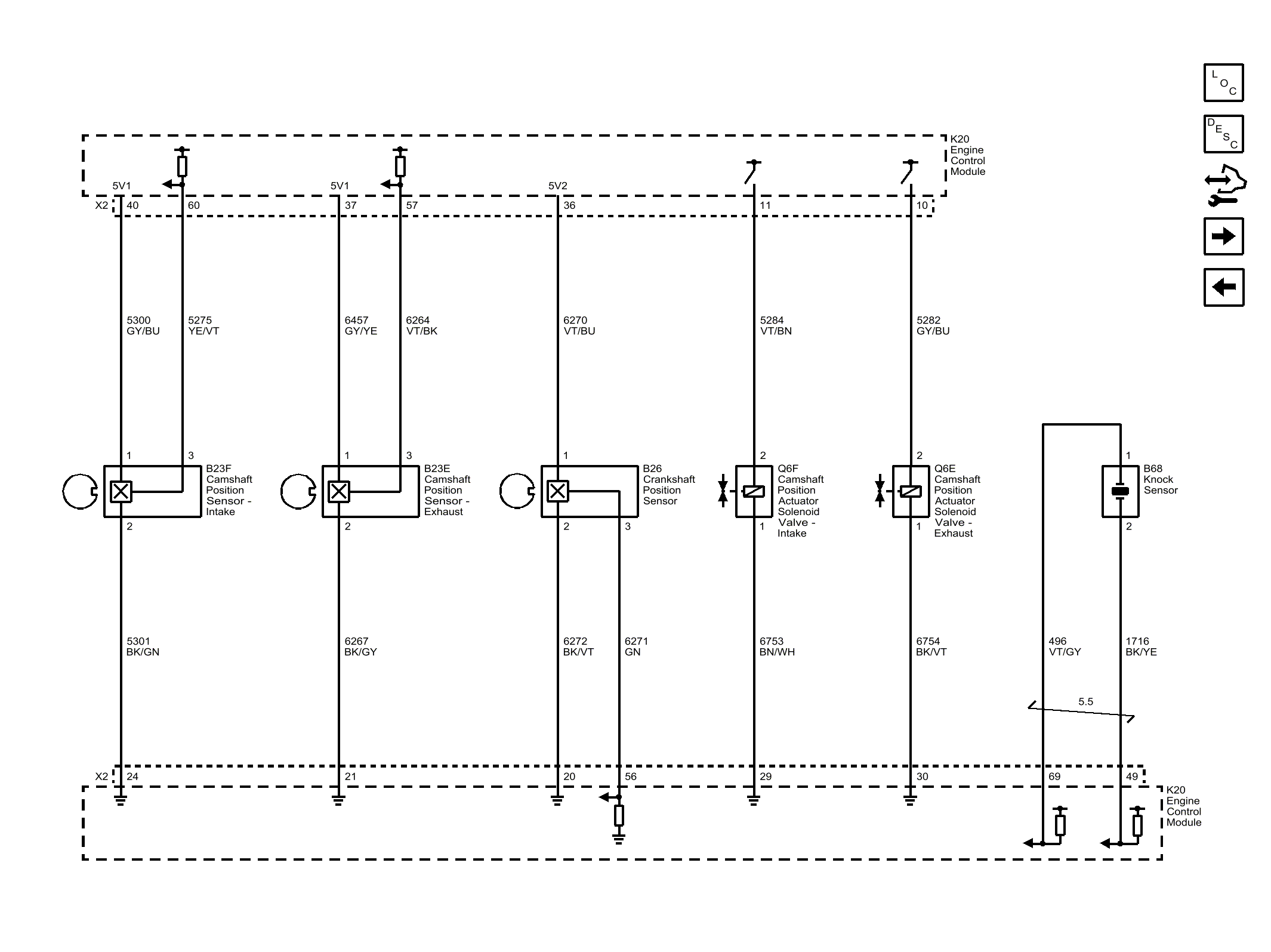

Fig 1: Camshaft, Crankshaft and Knock Sensors, Camshaft Actuators

GM3814088

Courtesy of GENERAL MOTORS COMPANY
