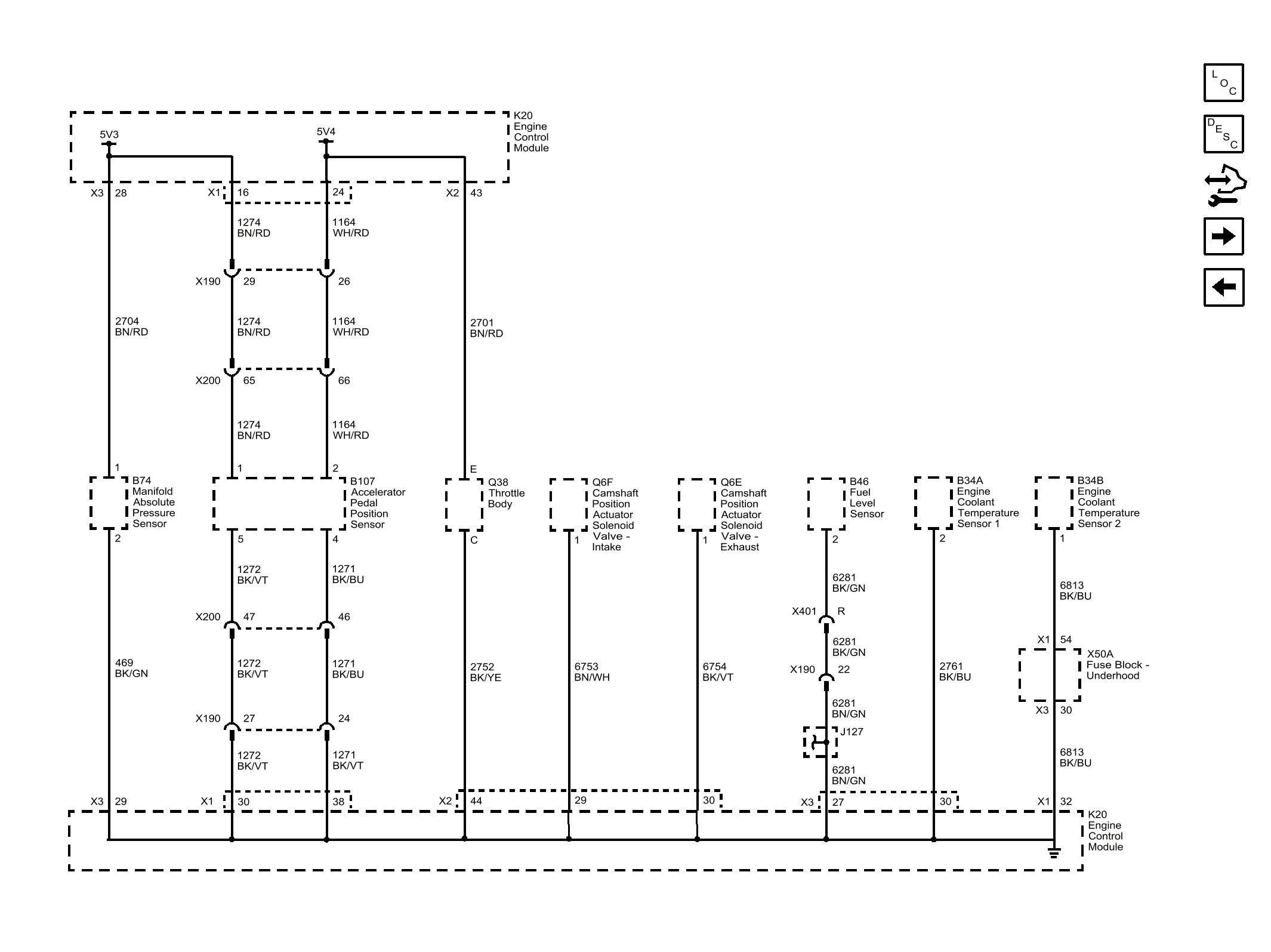

Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Controls And Fuel - 1.4L (LUJ, LUV) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> 5V and Low Reference Bus (2 of 2)
