Starting and Charging Wiring Schematics: Starting

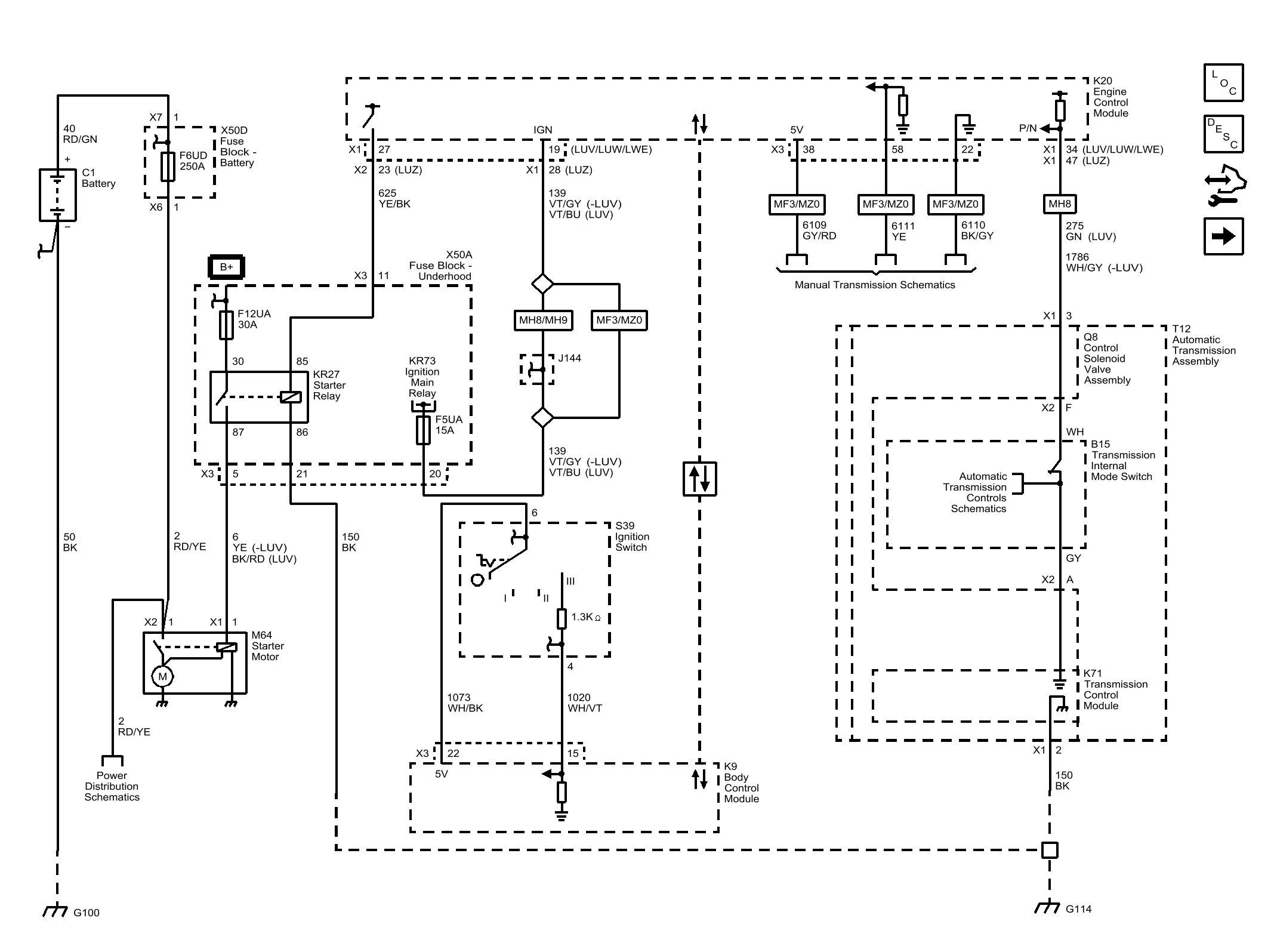

Fig 1: Starting

GM3814464

Courtesy of GENERAL MOTORS COMPANY
