Starting and Charging Wiring Schematics: Charging

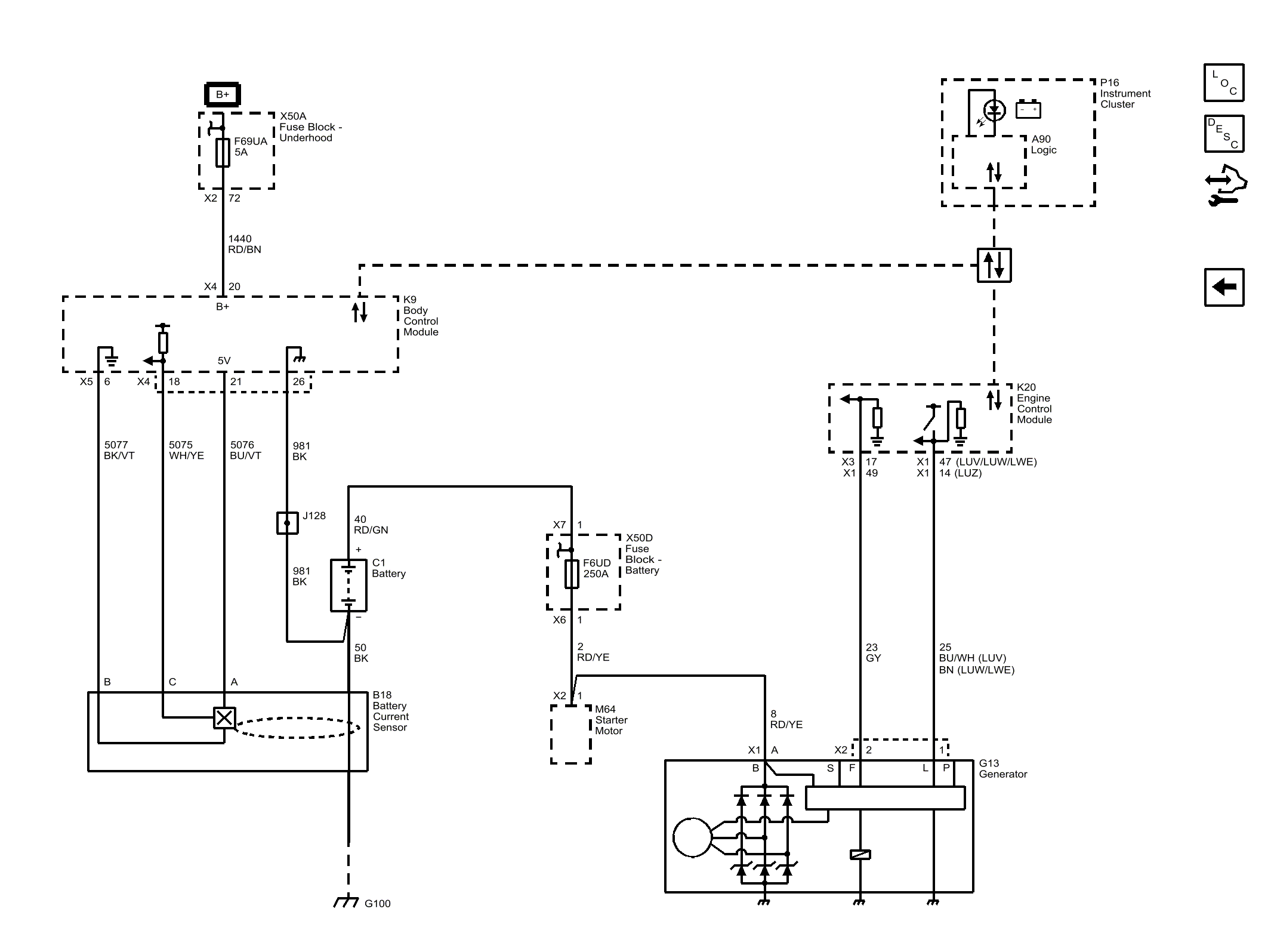

Fig 1: Charging

GM3814466

Courtesy of GENERAL MOTORS COMPANY
