Starter Replacement (2.0L Diesel LUZ)

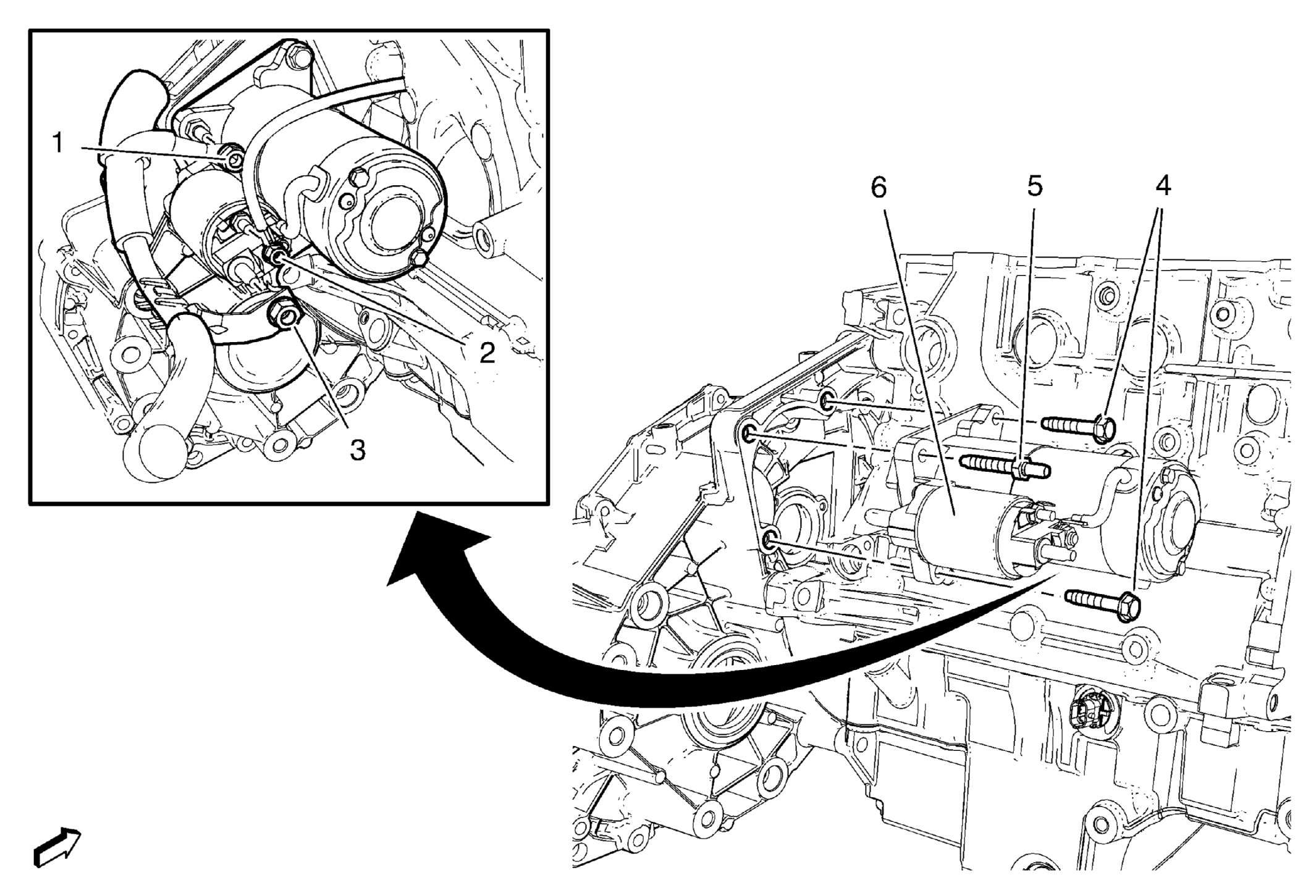

Fig 1: Starter Replacement (2.0L Diesel LUZ)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . If equipped, remove the engine shield. Refer to Engine Shield Replacement .
1	Starter Ground Cable Nut CAUTION: Refer to Fastener Caution . Tighten 17 N.m (13 lb ft)
2	Starter Positive Cable Nut (M6)
3	Starter And Generator Positive Cable Nut Tighten 13 N.m (115 lb in)
4	Starter Bolt (Qty: 2) Tighten 22 N.m (16 lb ft)
5	Starter Stud Tighten 22 N.m (16 lb ft)
6	Starter
