Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. If equipped, remove the front compartment splash shield. Refer to Front Compartment Insulator Replacement .
  4. If equipped, remove the engine shield. Refer to Engine Shield Replacement .
  5. Remove the starter and generator positive cable nut (2).

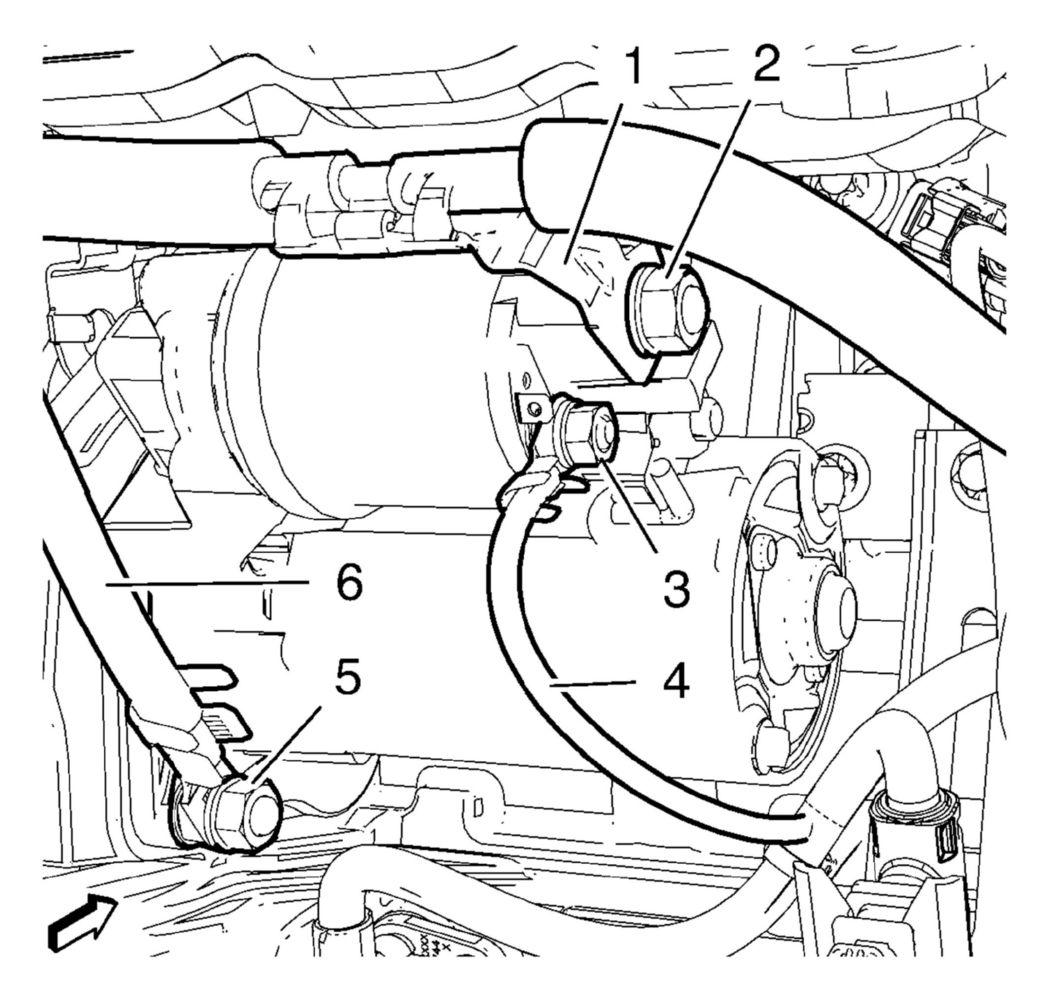

    Fig 1: Generator Positive Cable, Starter Positive Cable And Ground Cable
    GM2191724Courtesy of GENERAL MOTORS COMPANY
  6. Remove the starter and generator positive cable (1).
  7. Remove the starter positive cable nut (3).
  8. Remove the starter positive cable (4) from the starter.
  9. Remove the starter ground cable nut (5).
  10. Remove the ground cable (6).
  11. Remove the upper starter bolt (2) and the washer (1).

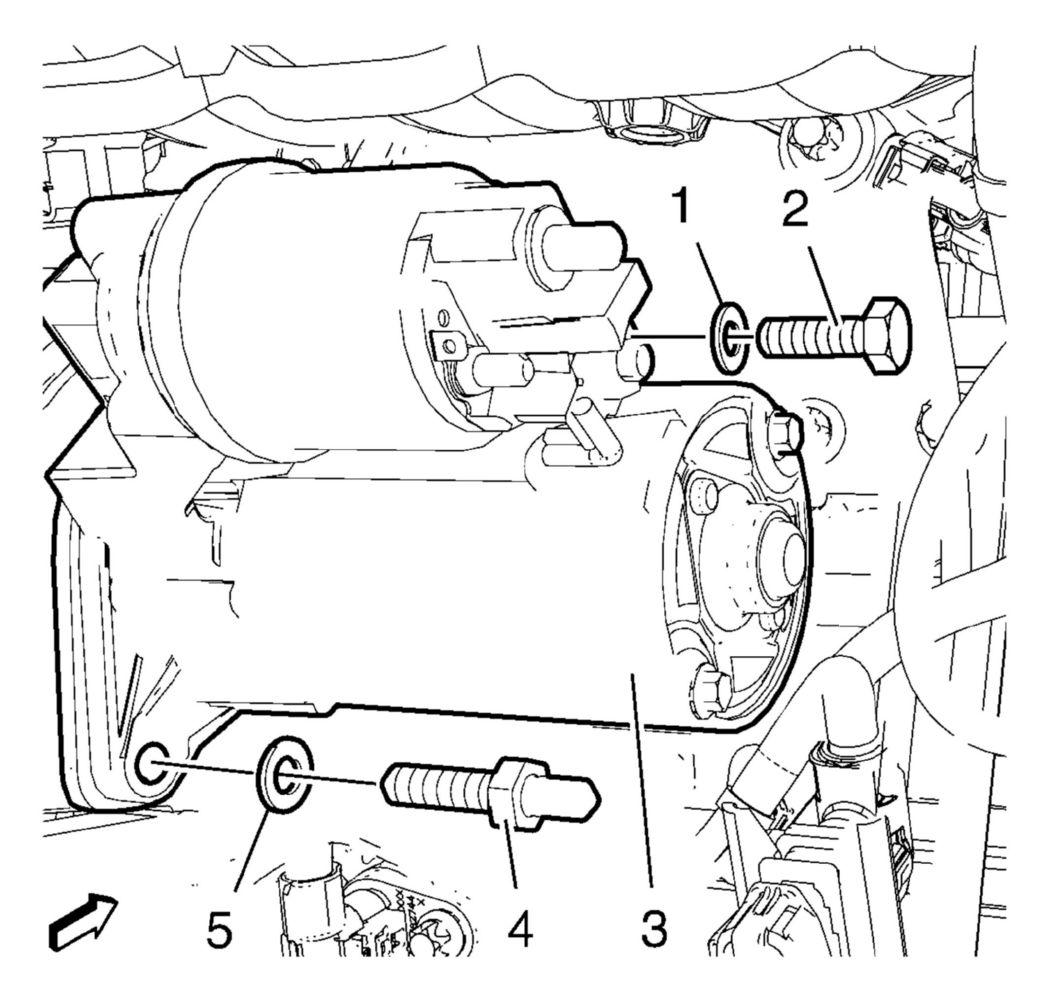

    Fig 2: Starter
    GM2191725Courtesy of GENERAL MOTORS COMPANY
  12. Remove the starter bolt stud (4) and the washer (5).
  13. Remove the starter (3).
