Removal Procedure

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Reposition the engine control module. Refer to Engine Control Module Replacement .
Unlock the retaining tab (2) on the battery fuse box cover.

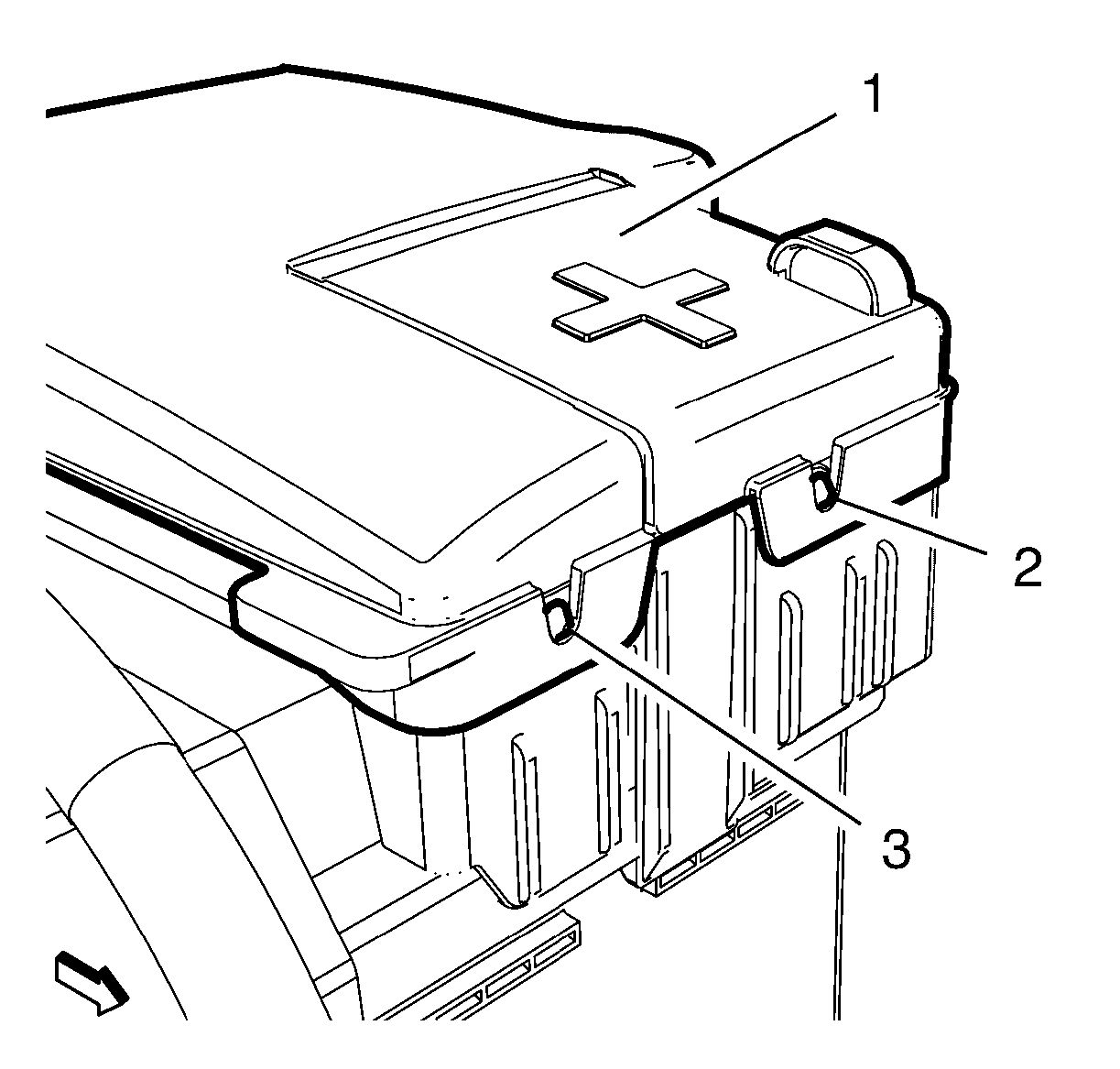

Fig 1: Battery Fuse Box Flap & Retaining Tabs
Courtesy of GENERAL MOTORS COMPANY
Open the battery fuse box flap (1).
Unlock the retaining tab (3).
Open the battery fuse box cover (1).

Fig 2: Fuse Box Cover, Battery Cable And Nut
Courtesy of GENERAL MOTORS COMPANY

NOTE: Pull the battery fuse box housing. DO NOT pull the flap.
Remove the battery positive cable to starter nut (2).
Remove the battery positive cable to starter (3) from the battery.
Remove the battery ground cable nut (1).

Fig 3: Battery Negative Cable And Battery Ground Cable Nut
Courtesy of GENERAL MOTORS COMPANY
Remove the ground cable (2).
Unclip the 3 generator and starter cable retainers (1) from the body and from the transmission.

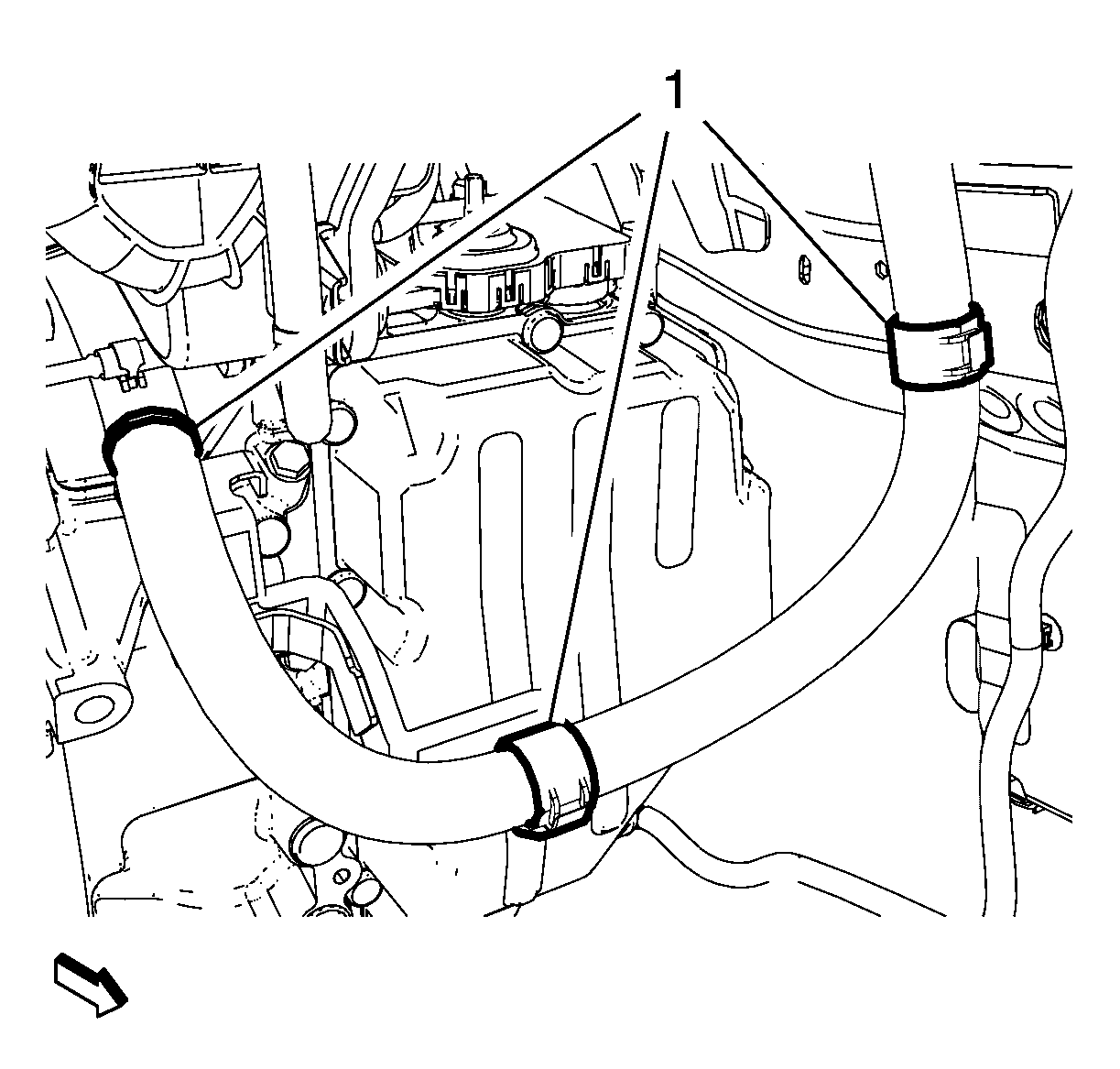

Fig 4: Generator And Starter Cable Retainers
Courtesy of GENERAL MOTORS COMPANY
Unclip the 2 generator and starter cable retainers (1) from the transmission.

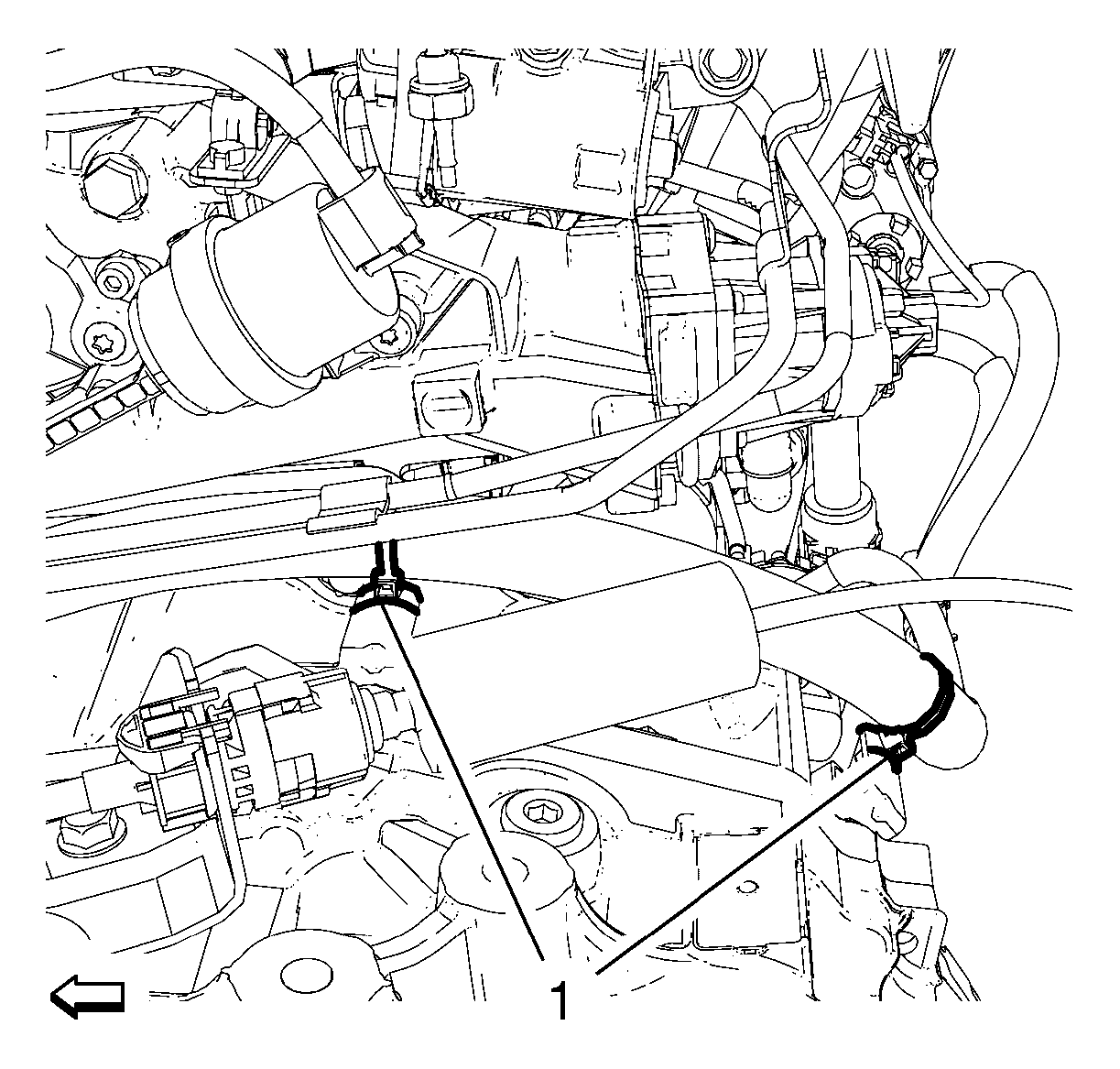

Fig 5: Generator And Starter Cable Retainers
Courtesy of GENERAL MOTORS COMPANY
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
If equipped, remove the engine shield. Refer to Engine Shield Replacement .
Remove the starter ground cable nut (4) and remove the negative cable (1).

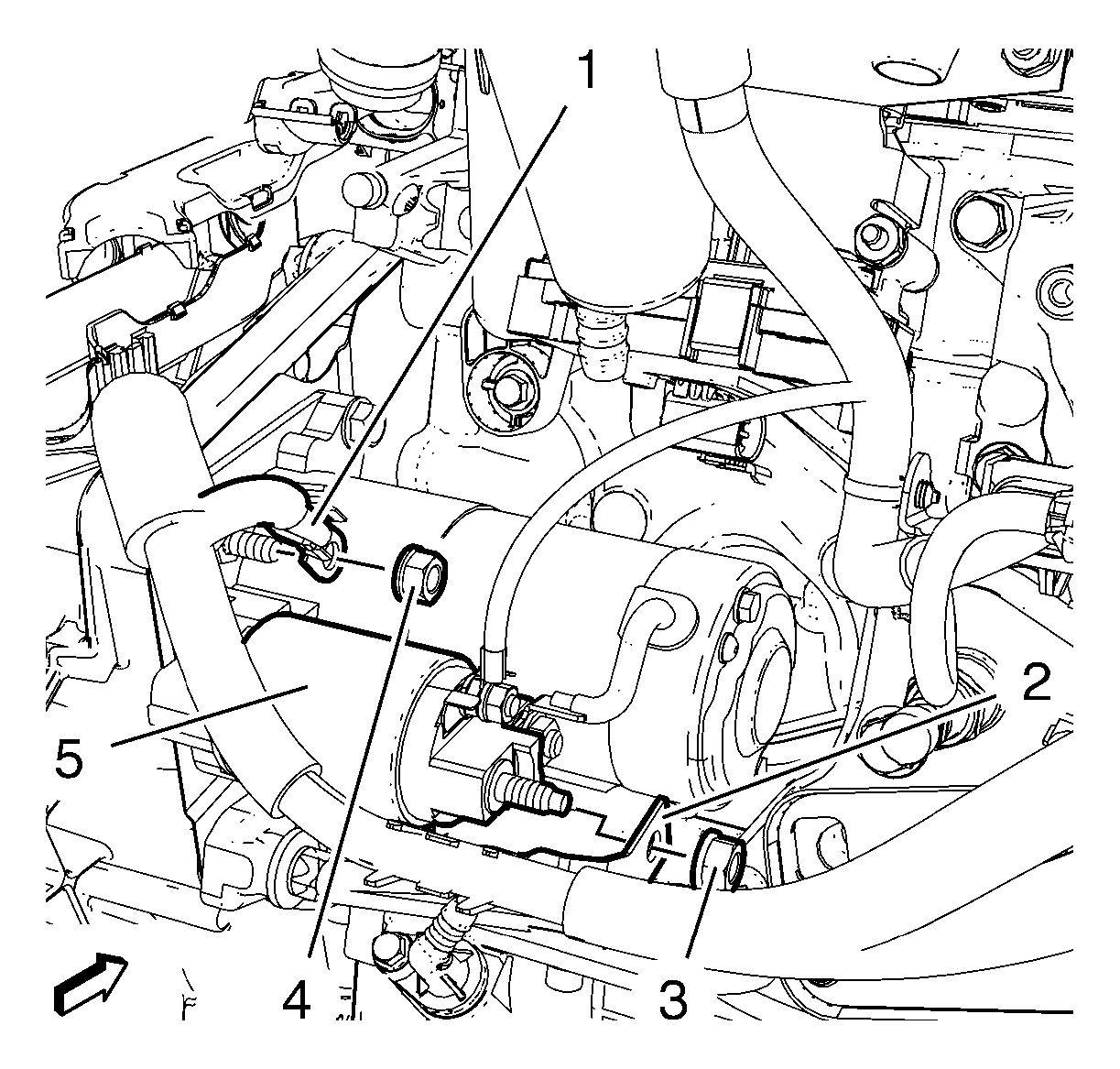

Fig 6: Starter Ground Cable Nut
Courtesy of GENERAL MOTORS COMPANY
Remove the starter and generator positive cable nut (3) and remove the starter and generator positive cable (2).
Remove the generator positive cable nut (1) and remove the generator positive cable (2) from the generator.

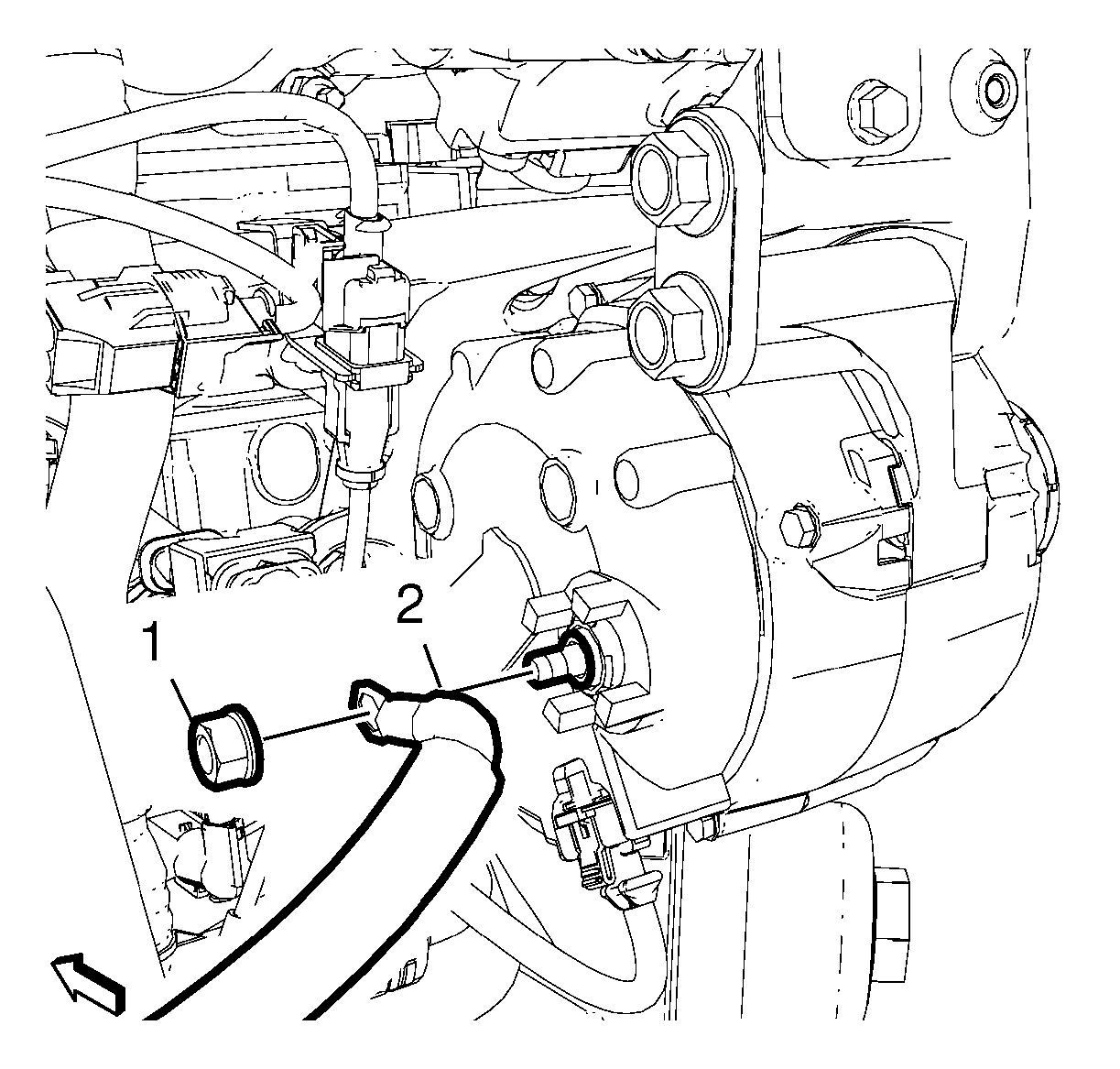

Fig 7: Generator Positive Cable Nut
Courtesy of GENERAL MOTORS COMPANY
Lower the vehicle.
Remove the generator and starter cable from the vehicle.
