Installation Procedure

Install the generator positive cable (2) to the generator.

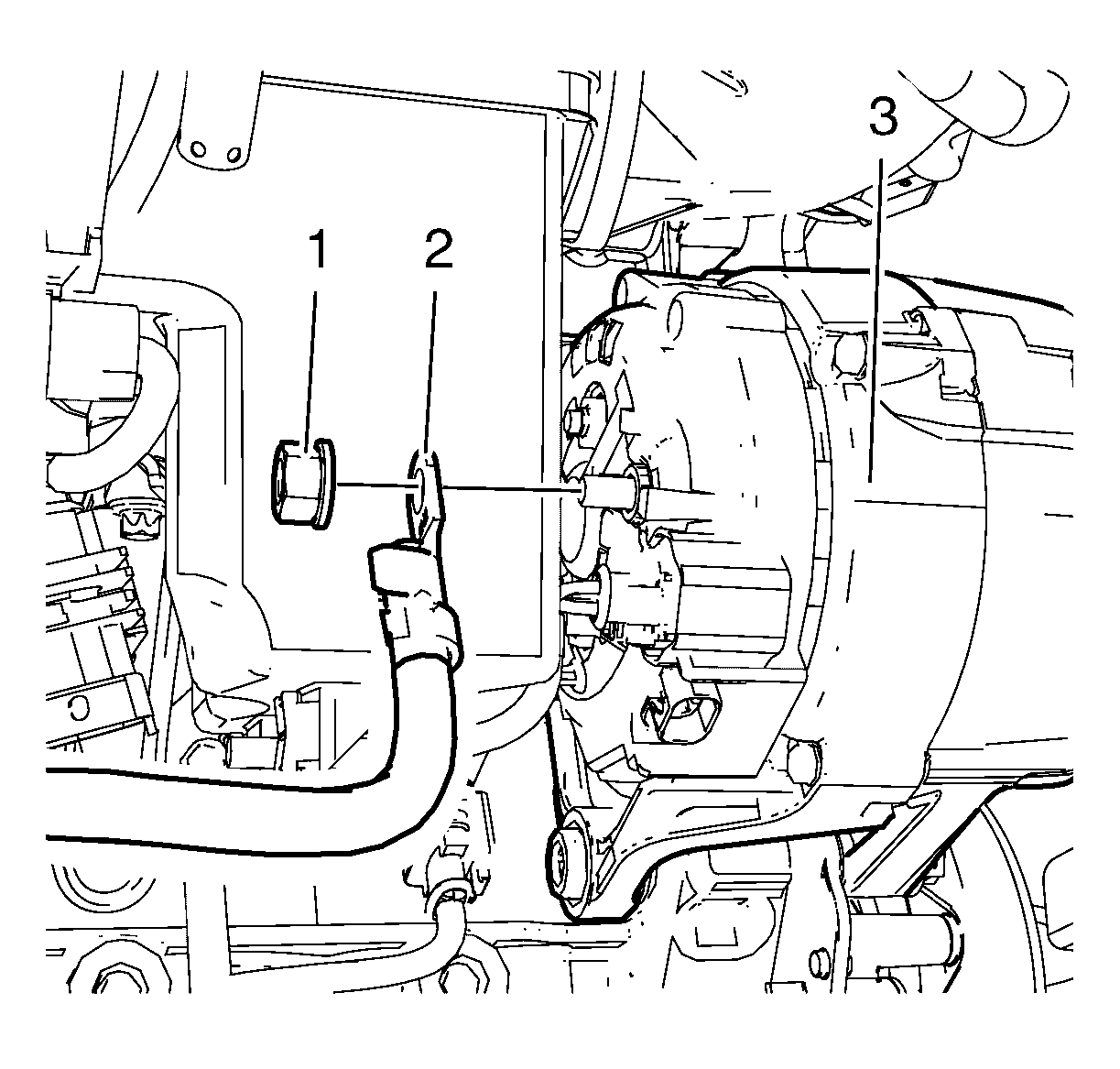

Fig 1: Generator And Generator Positive Cable
Courtesy of GENERAL MOTORS COMPANY
Install the generator positive cable nut (1) and tighten to 12.5 N.m (111 lb in).
CAUTION: Refer to Fastener Caution .
Install the generator and starter positive cable (6)

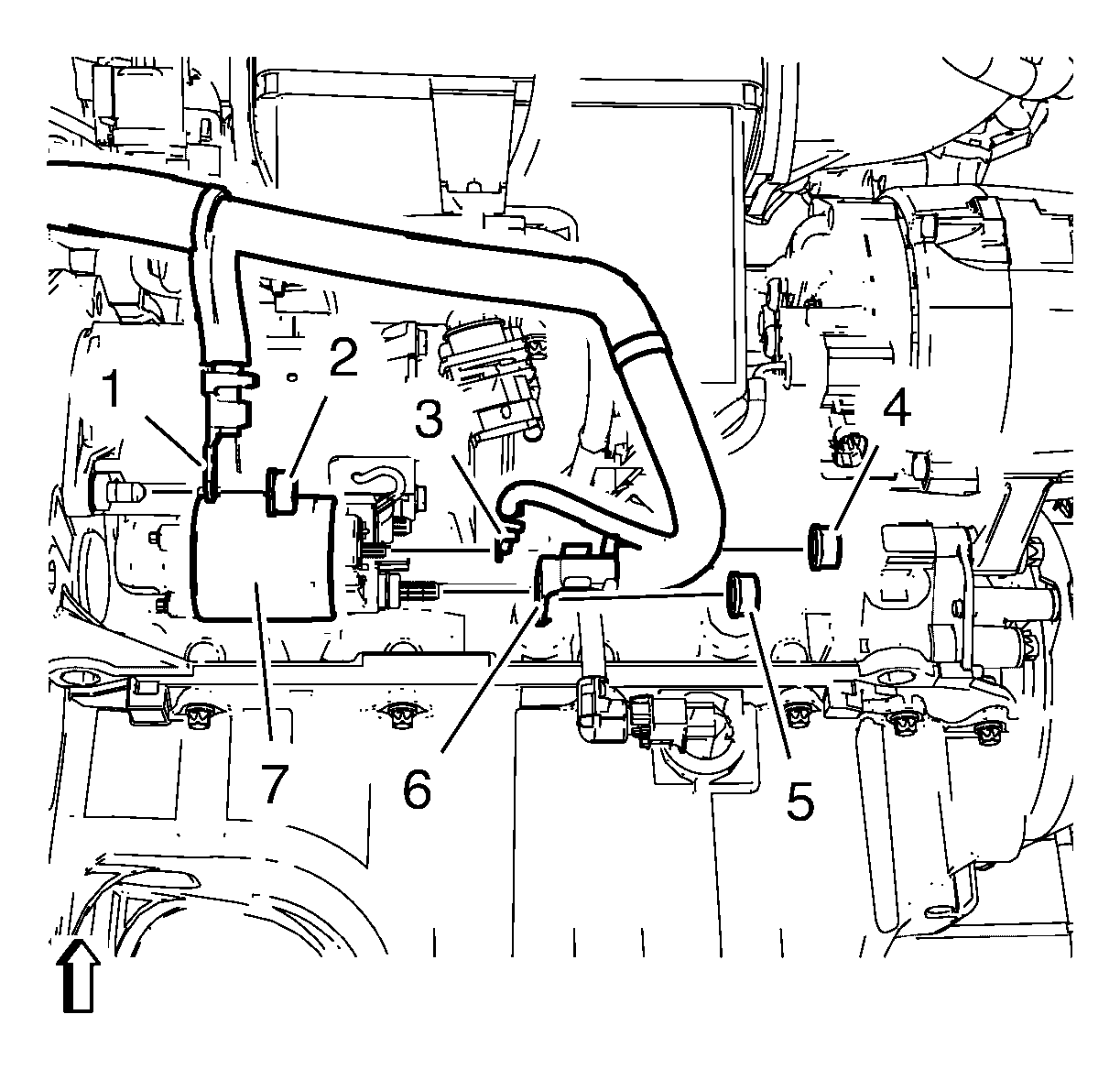

Fig 2: Starter Motor, Negative Cable And Positive Cables
Courtesy of GENERAL MOTORS COMPANY
Install the generator and starter positive cable nut (5) and tighten to 12.5 N.m (111 lb in).
Install the ground cable (1).
Install the ground cable nut (2) and tighten to 20 N.m (15 lb ft).
Lower the vehicle.
Clip in the 3 generator and starter cable retainers (1).

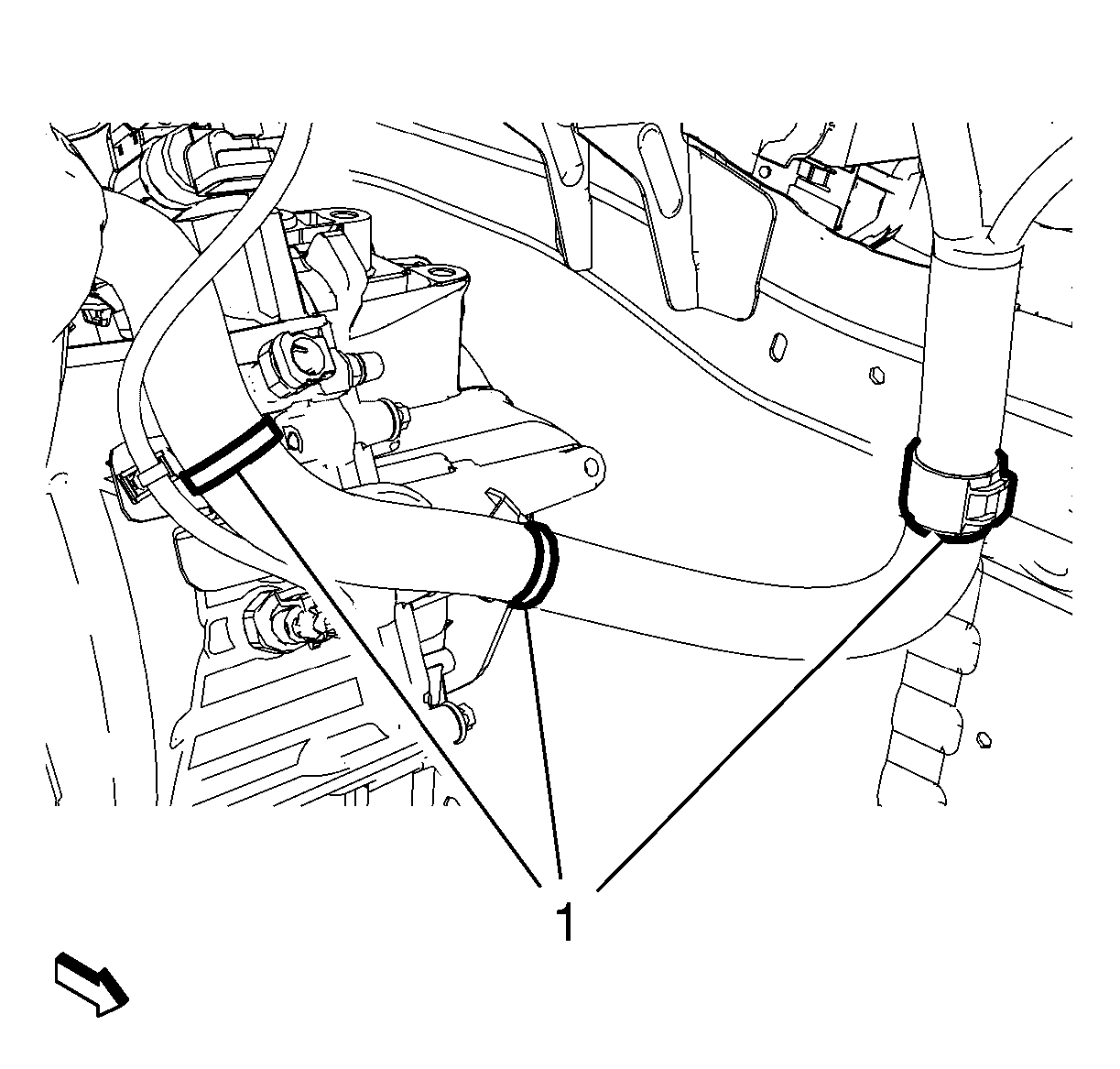

Fig 3: Generator And Starter Cable Retainers
Courtesy of GENERAL MOTORS COMPANY
Clip in the 3 generator and starter cable retainers (1) to the body and to the transmission bracket.

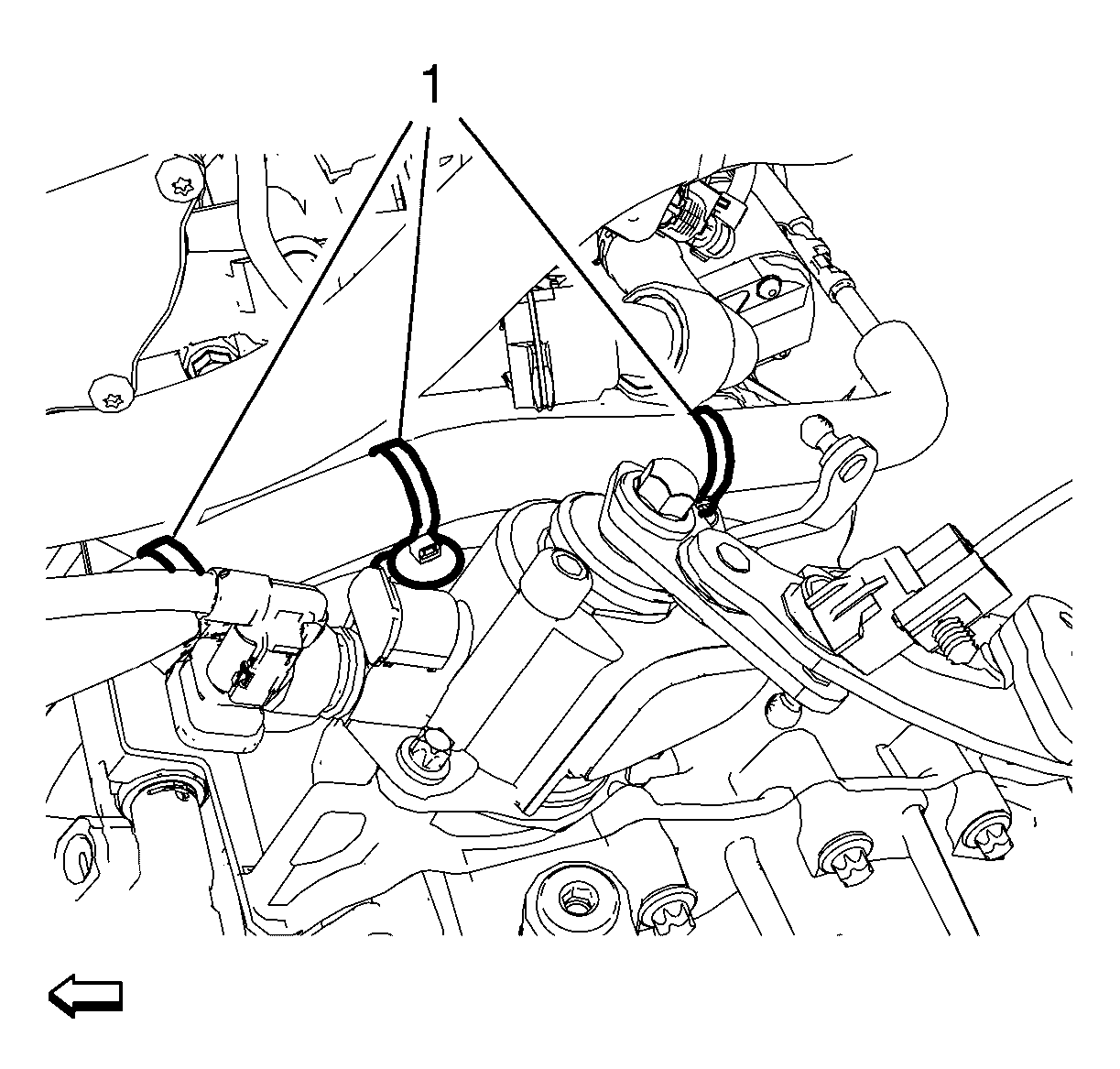

Fig 4: Generator And Starter Cable Retainers
Courtesy of GENERAL MOTORS COMPANY
Install the battery ground cable (2).

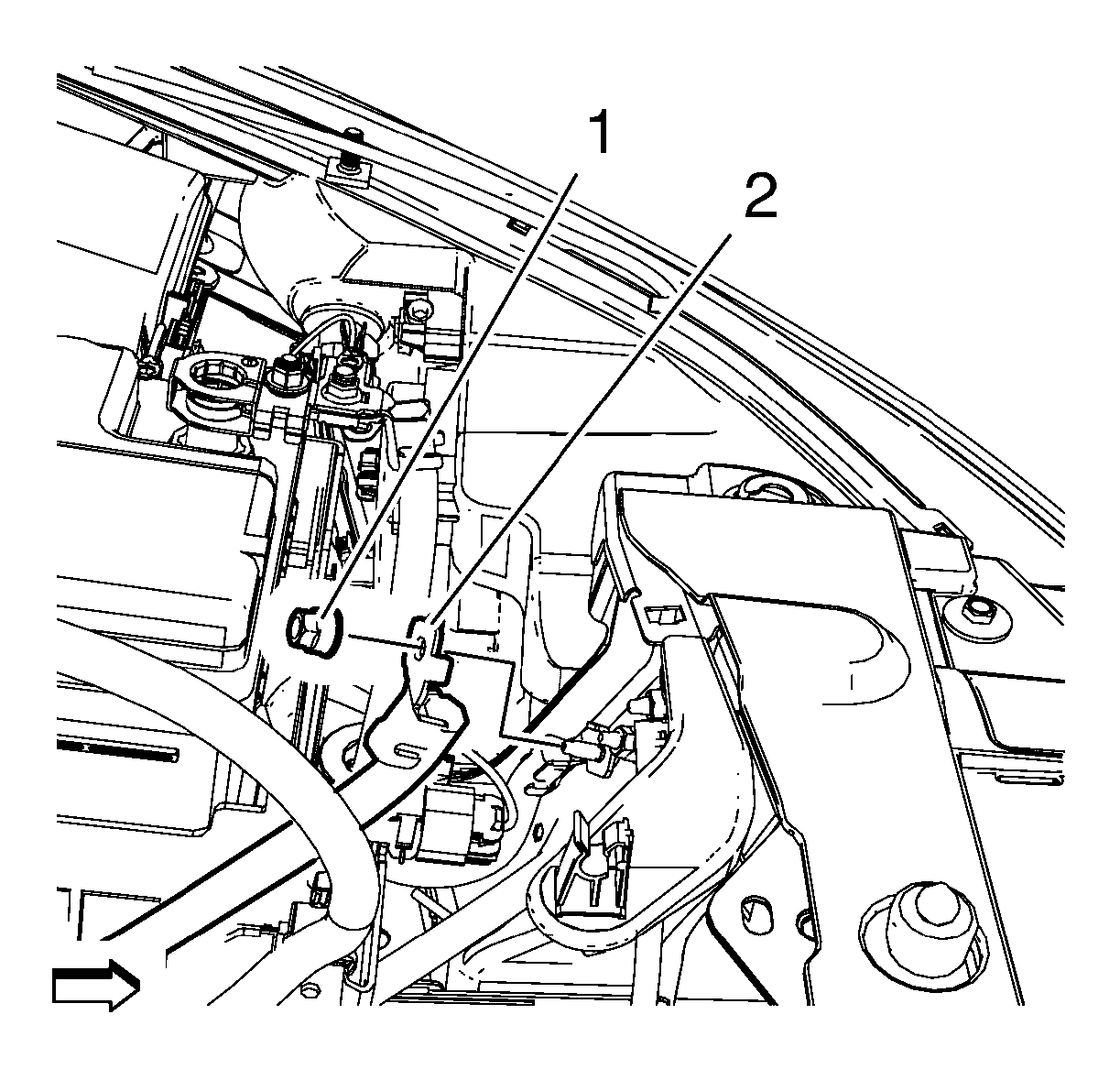

Fig 5: Battery Negative Cable And Battery Ground Cable Nut
Courtesy of GENERAL MOTORS COMPANY
Install the battery negative cable nut (1) and tighten to 9 N.m (80 lb in).
Install the battery positive cable to starter (3) at the battery.

Fig 6: Fuse Box Cover, Battery Cable And Nut
Courtesy of GENERAL MOTORS COMPANY
Install the battery positive cable to starter nut (2) and tighten to 12 N.m (106 lb in).
Close the battery fuse box cover and lock the retaining tabs (1) and (4).

Fig 7: Battery Fuse Box Cover
Courtesy of GENERAL MOTORS COMPANY
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
