Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the generator and air conditioning compressor belt. Refer to Drive Belt Replacement .
  3. Remove the generator wiring harness nut (2).

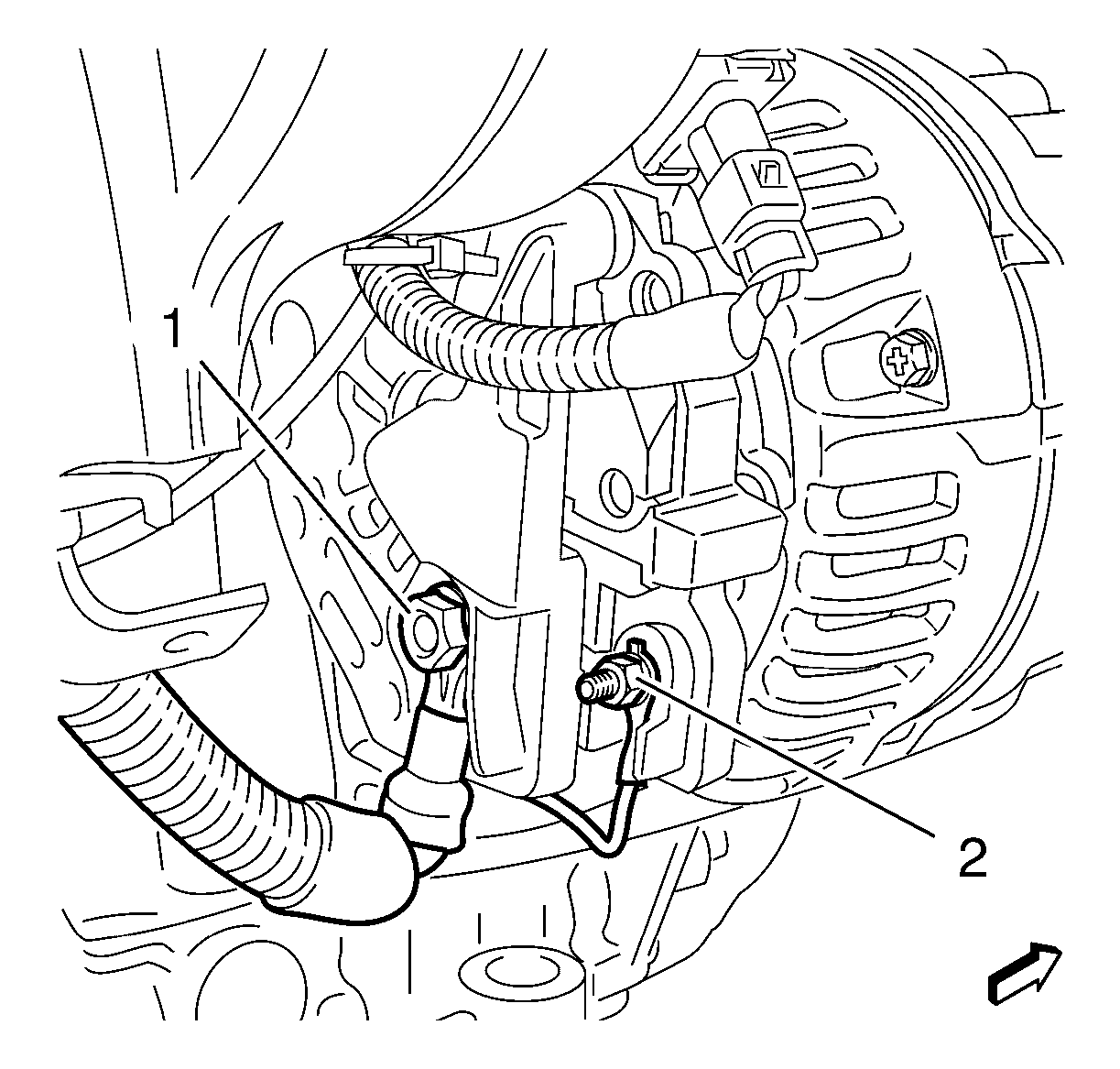

    Fig 1: Generator Positive Cable Nut And Generator Wiring Harness Nut
    GM2027791Courtesy of GENERAL MOTORS COMPANY
  4. Remove the generator positive cable nut (1).
  5. If equipped, remove the generator positive cable nut (1) and the generator positive cable (3).

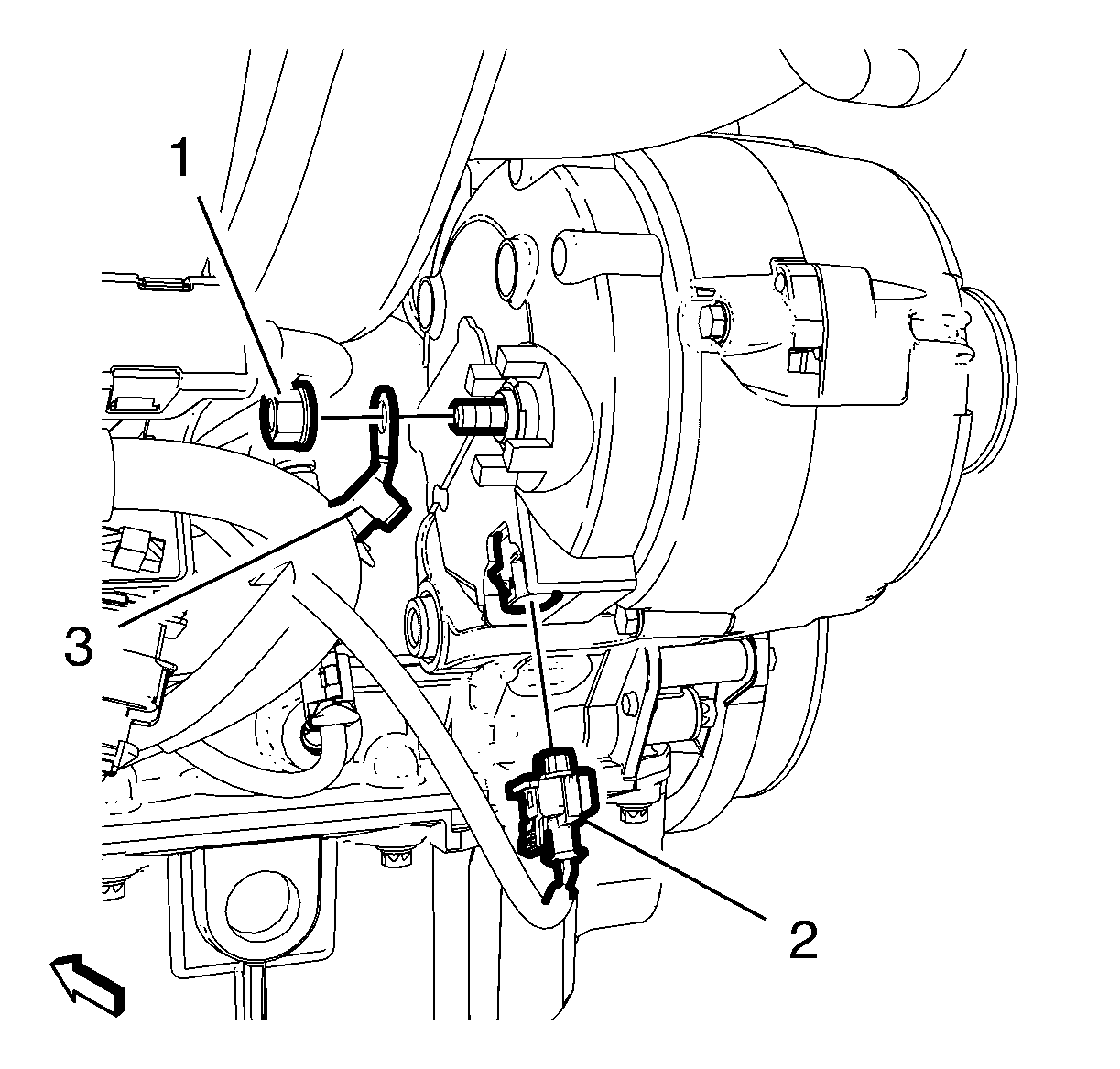

    Fig 2: Generator Positive Cable Nut And Nut
    GM2757769Courtesy of GENERAL MOTORS COMPANY
  6. If equipped, disconnect the generator wiring harness plug (2).
  7. Remove the 2 generator bolts (2).

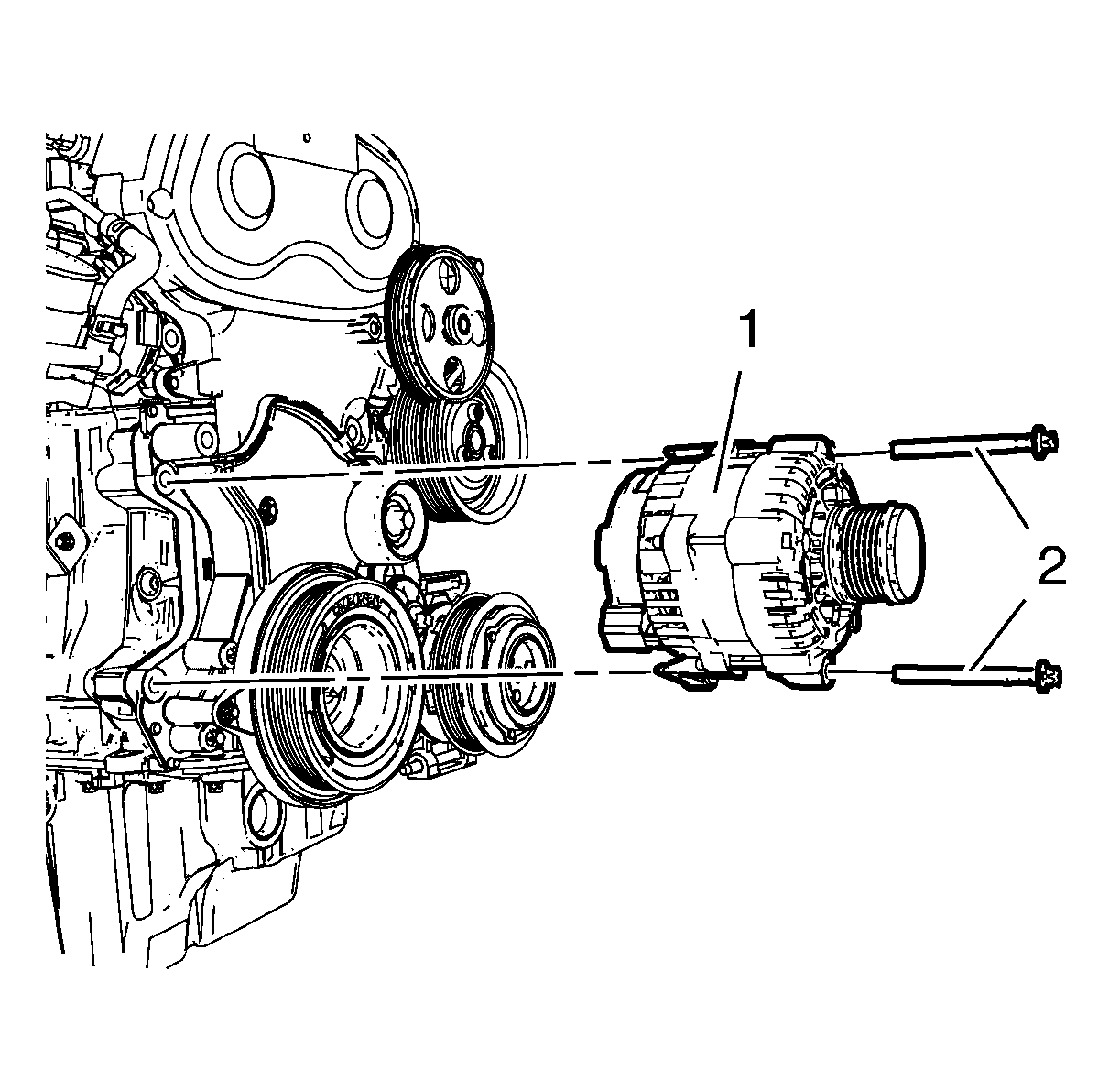

    Fig 3: Generator Bolts
    GM2027790Courtesy of GENERAL MOTORS COMPANY
  8. Remove the generator (1).
