Removal Procedure

  1. Open the hood.
  2. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  4. If equipped, remove the front compartment splash shield. Refer to Front Compartment Insulator Replacement .
  5. If equipped, remove the engine shield. Refer to Engine Shield Replacement .
  6. Disconnect the generator wiring harness connector (3).

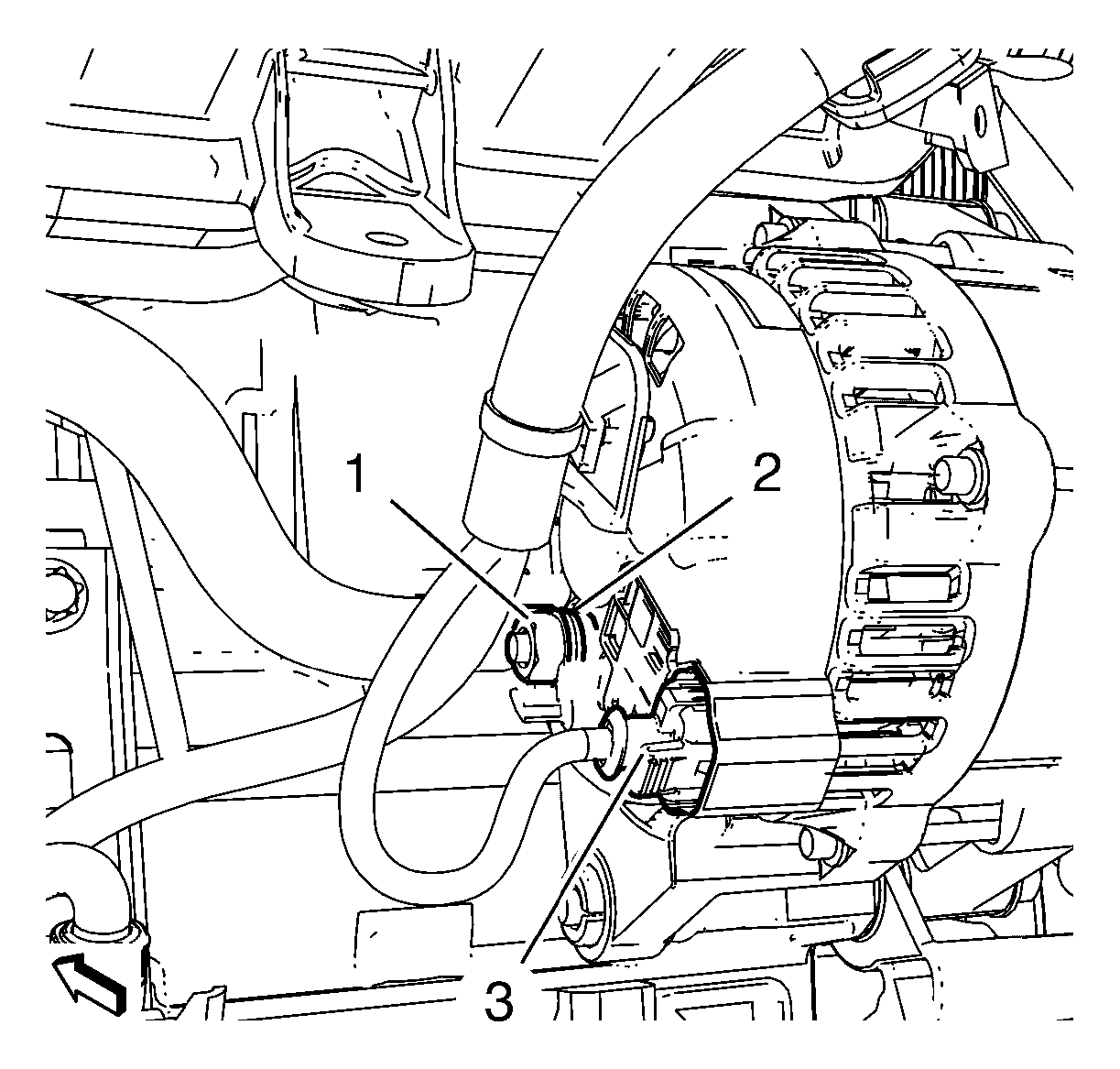

    Fig 1: Generator Positive Cable And Generator Wiring Harness Connector
    GM2191719Courtesy of GENERAL MOTORS COMPANY
  7. Remove the generator positive cable nut (1).
  8. Remove the generator positive cable (2).
  9. Remove the lower bolt and loosen the upper bolt of the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
  10. Lower the vehicle.
  11. Remove the 2 generator bolts (2).

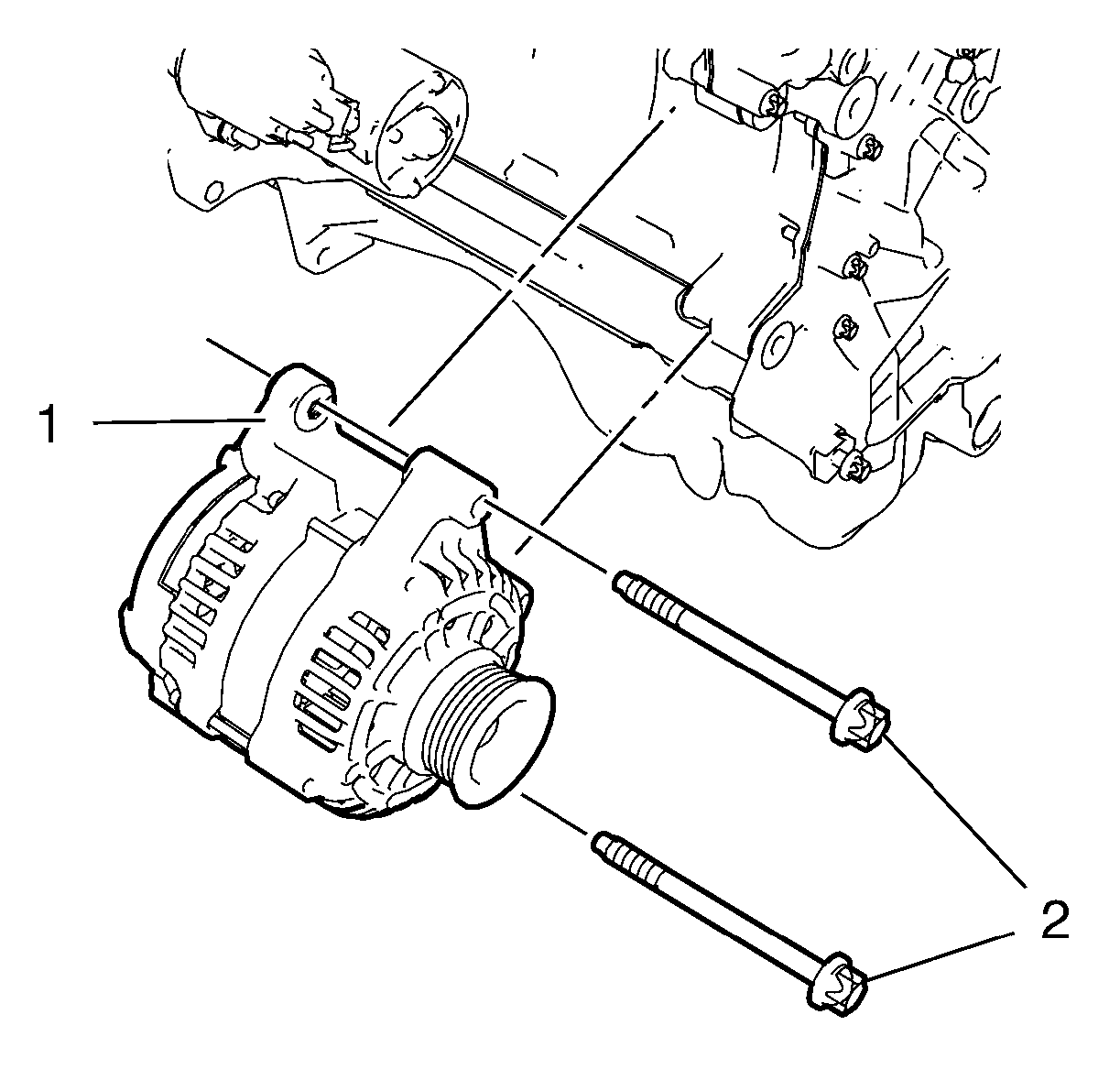

    Fig 2: Generator And Bolts
    GM2191720Courtesy of GENERAL MOTORS COMPANY
  12. Remove the generator (1) from above.
