Removal Procedure

Open the hood.
Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Unlock the retaining tab (1) on the battery fuse box cover.

Fig 1: Battery Fuse Box Cover
Courtesy of GENERAL MOTORS COMPANY
Use a suitable screwdriver (2) to unlock the clip (4) through the window (3).
Open the battery fuse box cover (1).

Fig 2: Fuse Box Cover, Battery Cable And Nut
Courtesy of GENERAL MOTORS COMPANY

NOTE: Pull the battery fuse box housing. DO NOT pull the flap.
Remove the battery hold down retainer nut (5).

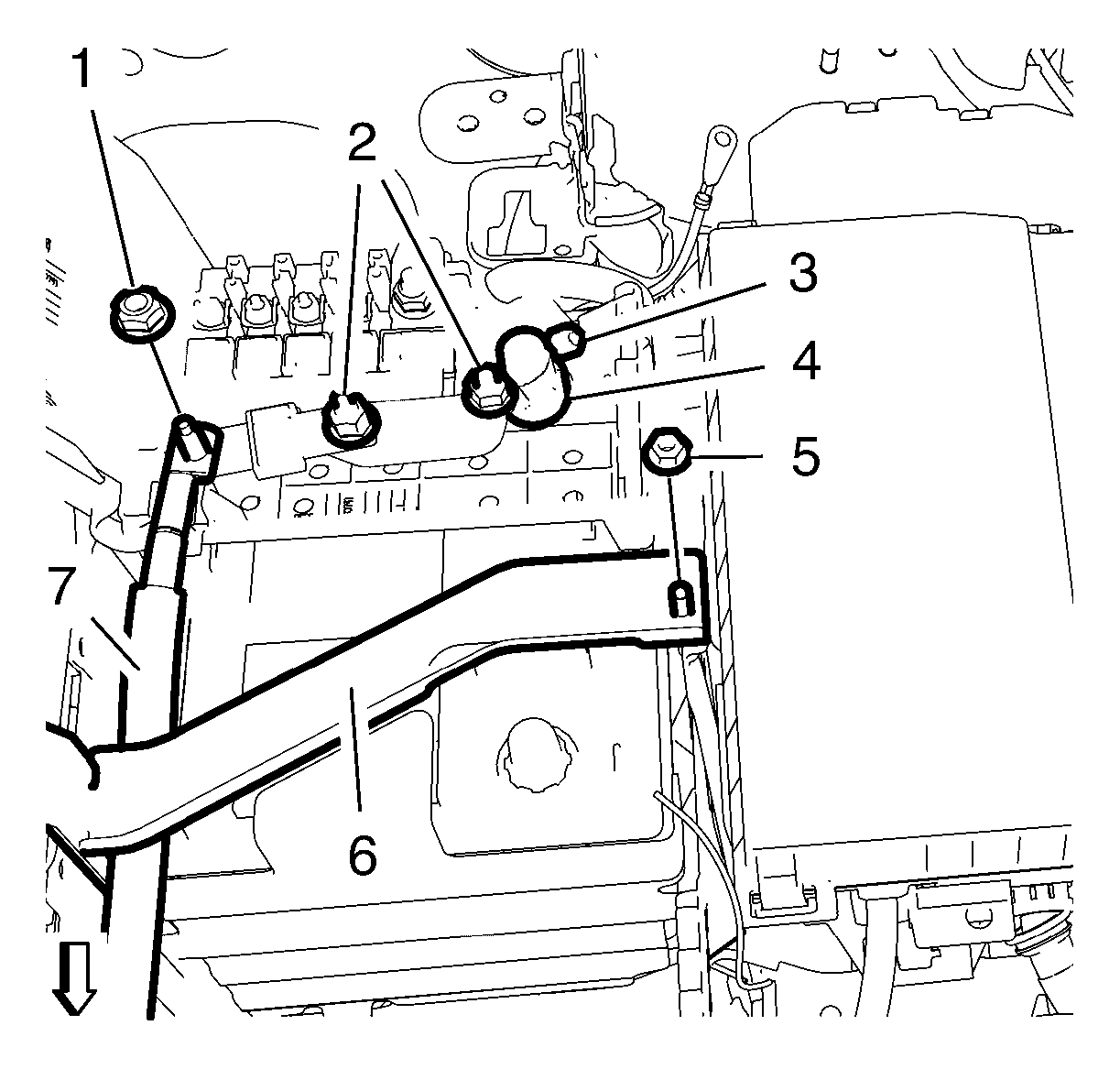

Fig 3: Starter Cable, Battery Positive Cable And Retainer
Courtesy of GENERAL MOTORS COMPANY
Remove the battery hold down retainer (6).
Remove the battery positive cable to starter cable nut (1).
Remove the battery positive cable to starter cable (7).
Loosen the 2 battery positive plate nuts (2).
Loosen the battery positive cable nut (3).
Remove the battery positive cable (4).

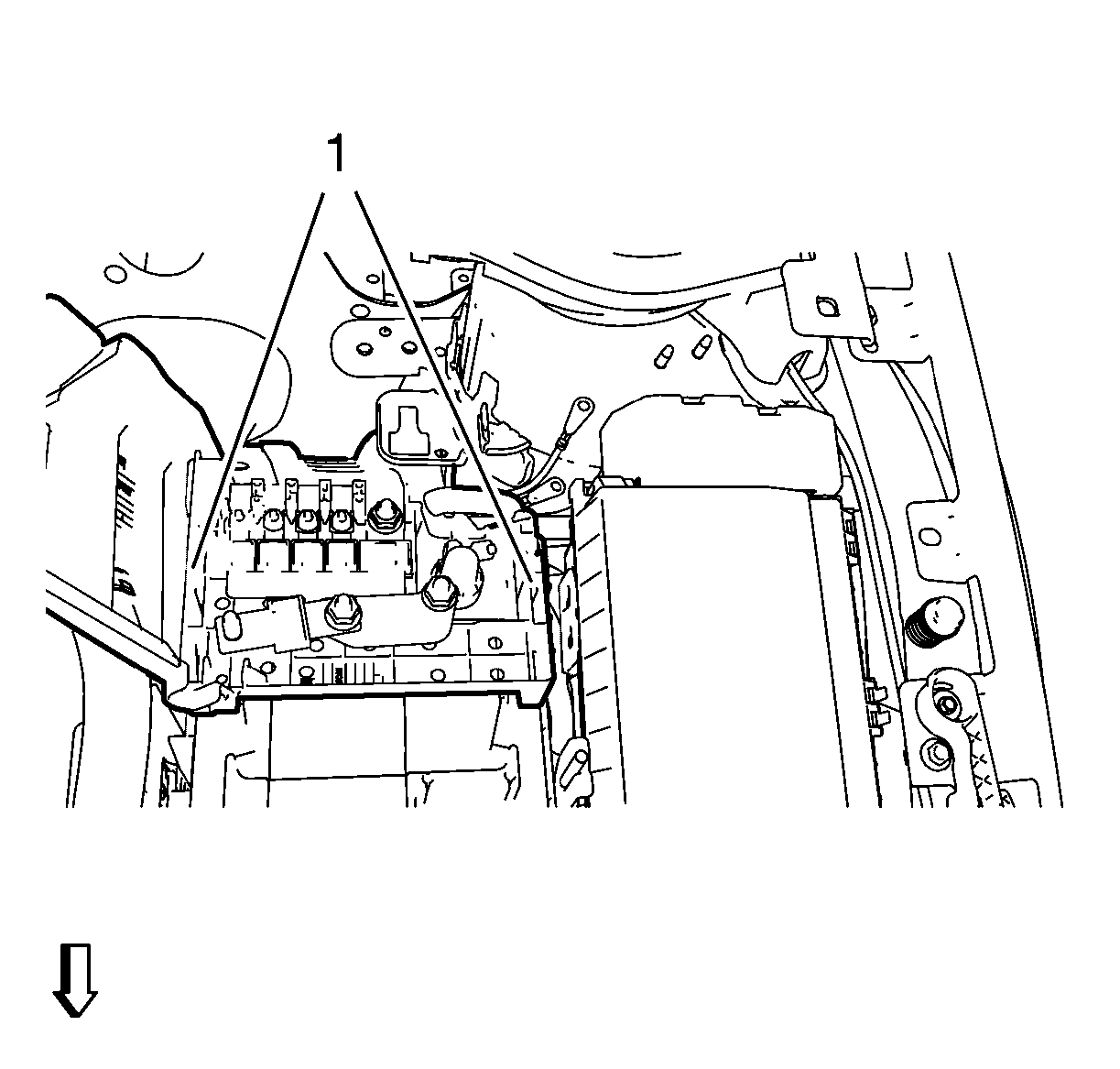

Unclip the battery fuse block retainer clips (1) from the battery and reposition the battery fuse block along with the battery positive cable.

Fig 4: Fuse Block Retainer Clips
Courtesy of GENERAL MOTORS COMPANY

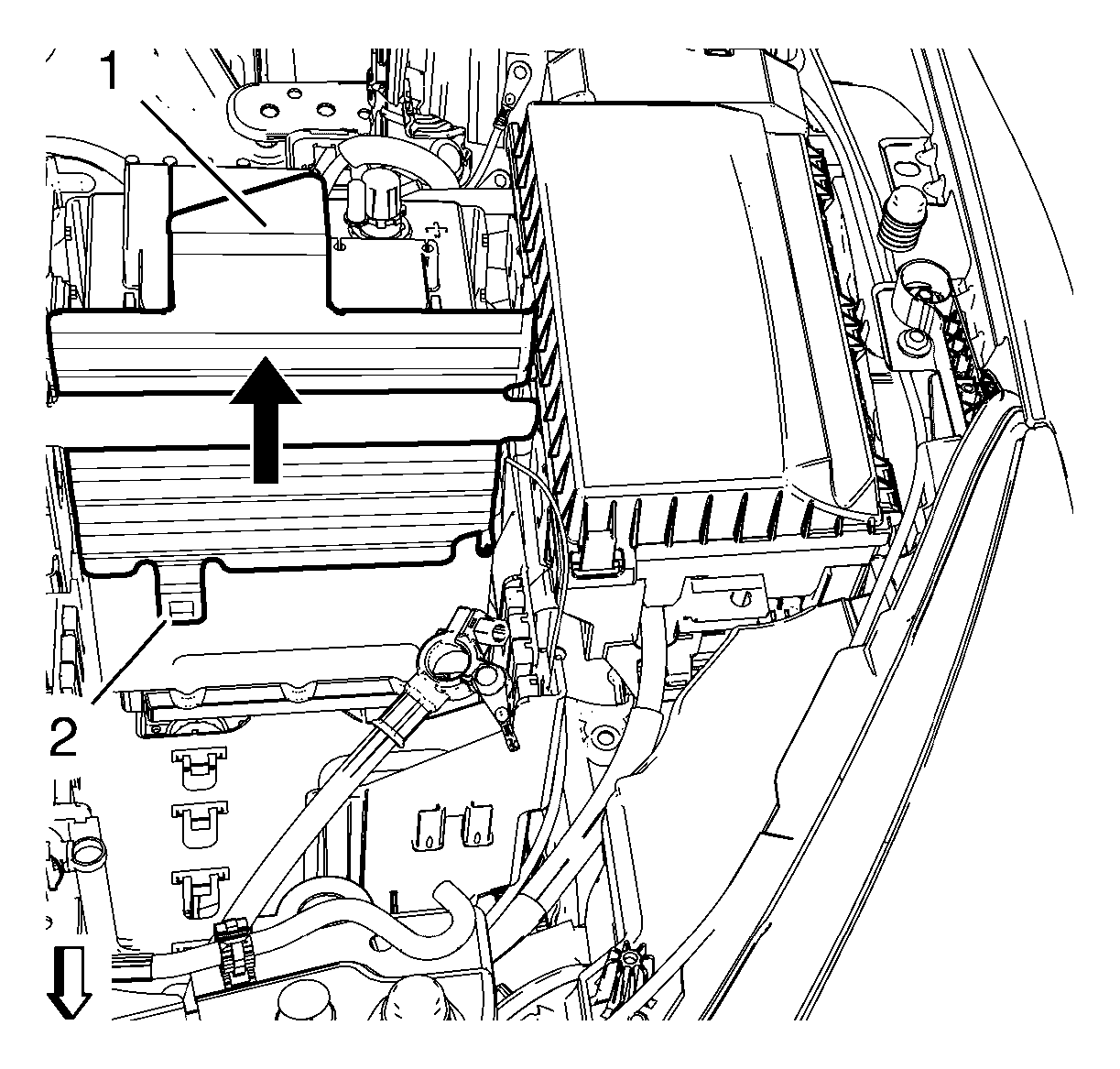

Unclip the battery tray protector retainer (2) from battery tray.

Fig 5: Battery Tray Protector And Battery Tray Protector Retainer
Courtesy of GENERAL MOTORS COMPANY

NOTE: Only necessary if vehicle is equipped with a short battery.
Remove the battery tray protector (1) by moving rearward, in the direction of the arrow.

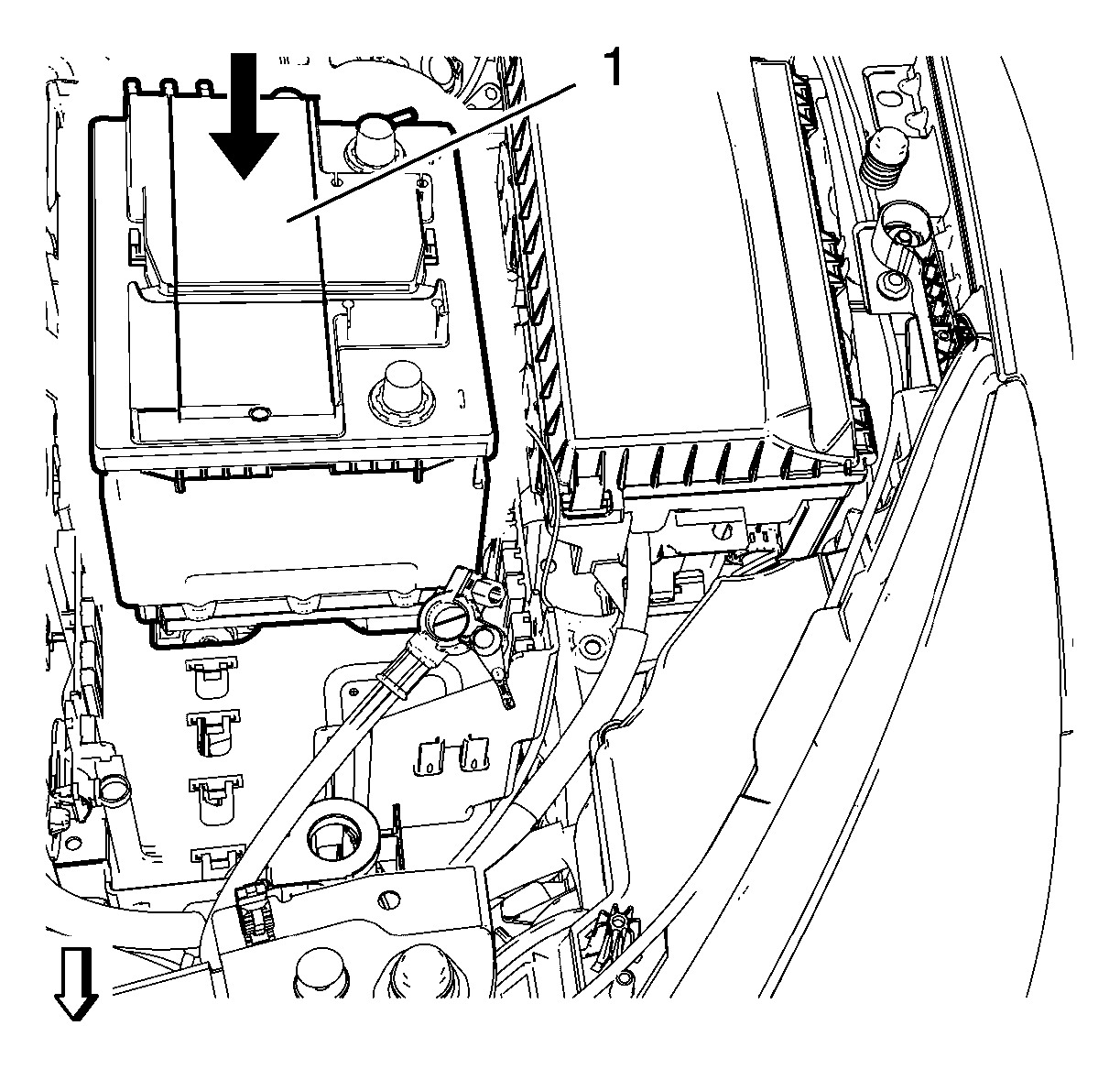

Move the battery (1) forward, in the direction of the arrow and lift to remove.

Fig 6: Battery Position
Courtesy of GENERAL MOTORS COMPANY
