Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical - 1.4L (LUV) >> Repair Instructions - On Vehicle >> Timing Chain Tensioner Replacement >> Installation Procedure

Installation Procedure

  1. Install the timing chain tensioner (3).

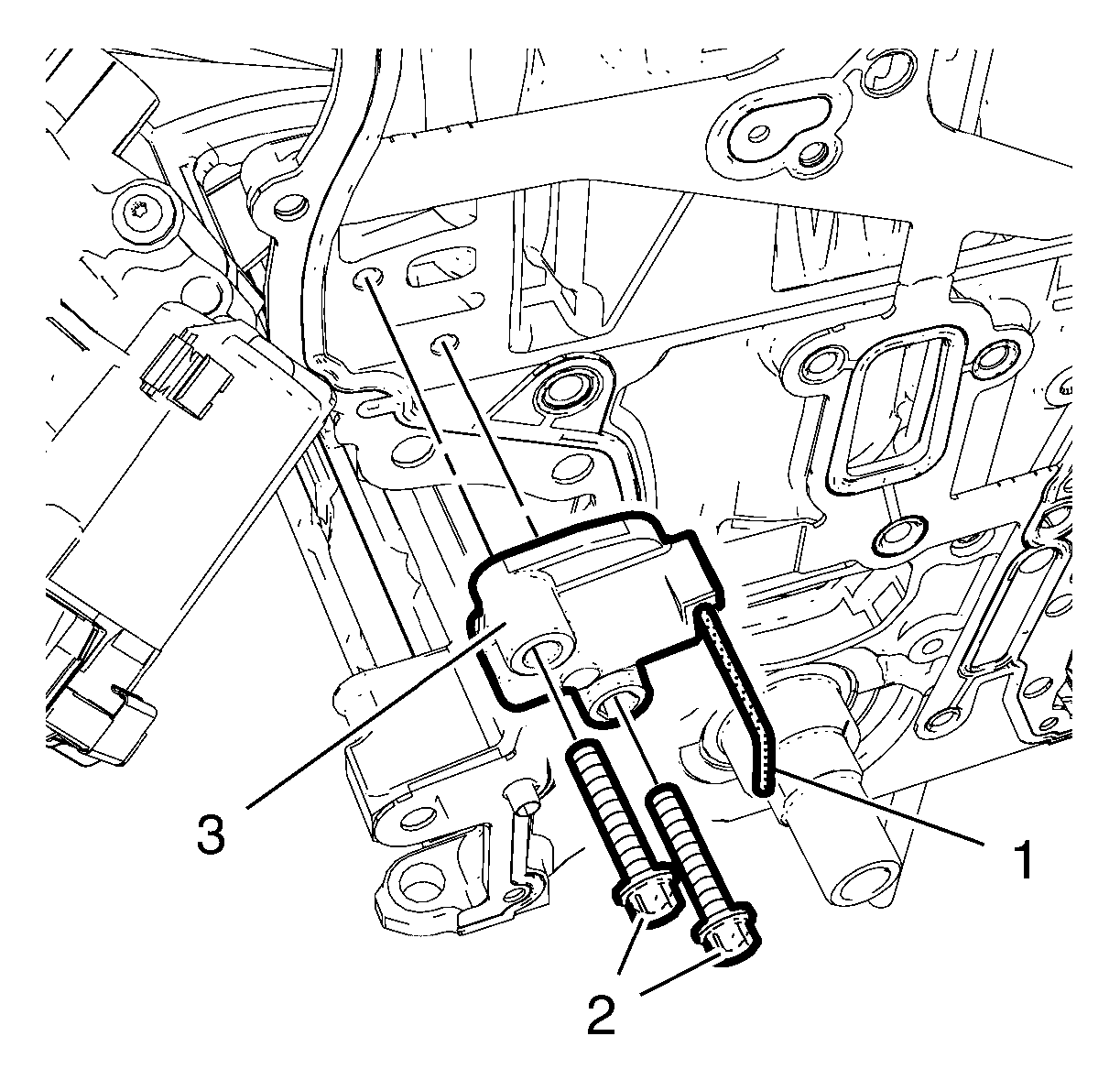

    Fig 1: Timing Chain Tensioner, Bolts And Pin
    GM2191716Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 timing chain tensioner bolts (2) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Fix the timing chain tensioner with EN-955-10  pin (1)
  4. Install the engine front cover gasket and the camshaft timing chain. Refer to Camshaft Timing Chain Replacement .
  5. Install the engine front cover with oil pump. Refer to Engine Front Cover with Oil Pump Replacement .
