Removal Procedure

  1. Remove the camshaft intake sprocket. Refer to Camshaft Intake Sprocket Replacement .
  2. Remove the camshaft bearing cap bolts in a spiral sequence as shown one turn at a time until there is no spring tension pushing on the camshaft.

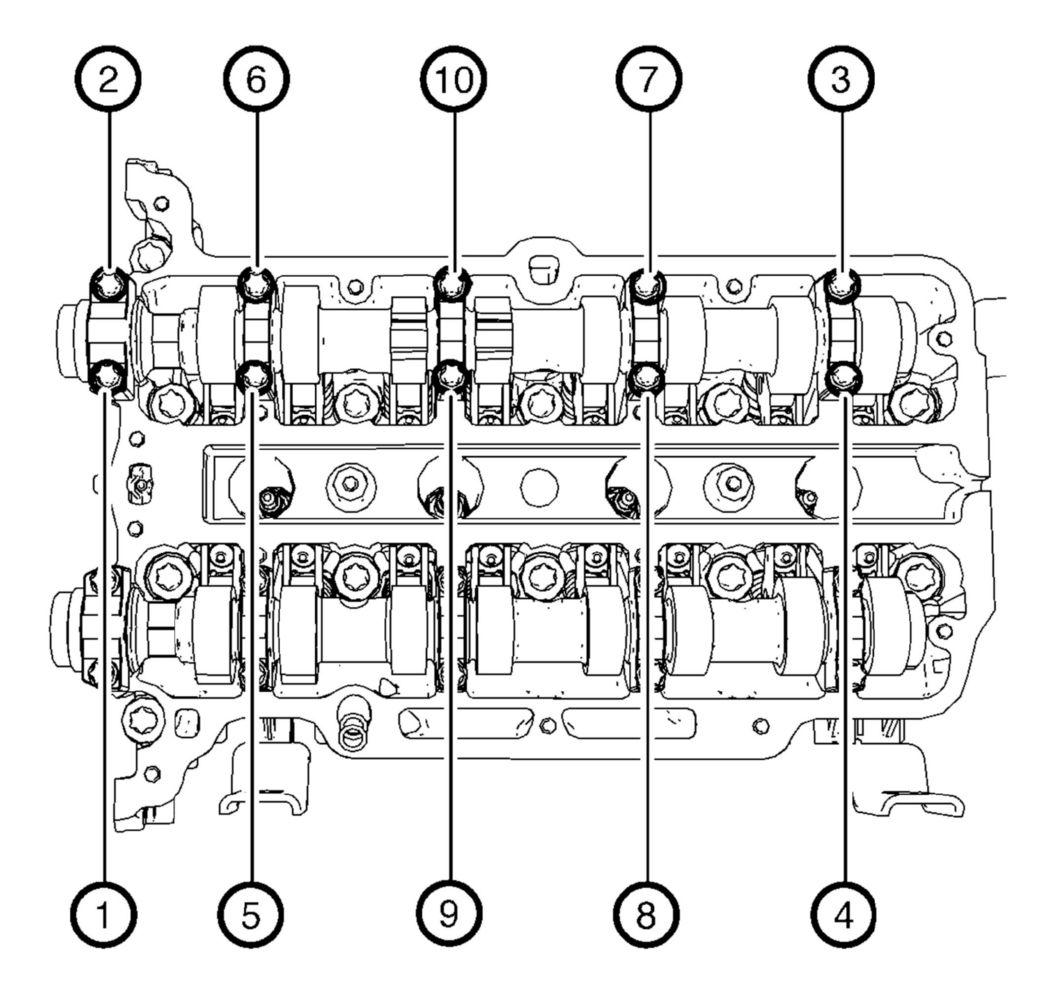

    Fig 1: Intake Camshaft Bearing Cap Bolts Removal Sequence
    GM2190728Courtesy of GENERAL MOTORS COMPANY
  3. Remove the 10 camshaft bearing cap bolts (1).
    Fig 2: Intake Camshaft, Camshaft Bearing Caps And Bolts
    GM2190730Courtesy of GENERAL MOTORS COMPANY
    NOTE: Mind the markings on the camshaft bearing caps to ensure they will be installed in the same position.
  4. Remove the 5 camshaft bearing caps (2).
  5. Remove the intake camshaft (3).
