Installation Procedure

  1. Lubricate the hydraulic valve lash adjusters with engine oil.

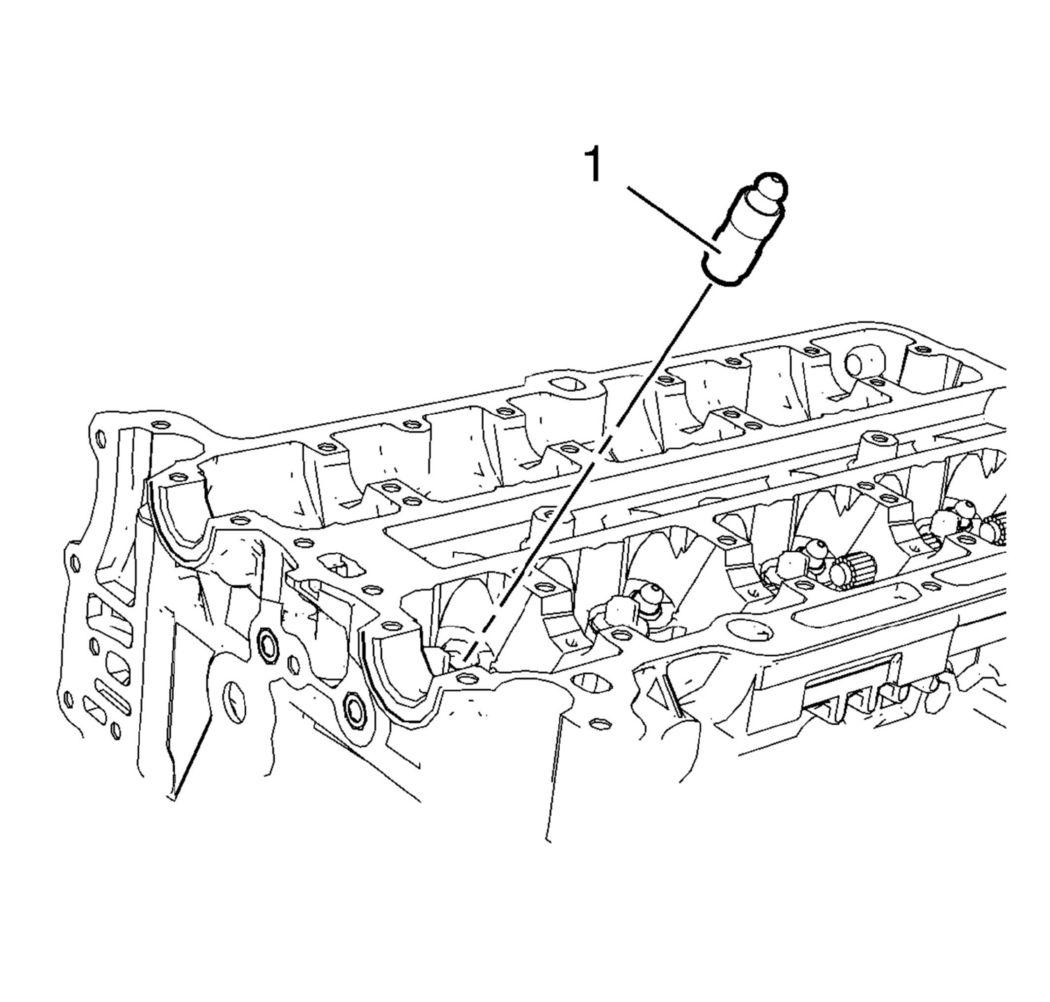

    Fig 1: Hydraulic Valve Lash Adjusters
    GM2190767Courtesy of GENERAL MOTORS COMPANY
    NOTE: Mind the installation position of the hydraulic valve lash adjusters.
  2. Install the 16 hydraulic valve lash adjusters (1).
  3. Install the 16 hydraulic valve lash adjuster arms. Refer to Hydraulic Valve Lash Adjuster Arm Replacement .
