Installation Procedure

  1. Lubricate the hydraulic valve lash adjuster arms with engine oil.

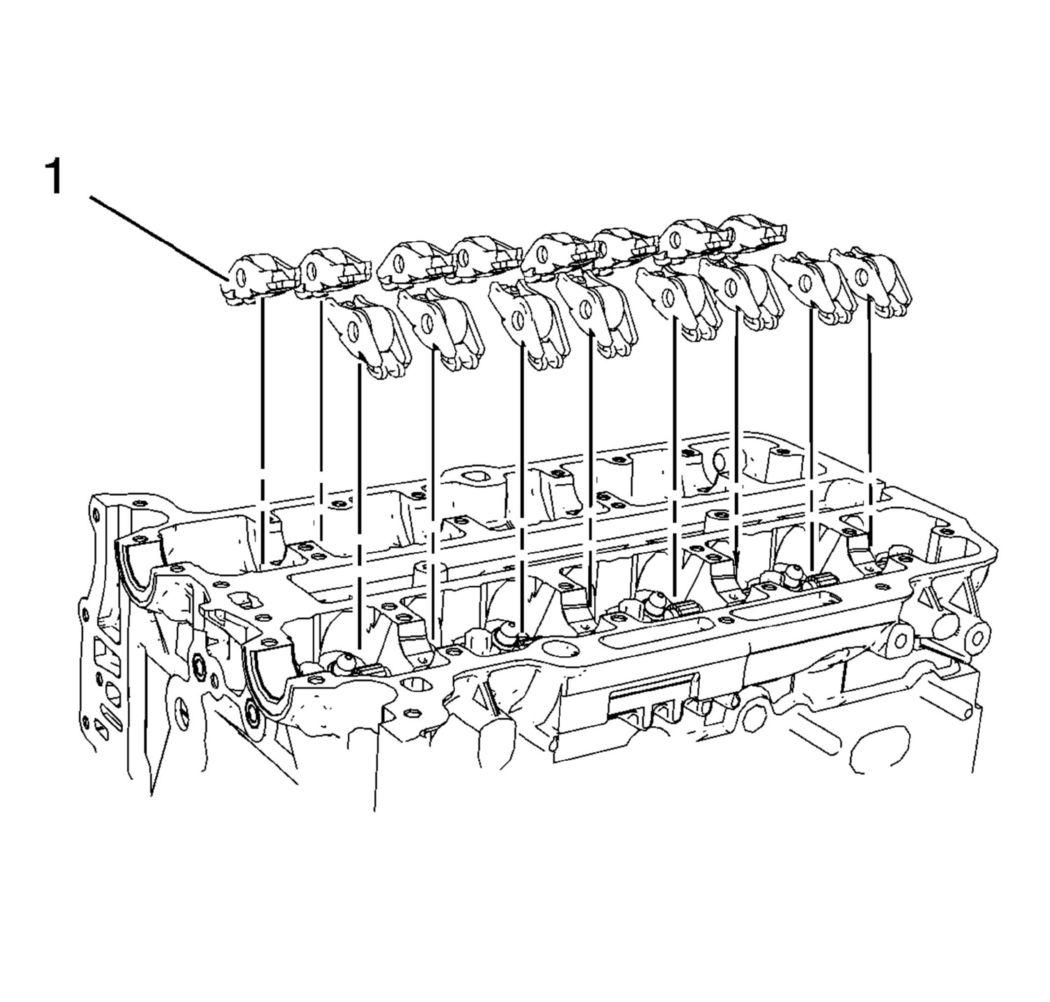

    Fig 1: Hydraulic Valve Lash Adjuster Arms
    GM2190735Courtesy of GENERAL MOTORS COMPANY
    NOTE: Hydraulic valve lash adjuster arms should be installed in their original position
  2. Install the 16 hydraulic valve lash adjuster arms (1).
  3. Install the exhaust camshaft. Refer to Exhaust Camshaft Replacement .
  4. Install the intake camshaft. Refer to Intake Camshaft Replacement .
