Removal Procedure

  1. Using a screwdriver or similar tool, unclip the engine sight shield (1) at the shown positions (arrows).

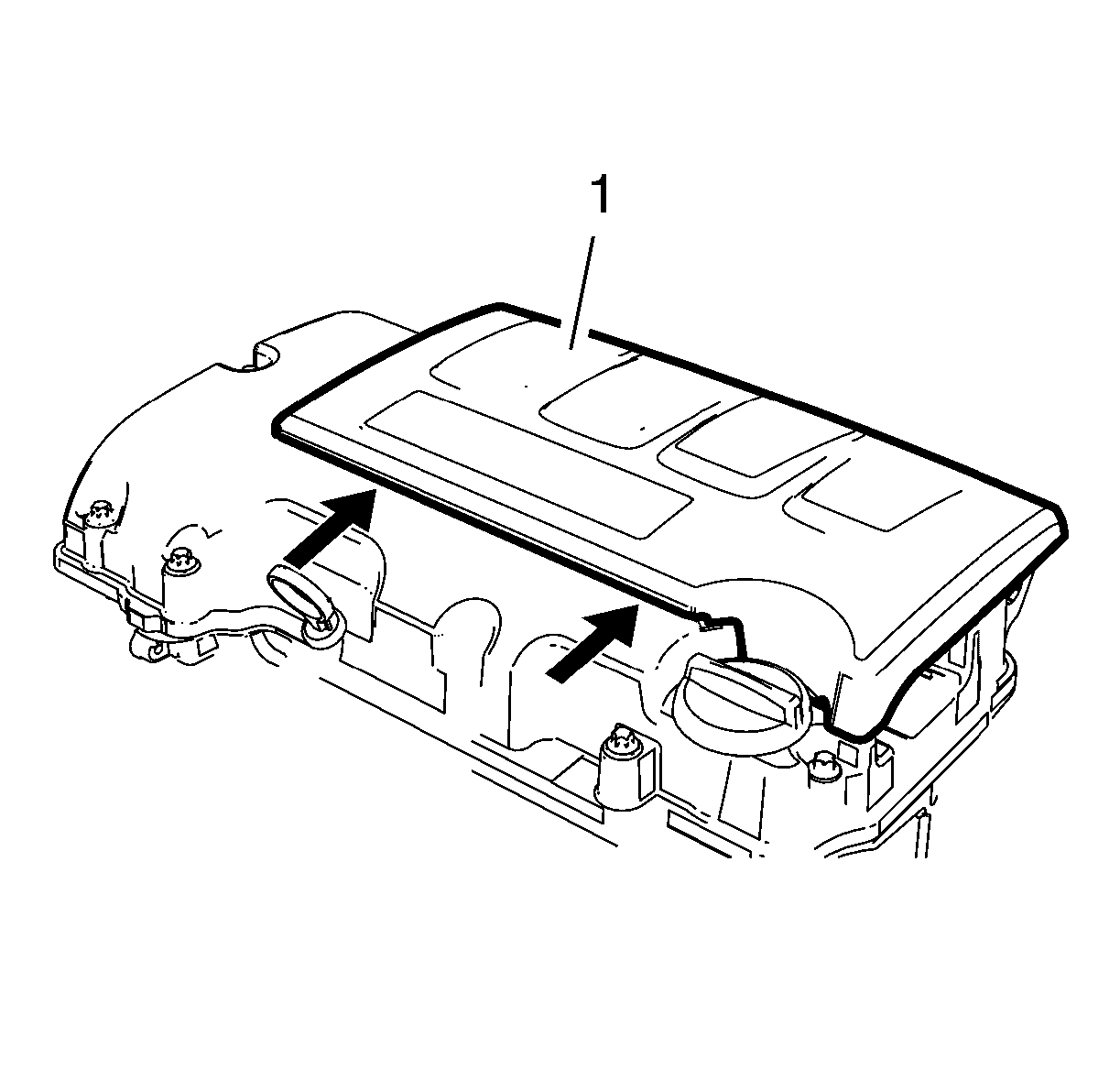

    Fig 1: Engine Sight Shield
    GM2906631Courtesy of GENERAL MOTORS COMPANY
  2. Rotate the engine sight shield in arrow direction and unclip it from the camshaft cover.

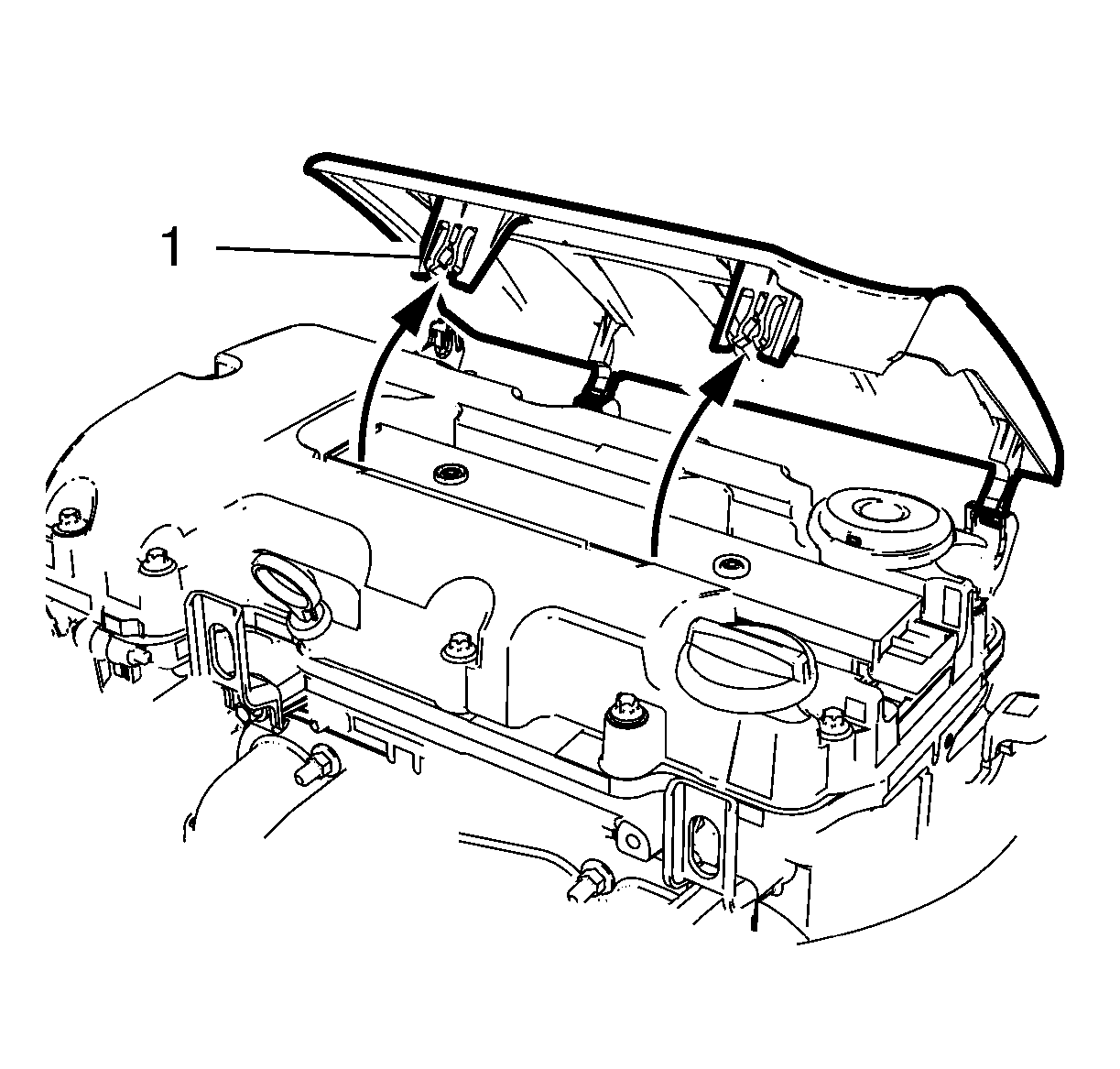

    Fig 2: Engine Sight Shield
    GM2906630Courtesy of GENERAL MOTORS COMPANY
