Installation Procedure

  1. Clip the rear clips (1) to the camshaft cover.

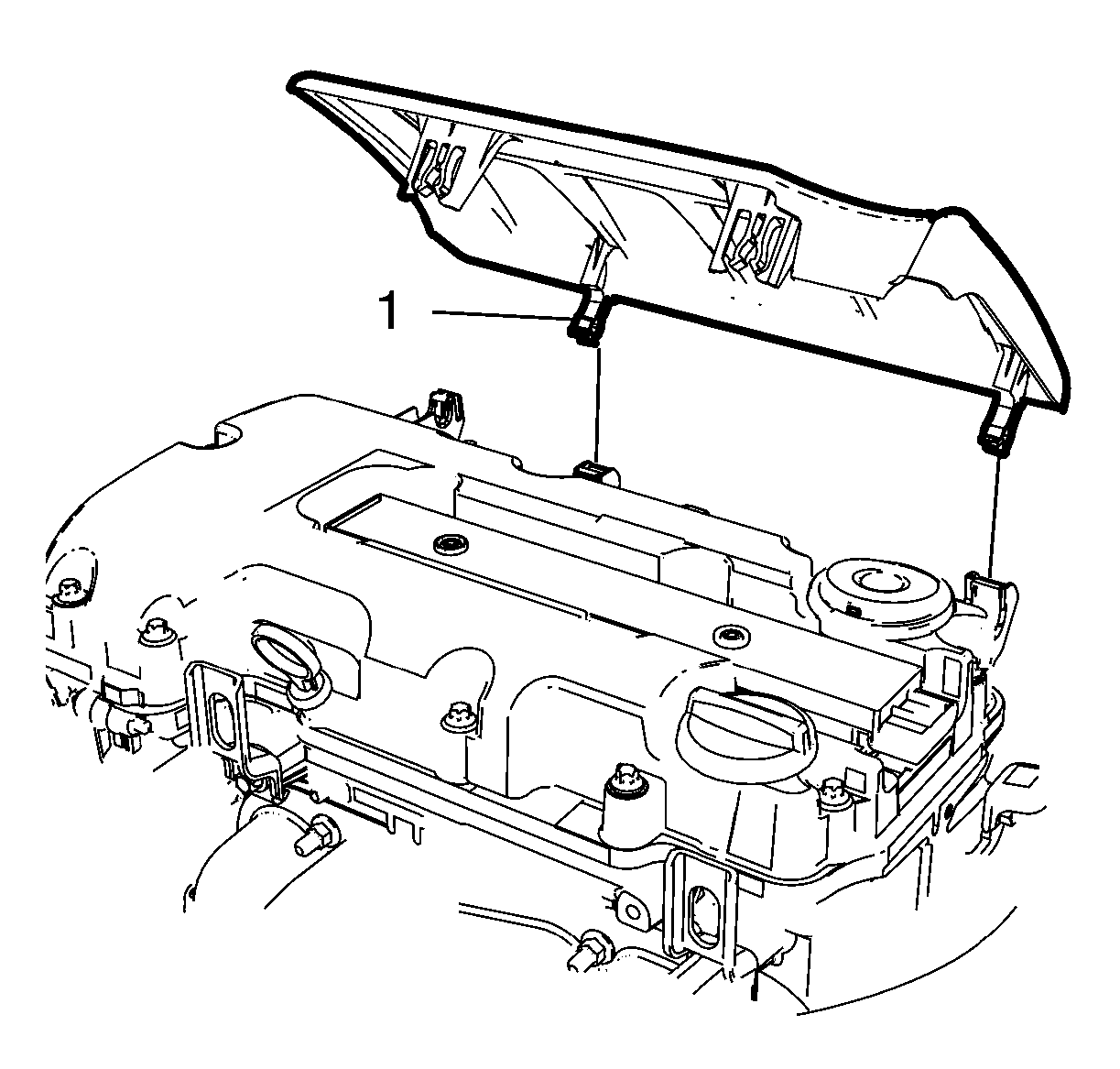

    Fig 1: Rear Clips And Camshaft Cover
    GM2906625Courtesy of GENERAL MOTORS COMPANY
  2. Rotate the engine sight shield as shown until the clips (1) engage audible in the camshaft cover.

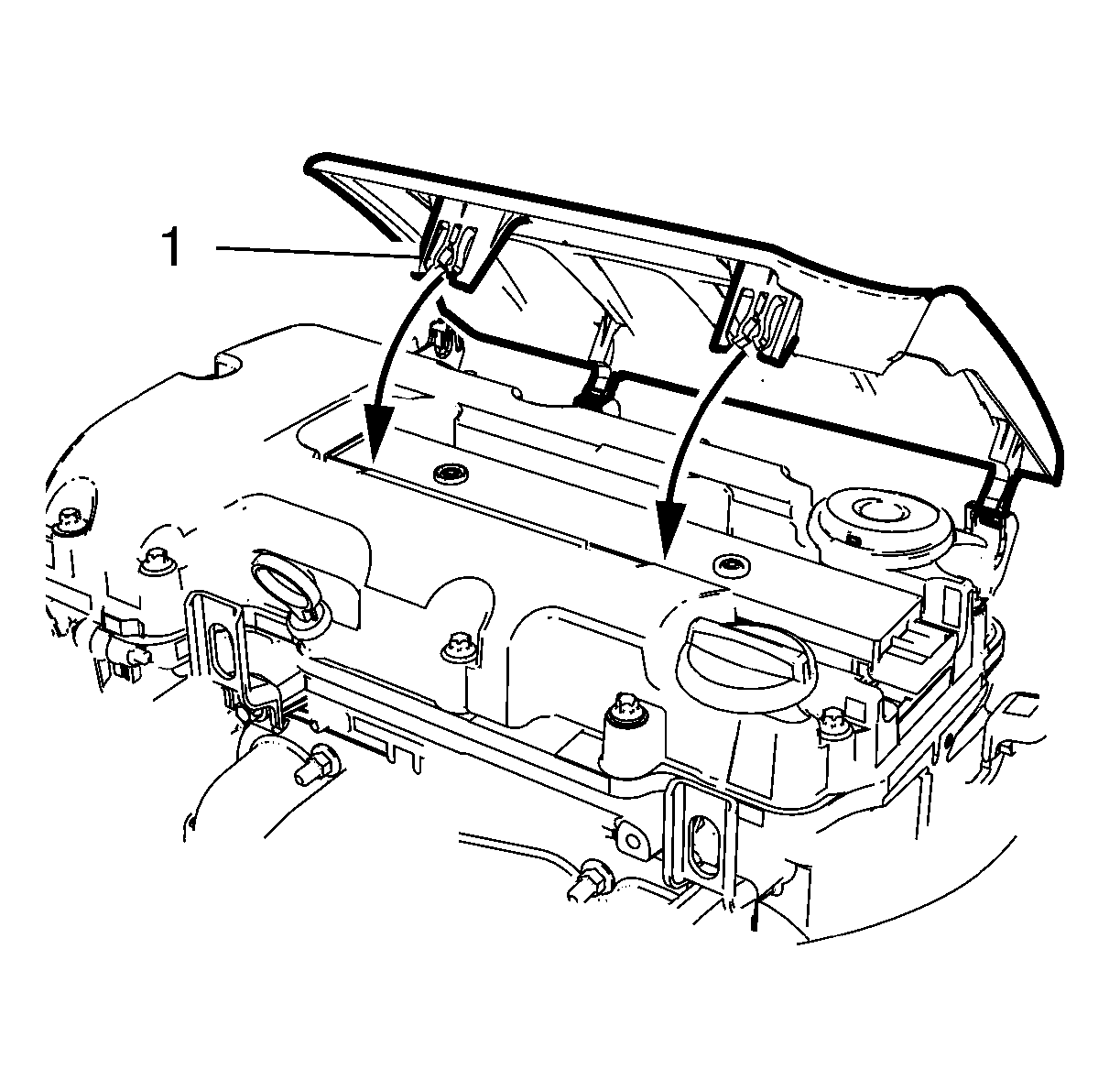

    Fig 2: Rear Clips And Camshaft Cover
    GM2906627Courtesy of GENERAL MOTORS COMPANY
