Removal Procedure

  1. Open the hood.
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  3. Install an engine lifter (1) to the right engine lift bracket and apply tension to the engine lifter chain in order to support the engine.

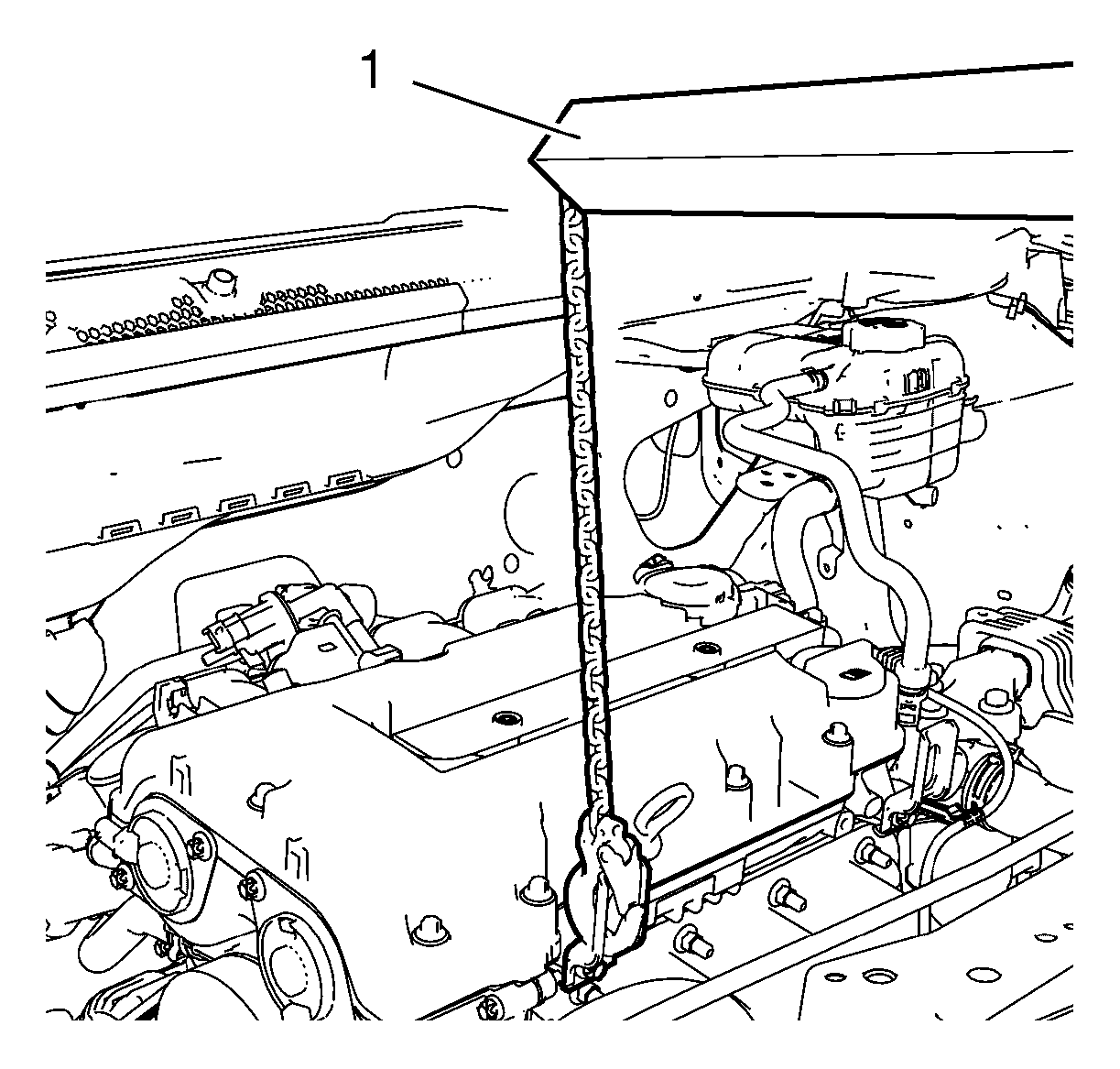

    Fig 1: Engine Lifter
    GM2191340Courtesy of GENERAL MOTORS COMPANY
  4. Remove and DISCARD the 3 engine mount to engine mount bracket bolts (3) and the 3 washers (4).
    Fig 2: Engine Mount, Bracket Bolts, Body Bolts, Mount Nuts And Washers
    GM2191341Courtesy of GENERAL MOTORS COMPANY
  5. Remove the 2 engine mount to body bolts (2) and the engine mount nut (1).
  6. Remove the engine mount (5).
