Installation Procedure

  1. Install the engine mount (5).

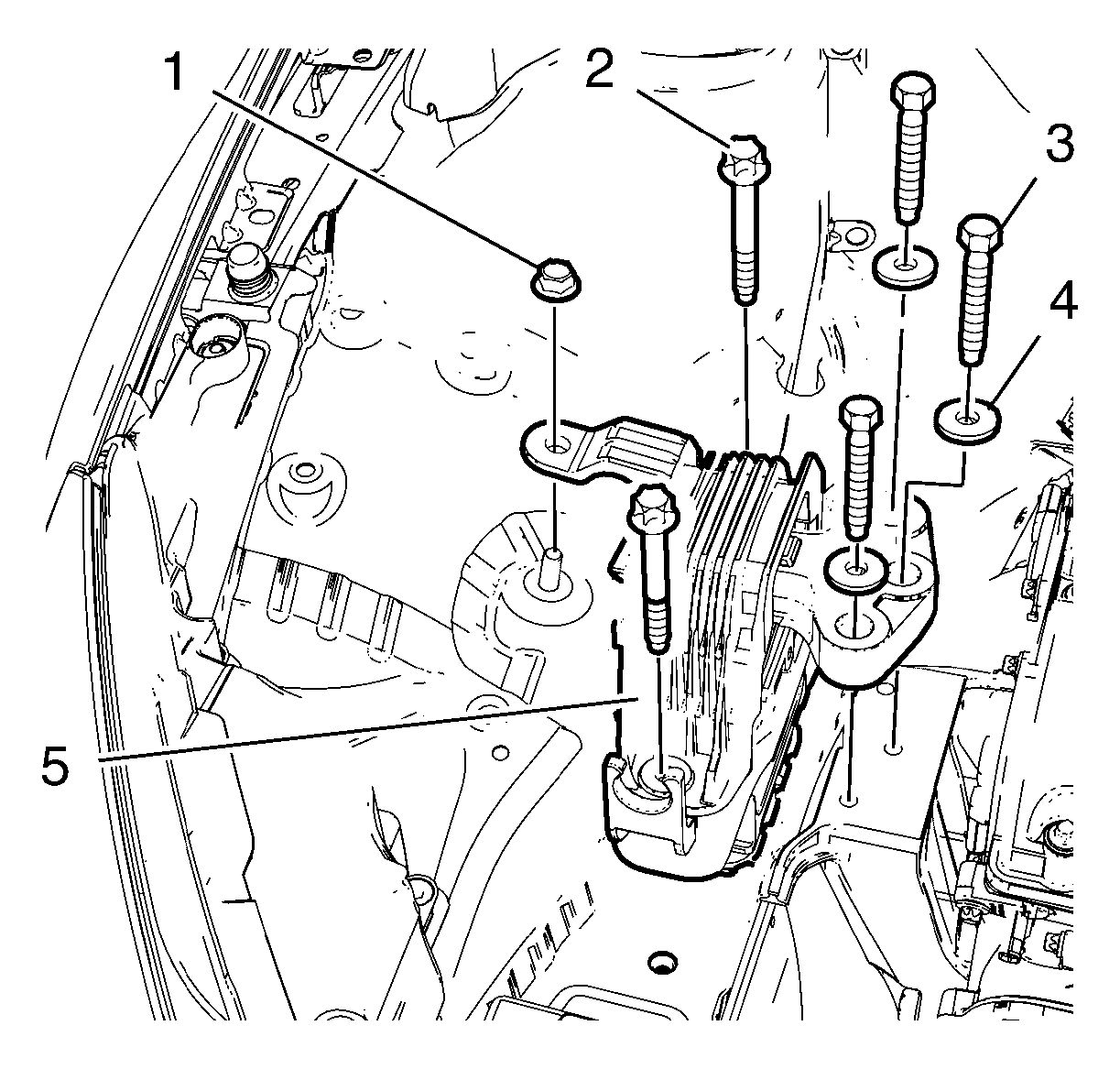

    Fig 1: Engine Mount, Bracket Bolts, Body Bolts, Mount Nuts And Washers
    GM2191341Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 engine mount to body bolts (2).
  3. Install the engine mount nut (1).
  4. Install the 3 NEW engine mount to engine mount bracket bolts (3) and the 3 washers (4).
  5. Tighten the 2 engine mount to body bolts (2) and the engine mount nut (1) to 62 N.m (46 lb ft).
    CAUTION: Refer to Fastener Caution .
    CAUTION: Refer to Torque-to-Yield Fastener Caution .
  6. Tighten the 3 engine mount to engine mount bracket bolts (3) to 50 N.m (37 lb ft) + 60-70°.
  7. Remove the engine lifter from right engine lift bracket.
  8. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  9. Close the hood.
