Installation Procedure

Install the drive belt (1) according to the shown routing.

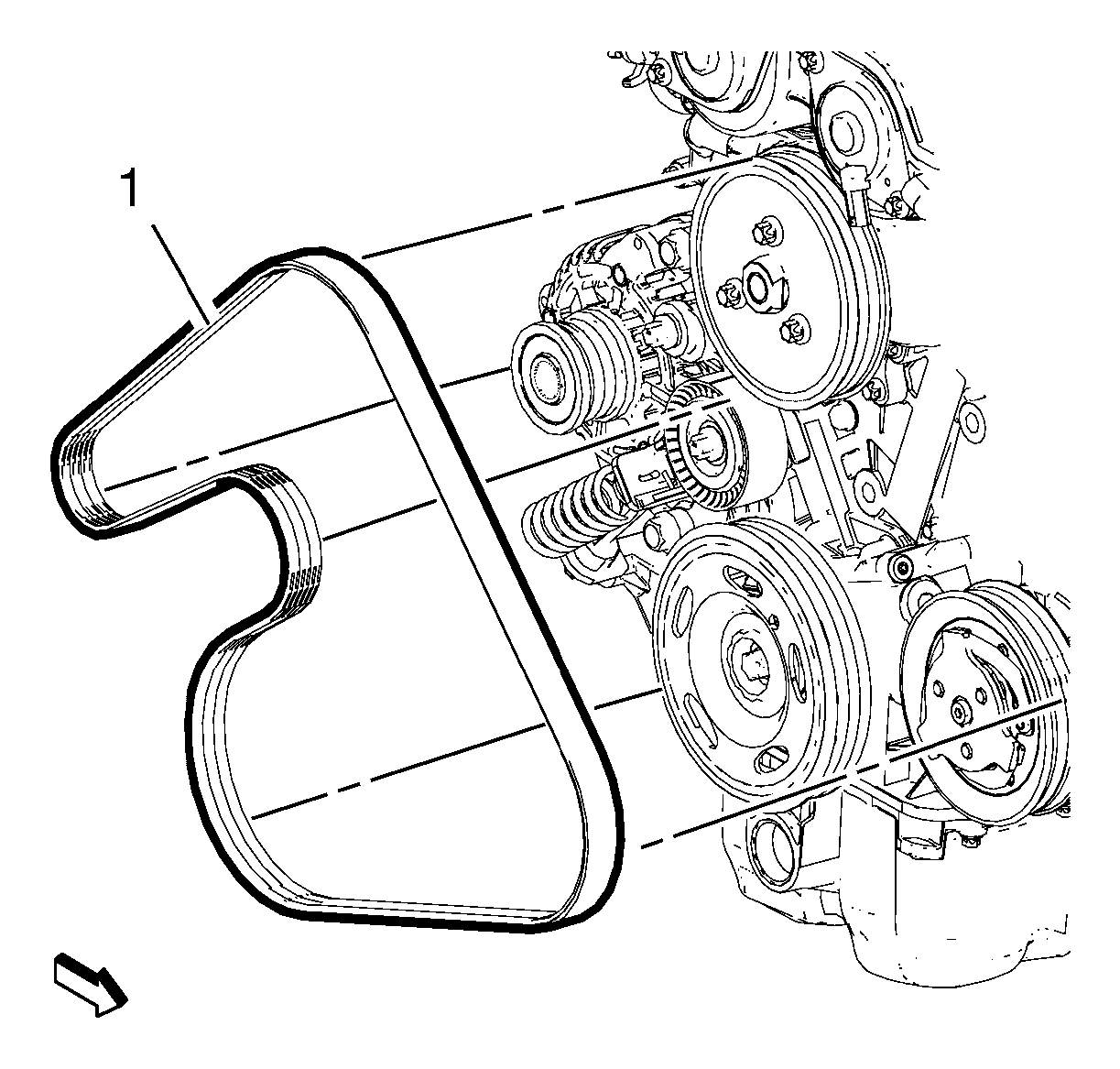

Fig 1: Drive Belt Routing
Courtesy of GENERAL MOTORS COMPANY
Install the right engine mount. Refer to Engine Mount Replacement - Right Side .
Raise the vehicle.
Rotate the drive belt tensioner pulley bolt (1) in the direction shown until the punch can be removed, using a TORX wrench and hold in position.

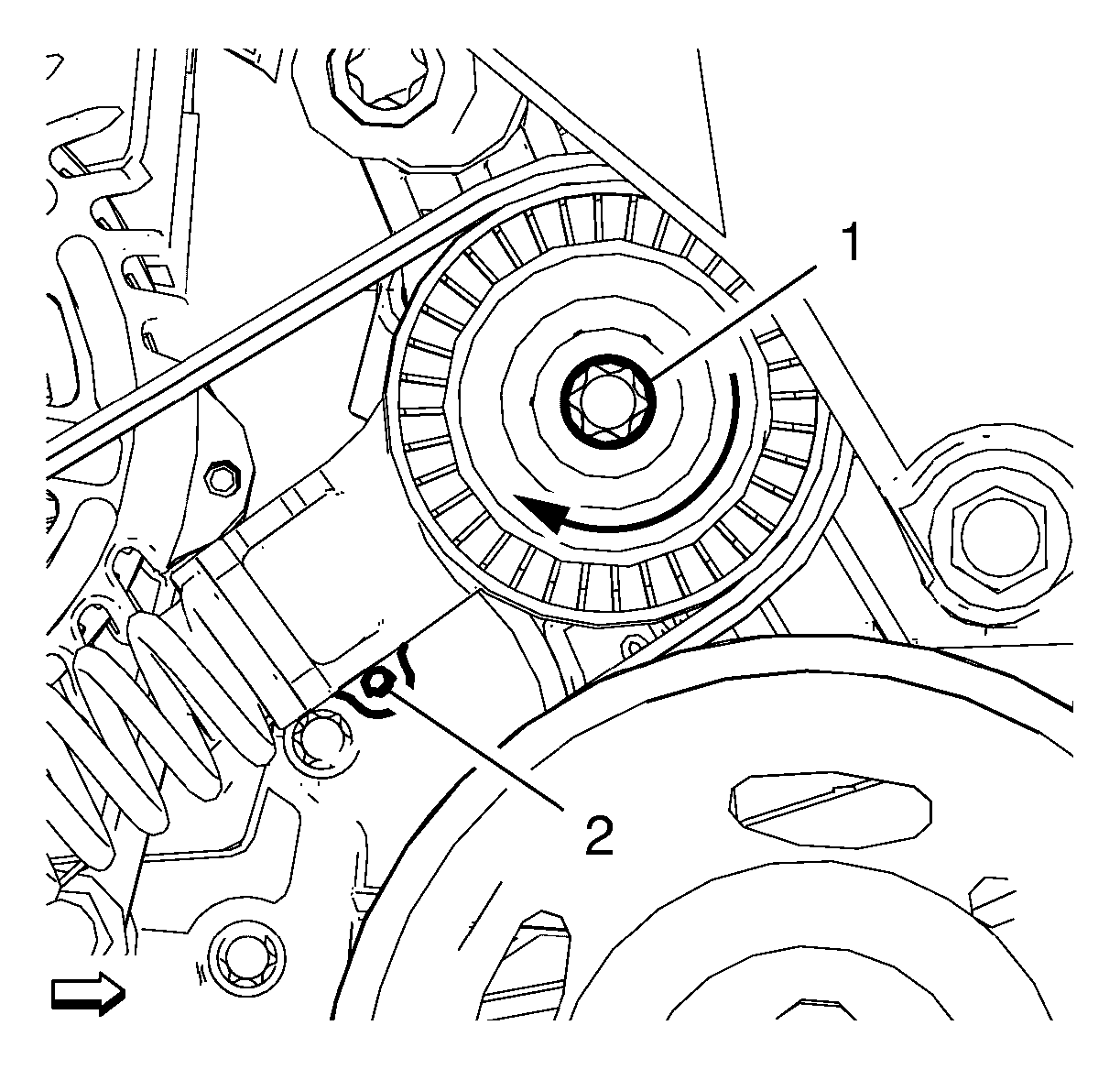

Fig 2: Drive Belt Tensioner Pulley And Bolt
Courtesy of GENERAL MOTORS COMPANY
Remove the punch (1) from the engine front cover bore and the drive belt tensioner bore (2).

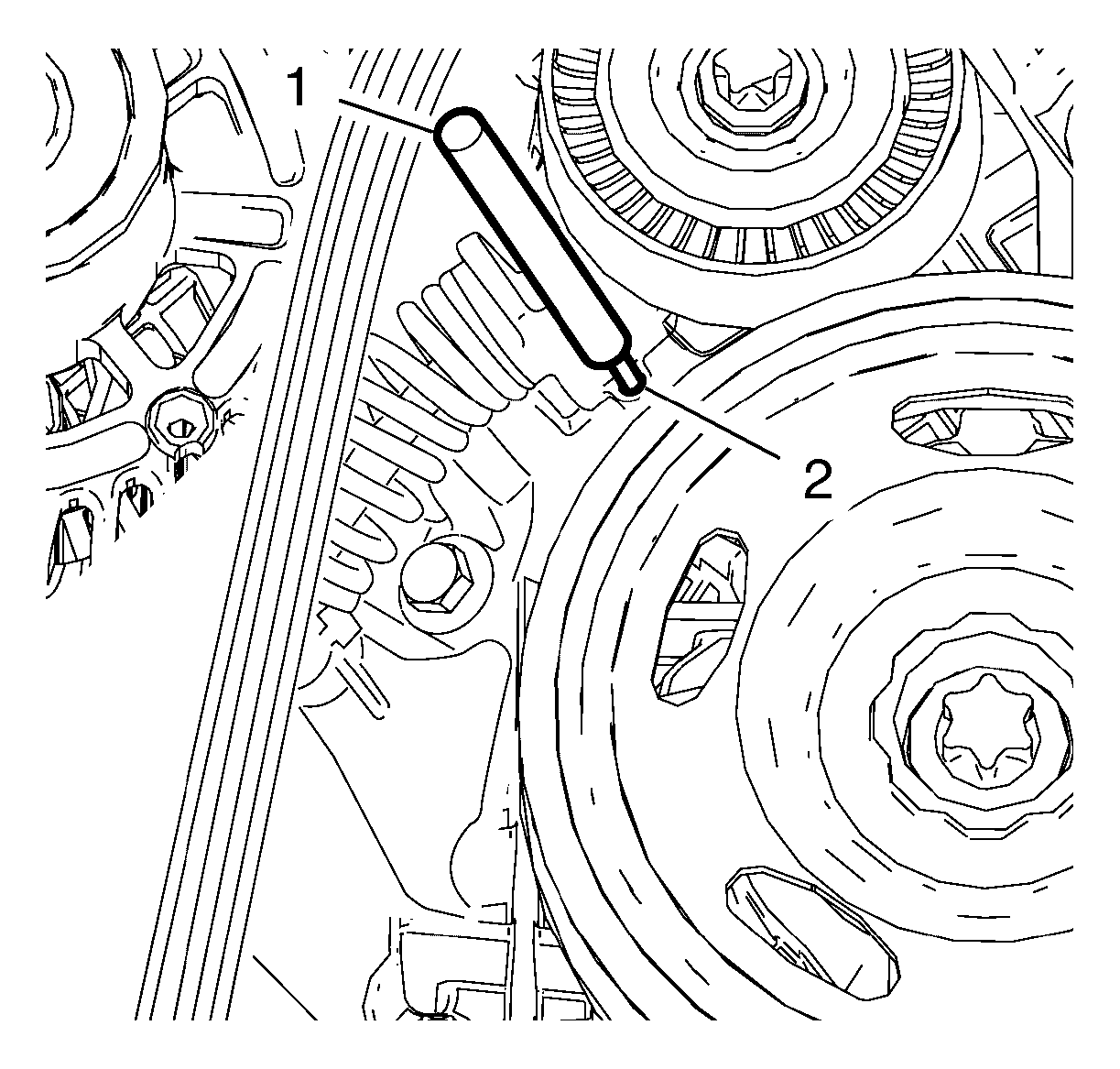

Fig 3: Punch Inserted In Drive Belt Tensioner Bore
Courtesy of GENERAL MOTORS COMPANY
Allow the tensioner to slide back slowly.
Install the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Lower the vehicle.
