Removal Procedure

  1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  2. Place collecting basin underneath.
  3. Remove the crankshaft front oil seal (1) from the engine front cover.

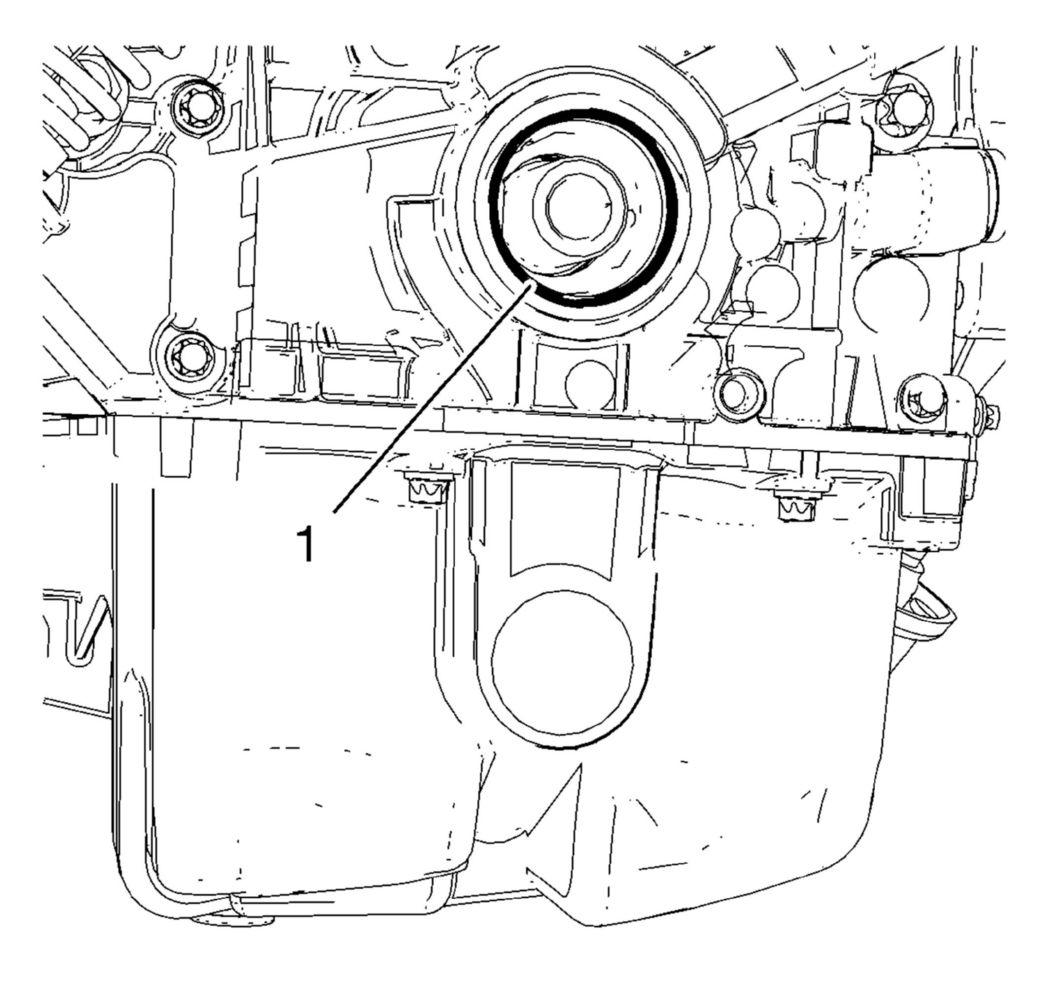

    Fig 1: Crankshaft Front Oil Seal And Remover
    GM2191464Courtesy of GENERAL MOTORS COMPANY
