Removal Procedure

  1. Open the hood.
  2. Remove ignition coil. Refer to Ignition Coil Replacement .
  3. Remove the positive crankcase ventilation pipe from camshaft cover. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement .
  4. Remove engine control module wiring harness (1) from camshaft cover.
    Fig 1: Wiring Harnesses And Plugs
    GM2191350Courtesy of GENERAL MOTORS COMPANY
    • Disconnect intake camshaft position sensor wiring harness plug (7).
    • Disconnect intake camshaft position actuator solenoid valve wiring harness plug (6).
    • Disconnect exhaust camshaft position sensor wiring harness plug (4).
    • Disconnect exhaust camshaft position actuator solenoid valve wiring harness plug (5).
    • Disconnect engine coolant temperature sensor wiring harness plug (3).
    • Disconnect engine oil pressure indicator switch wiring harness plug (2).
    • Unclip engine control module wiring harness plug from camshaft cover and lay aside.

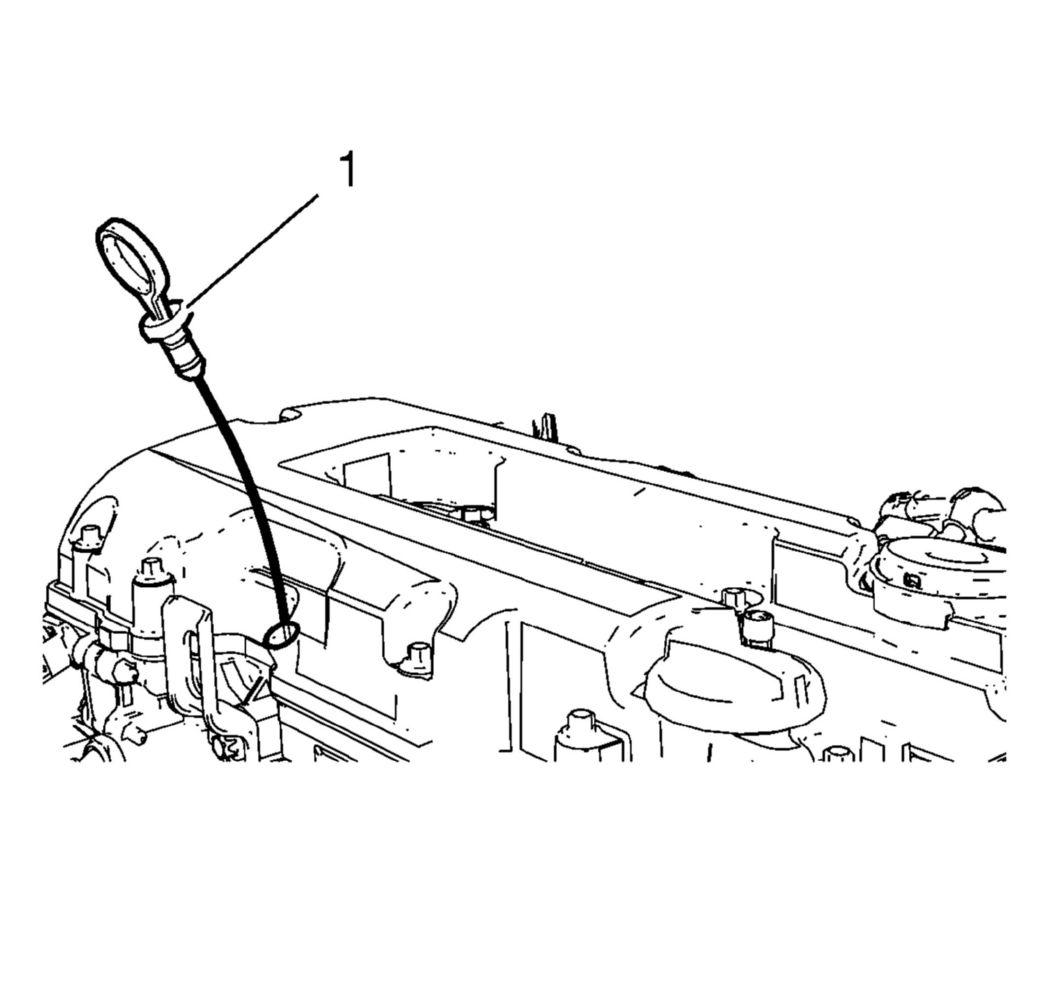

  5. Remove the oil level indicator (1).
    Fig 2: Engine Oil Level Indicator
    GM2190647Courtesy of GENERAL MOTORS COMPANY
  6. Remove the 15 camshaft cover bolts (1).
    Fig 3: Camshaft Cover And Gasket
    GM2190620Courtesy of GENERAL MOTORS COMPANY
  7. Remove the camshaft cover (2) and the camshaft cover gasket (3).
