Installation Procedure

  1. Clean the 6 screw bores. Rework if necessary.
  2. Install the automatic transmission flex plate (1).

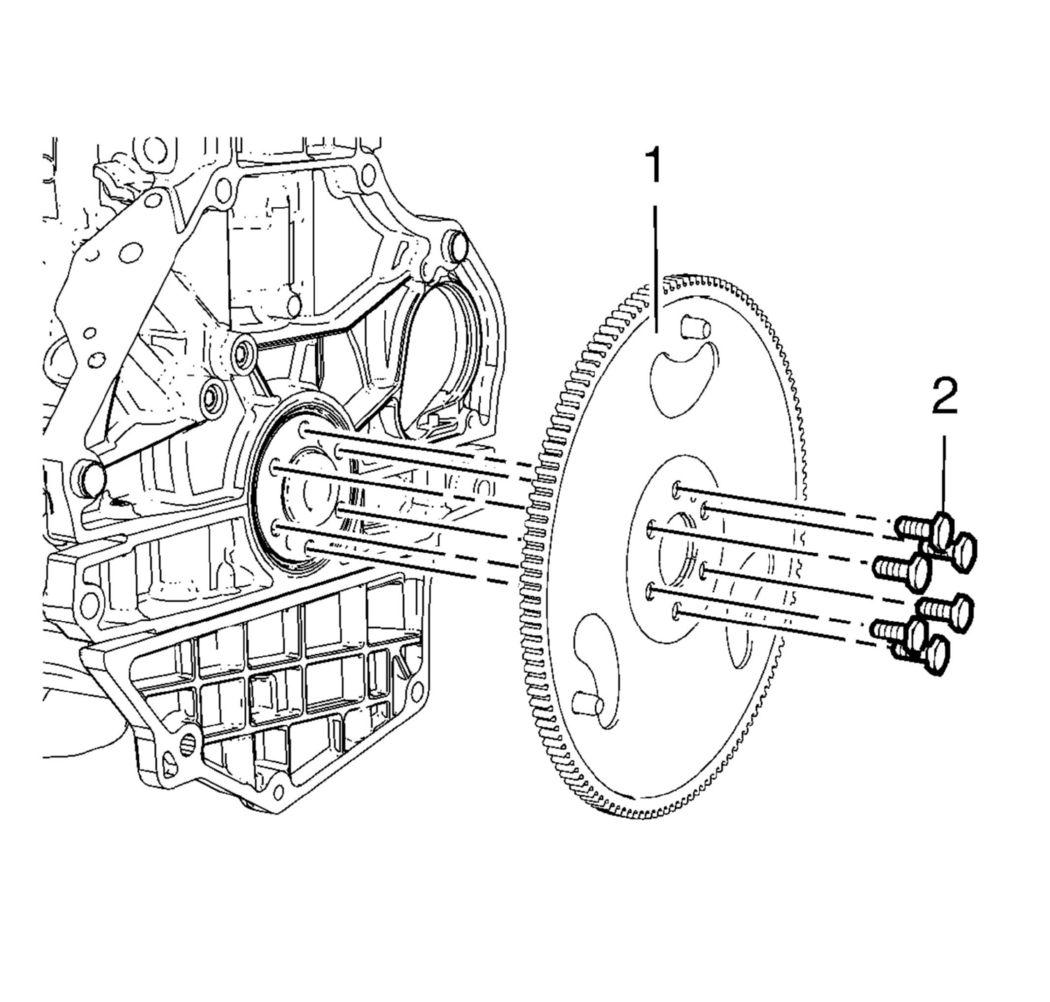

    Fig 1: Automatic Transmission Flex Plate And Bolts
    GM2191963Courtesy of GENERAL MOTORS COMPANY
  3. Install 6 NEW automatic transmission flex plate bolts (2).
  4. Install EN-652  flywheel holder (1) in order to fix the automatic transmission flex plate (2).

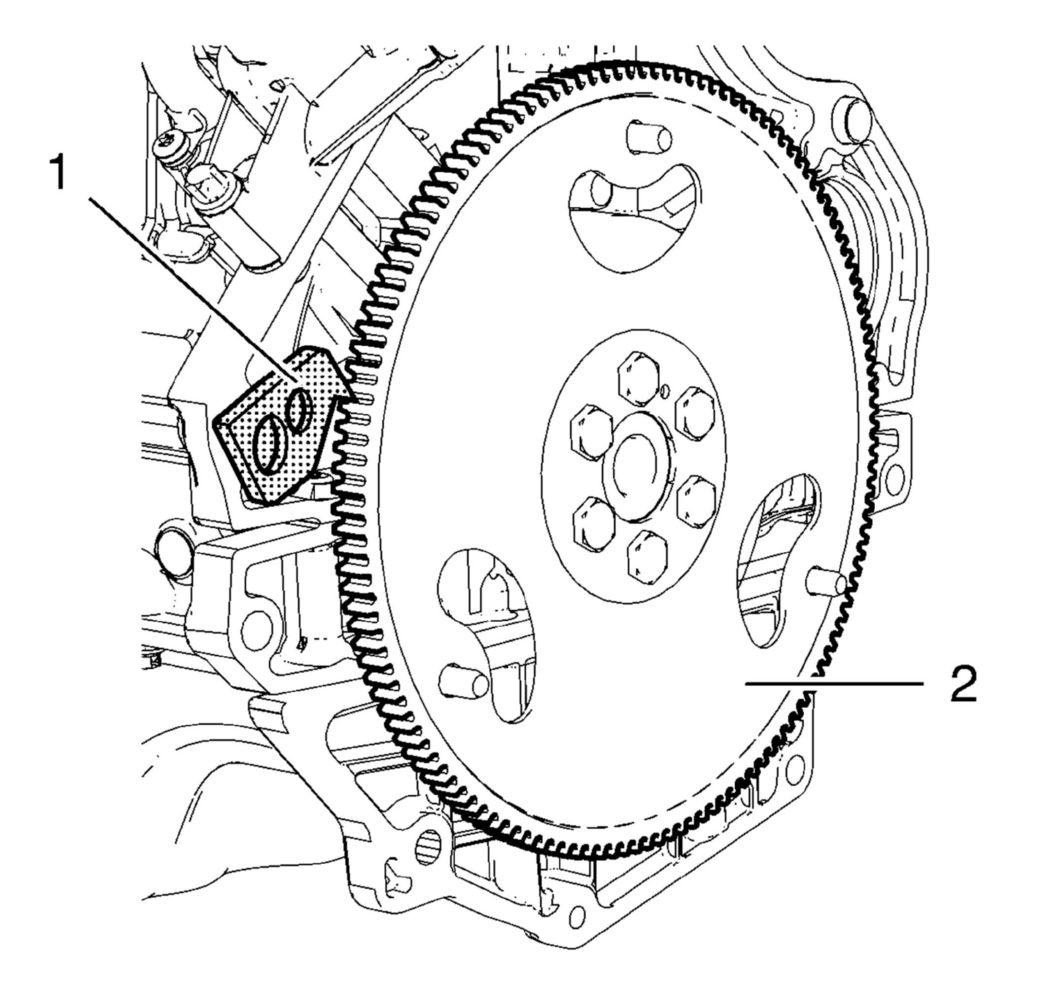

    Fig 2: Automatic Transmission Flex Plate
    GM2191962Courtesy of GENERAL MOTORS COMPANY
  5. Tighten the 6 automatic transmission flex plate bolts in a cross sequence to 35 N.m (26 lb ft).
    CAUTION: Refer to Fastener Caution .
    CAUTION: Refer to Torque-to-Yield Fastener Caution .
  6. Tighten the 6 automatic transmission flex plate bolts in a cross sequence to an additional 30°. Use EN-470-B  wrench.
  7. Tighten the 6 automatic transmission flex plate bolts in a cross sequence to an additional 15°. Use EN-470-B  wrench.
  8. Install automatic transmission. Refer to Transmission Replacement (1.4L LUV) .
  9. Close the hood.
