Water Pump Removal

  1. Remove and DISCARD the 2 front cover bolts (1).
    Fig 1: Identifying Water Pump Bolts
    GM3621312Courtesy of GENERAL MOTORS COMPANY
  2. Remove the 5 short water pump bolts (4) and the 3 long water pump bolts (3).

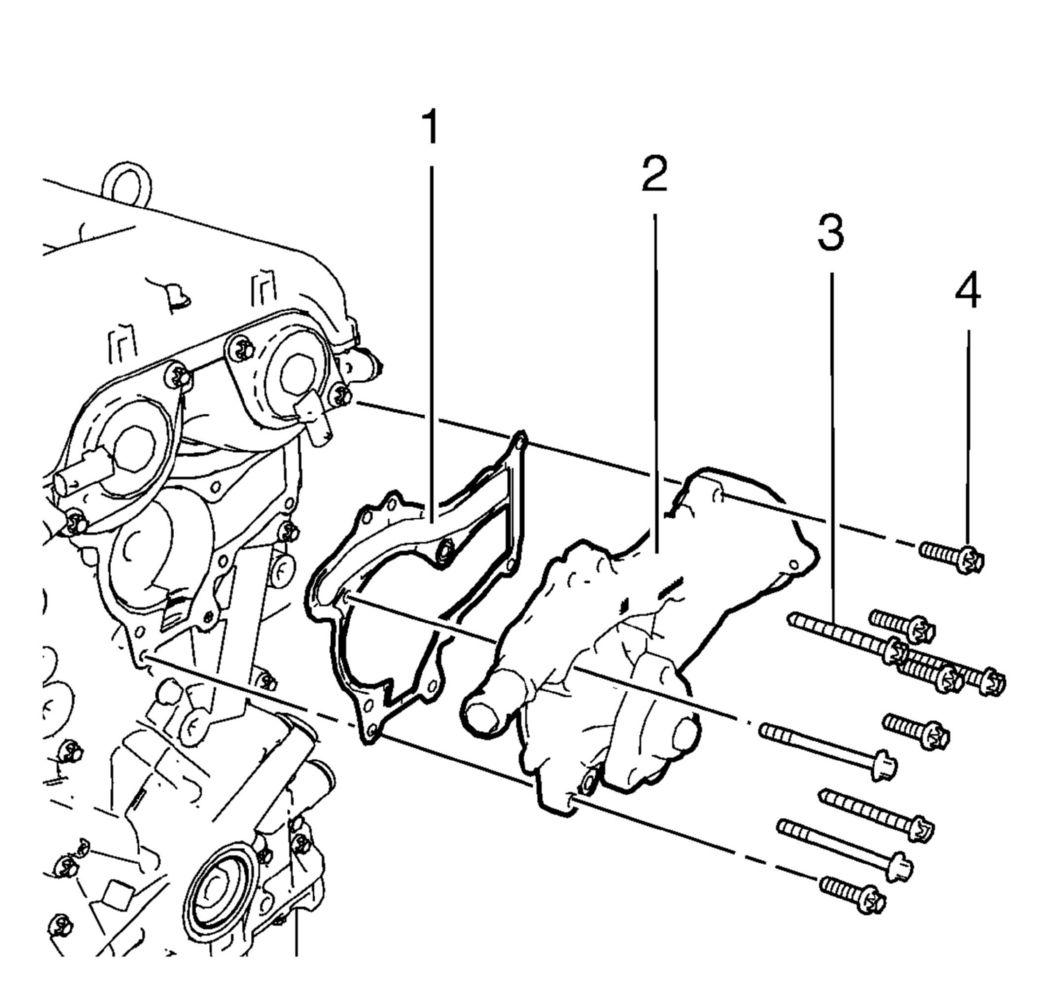

    Fig 2: Water Pump, Gasket And Bolts
    GM2190389Courtesy of GENERAL MOTORS COMPANY
  3. Remove the water pump (2).
  4. Remove and DISCARD the water pump gasket (1).
