Water Outlet Installation

  1. Clean the sealing surfaces.
  2. Install the water outlet (2) and a NEW water outlet seal ring (1).

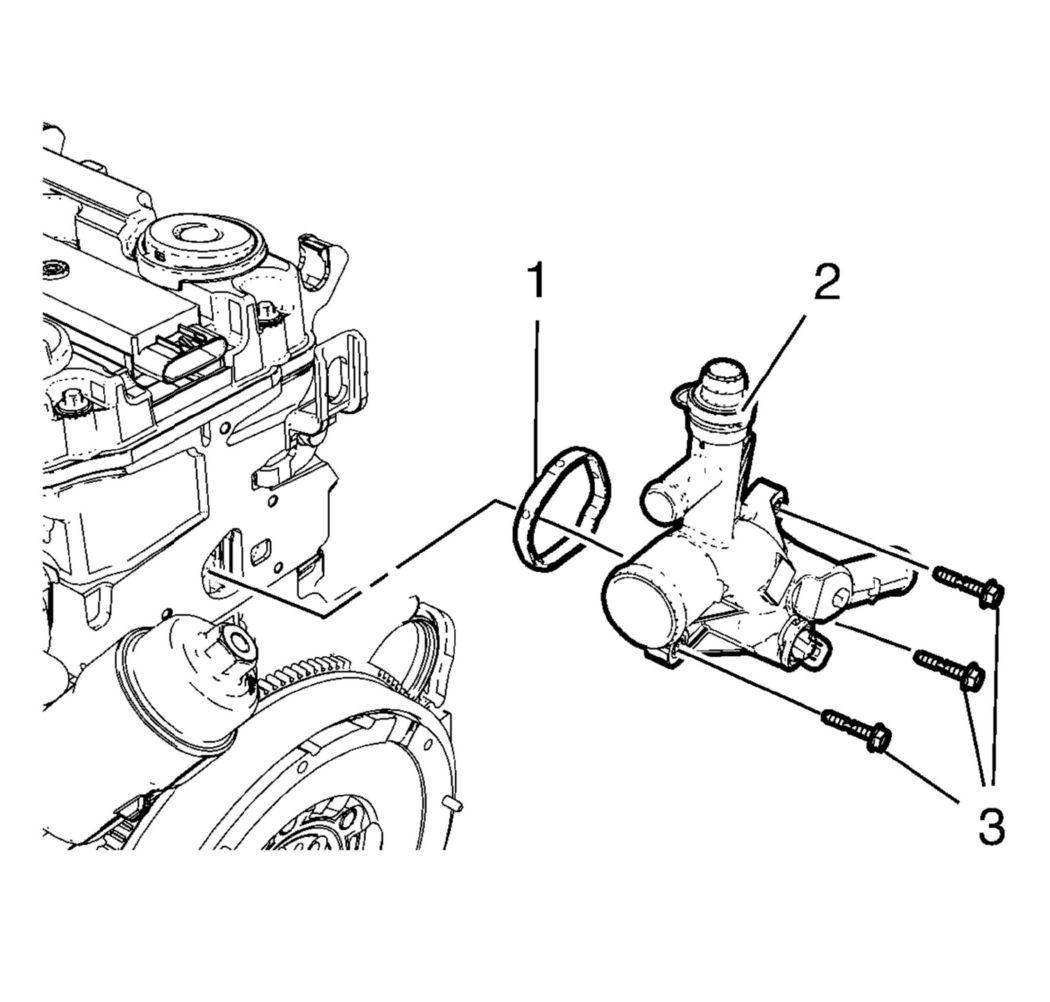

    Fig 1: Water Outlet, Bolts And Seal Ring
    GM2191835Courtesy of GENERAL MOTORS COMPANY
  3. Install the 3 water outlet bolts (3) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
